MDLS-20265 Series

Catalog

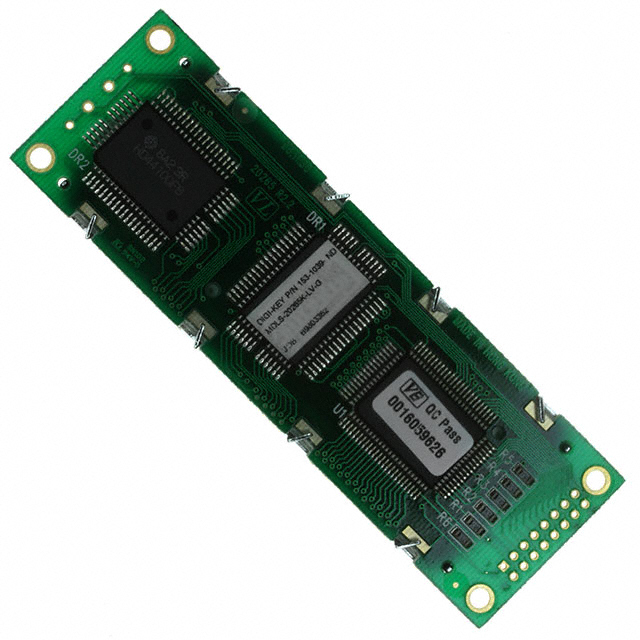

LCD MOD 40 DIG 20 X 2 REFLECTIVE

Part	Display Type	Background Color	Display Mode	Outline Length	Outline Height	Outline Width	Character Width	Character Height	Backlight	Text Color	Character Width (Dots)	Character Height (Dots)	Viewing Area Width	Viewing Area Length	Number of Characters	Operating Temperature (Max)	Operating Temperature (Min)	Display Rows	Display Columns	Voltage - Supply	Dot Size Width	Dot Size Height	Interface
Varitronix MDLS-20265-LV-G	STN - Super-Twisted Nematic	Green	Reflective	116 mm	6.7 mm	37 mm	3.2 mm	5.55 mm	Without Backlight	Black	5 Dots	8 Dots	18.6 mm	83 mm	40 characters	50 °C	-5 °C	2	20	5 VDC	0.6 mm	0.65 mm	Parallel
