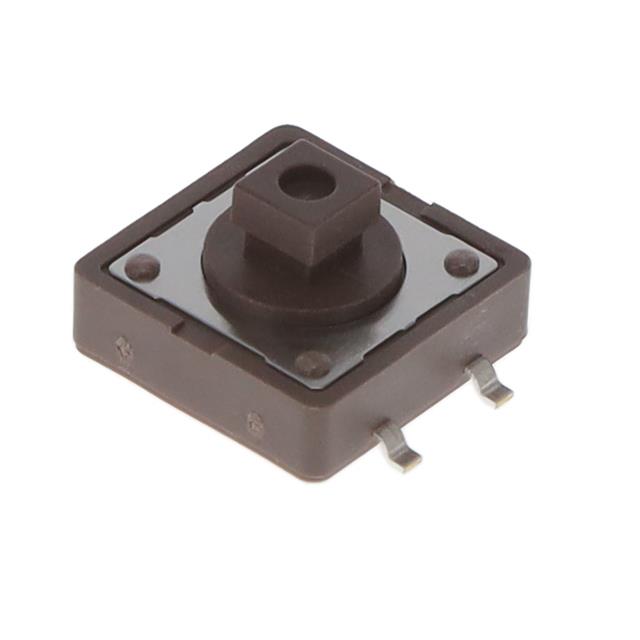

ADTSM2 Series
Manufacturer: APEM Inc.
Beta
⌘K
SWITCH TACTILE SPST-NO 0.05A 12V
| Part | Switch Travel | Actuator Material | Actuator Type | Actuator Height off PCB, Vertical | Actuator Orientation | Switch Function | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Contact Rating @ Voltage | Circuit | Operating Force | Illumination | Features | Outline [y] | Outline [x] | Termination Style | Actuator Height off PCB, Vertical [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 APEM Inc. | 0.35 mm | Polyamide (PA) Nylon | Standard | 8.5 mm | Top Actuated | Off-Mom | -25 °C | 70 °C | Surface Mount | 0.05 A 12 VDC | SPST-NO | 160 gf | Non-Illuminated | Tactile Feedback | 12 mm | 12 mm | Gull Wing | |
 APEM Inc. | 0.35 mm | Polyamide (PA) Nylon | Plunger for Cap | Top Actuated | Off-Mom | -25 °C | 70 °C | Surface Mount | 0.05 A 12 VDC | SPST-NO | 160 gf | Non-Illuminated | Tactile Feedback | 12 mm | 12 mm | Gull Wing | 7.3 mm | |
APEM Inc. | 0.35 mm | Polyamide (PA) Nylon | Standard | Top Actuated | Off-Mom | -25 °C | 70 °C | Surface Mount | 0.05 A 12 VDC | SPST-NO | 160 gf | Non-Illuminated | Tactile Feedback | 12 mm | 12 mm | Gull Wing | 4.3 mm | |
APEM Inc. | 0.35 mm | Polyamide (PA) Nylon | Standard | 8.5 mm | Top Actuated | Off-Mom | -25 °C | 70 °C | Surface Mount | 0.05 A 12 VDC | SPST-NO | 260 gf | Non-Illuminated | Tactile Feedback | 12 mm | 12 mm | Gull Wing |
