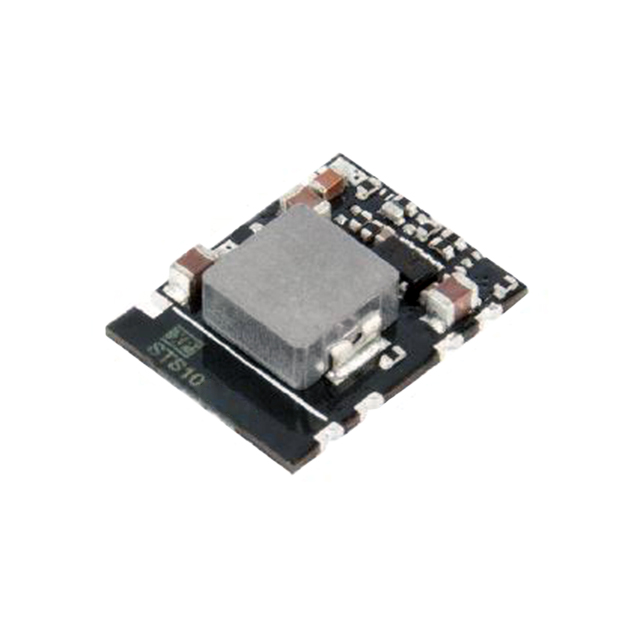

STS1005 Series

Manufacturer: XP Power

Catalog

DC DC CONVERTER 2.5V

Part	Current - Output (Max) [Max]	Features	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Number of Outputs	Voltage - Input (Max) [Max]	Efficiency	Package / Case	Applications	Mounting Type	Voltage - Output 1	Voltage - Input (Min) [Min]	Type
XP Power STS1005S2V5	1 A	Remote On/Off SCP	105 C	-40 °C	15.2 mm	0.6 "	11.8 mm	3.6 mm	0.46 in	0.14 in	1	5.5 V	94.5 %	10-SMD Module 6 Leads	ITE (Commercial)	Surface Mount	2.5 V	3.8 V	Non-Isolated PoL Module
XP Power STS1005S2V5-TR	1 A	Remote On/Off SCP	105 C	-40 °C	15.2 mm	0.6 "	11.8 mm	3.6 mm	0.46 in	0.14 in	1	5.5 V	94.5 %	10-SMD Module 6 Leads	ITE (Commercial)	Surface Mount	2.5 V	3.8 V	Non-Isolated PoL Module
XP Power STS1005S1V5-TR	1 A	Remote On/Off SCP	105 C	-40 °C	15.2 mm	0.6 "	11.8 mm	3.6 mm	0.46 in	0.14 in	1	5.5 V	92 %	10-SMD Module 6 Leads	ITE (Commercial)	Surface Mount	1.5 V	3 V	Non-Isolated PoL Module
XP Power STS1005S1V8	1 A	Remote On/Off SCP	105 C	-40 °C	15.2 mm	0.6 "	11.8 mm	3.6 mm	0.46 in	0.14 in	1	5.5 V	92.5 %	10-SMD Module 6 Leads	ITE (Commercial)	Surface Mount	1.8 V	3 V	Non-Isolated PoL Module
XP Power STS1005S1V2-TR	1 A	Remote On/Off SCP	105 C	-40 °C	15.2 mm	0.6 "	11.8 mm	3.6 mm	0.46 in	0.14 in	1	5.5 V	90.5 %	10-SMD Module 6 Leads	ITE (Commercial)	Surface Mount	1.2 V	3 V	Non-Isolated PoL Module
