824 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

CONN IC DIP SOCKET 24POS TIN

Part	Material Flammability Rating	Termination Post Length	Termination Post Length	Contact Resistance	Operating Temperature [Min]	Operating Temperature [Max]	Pitch - Mating	Pitch - Mating	Type	Type	Type	Number of Positions or Pins (Grid) [x]	Number of Positions or Pins (Grid) [y]	Number of Positions or Pins (Grid)	Contact Material - Mating	Mounting Type	Contact Material - Post [custom]	Contact Finish - Post	Housing Material	Termination	Features	Pitch - Post	Pitch - Post	Contact Finish Thickness - Post	Contact Finish - Mating	Contact Finish Thickness - Mating	Type [custom]	Type [custom]	Current Rating (Amps)	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Stripping Length	Length	Length	Height (Max) [z]	Height (Max) [z]	Operating Temperature	Material - Insulation	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Termination Style	Number of Levels	Number of Positions	Terminal - Width [y]
TE Connectivity AMP Connectors 824-AG32D-LF	UL94 V-0	0.125 in	3.18 mm	10 mOhm	-55 C	105 ░C	0.1 "	2.54 mm	7.62 mm	0.3 in	DIP	12	2	24	Beryllium Copper	Through Hole	Copper	Tin	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Solder	Open Frame	0.1 in	2.54 mm
TE Connectivity AMP Connectors 824-AG11D-ESL-LF	UL94 V-0	0.125 in	3.18 mm	10 mOhm	-55 C	105 ░C	0.1 "	2.54 mm			DIP	12	2	24	Beryllium Copper	Through Hole	Copper	Gold	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Solder	Open Frame	0.1 in	2.54 mm	Flash	Gold	Flash	15.24 mm	0.6 in

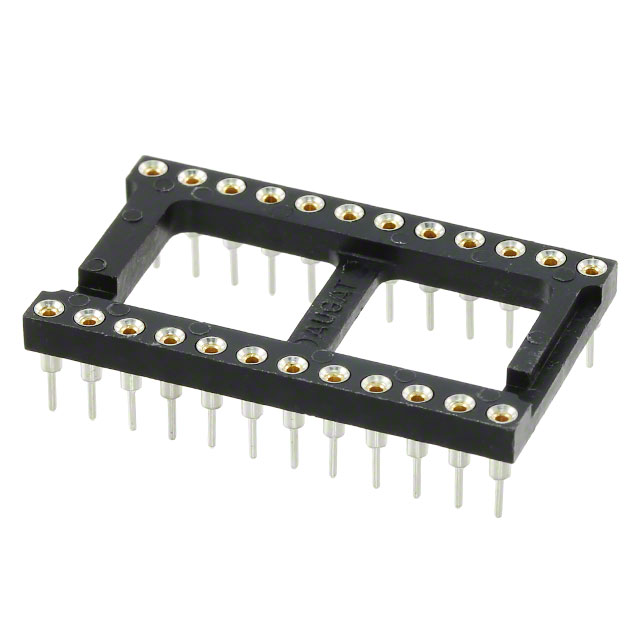

TE Connectivity AMP Connectors 824-AG11D-ES	UL94 V-0	0.125 in	3.18 mm	10 mOhm	-55 C	105 ░C	0.1 "	2.54 mm			DIP	12	2	24	Copper Alloy	Through Hole	Copper Alloy	Tin-Lead	Polyester	Solder	Open Frame	0.1 in	2.54 mm		Gold		15.24 mm	0.6 in	3 A
TE Connectivity AMP Connectors 824-AG66D	UL94 V-0	0.125 in	3.18 mm	10 mOhm	-55 C	105 ░C	0.1 "	2.54 mm		0.4 in	DIP	12	2	24	Copper Alloy	Through Hole	Copper Alloy	Tin-Lead	Polyester	Solder	Open Frame	0.1 in	2.54 mm		Gold					2.03 µm	80 µin

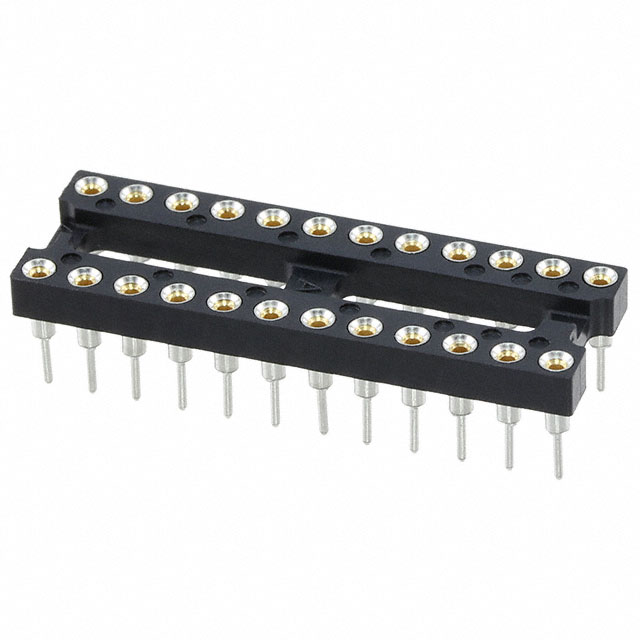

TE Connectivity AMP Connectors 824-AG31D-ESL-LF	UL94 V-0	0.125 in	3.18 mm	10 mOhm	-55 C	105 ░C	0.1 "	2.54 mm	7.62 mm	0.3 in	DIP	12	2	24	Beryllium Copper	Through Hole	Copper	Gold	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Solder	Open Frame	0.1 in	2.54 mm	Flash	Gold	Flash
TE Connectivity AMP Connectors 824-BU	UL94 V-2										NEMA Open Construction					Direct Mount																17 mm	1.75 in	44.45 mm	1.95 in	49.53 mm	125 °C	Nylon Polyamide (PA)	12	1/0	Tubular Screw	1	2	29.2 mm
TE Connectivity AMP Connectors 824-AG10D	UL94 V-0	0.125 in	3.18 mm	10 mOhm	-55 C	105 ░C	0.1 "	2.54 mm			DIP	12	2	24	Copper Alloy	Through Hole			Polyester	Solder	Open Frame	0.1 in	2.54 mm		Gold		15.24 mm	0.6 in	3 A
TE Connectivity AMP Connectors 824-AG30D	UL94 V-0	0.125 in	3.18 mm	10 mOhm	-55 C	105 ░C	0.1 "	2.54 mm	7.62 mm	0.3 in	DIP	12	2	24	Copper Alloy	Through Hole			Polyester	Solder	Open Frame	0.1 in	2.54 mm		Gold				3 A
