69273 Series

Catalog

CONN HEADER R/A 4POS 2.54MM

Part	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Current Rating (Amps)	Termination	Insulation Color	Insulation Height	Insulation Height	Features	Style	Shrouding	Number of Rows	Contact Finish - Mating	Contact Length - Post [x]	Contact Length - Post [x]	Number of Positions	Pitch - Mating	Pitch - Mating	Connector Type	Fastening Type	Number of Positions Loaded	Mounting Type	Contact Material	Material Flammability Rating	Contact Type	Contact Shape	Insulation Material	Operating Temperature [Max]	Operating Temperature [Min]	Contact Length - Post
Amphenol ICC (FCI) 69273-002LF	30 Áin	0.76 Ám	2.5 A	Solder	White	8.13 mm	0.32 in	Board Guide Ground Pin	Board to Cable/Wire	Shrouded - 4 Wall	1	Gold or Gold GXT™	0.15 in	3.81 mm	4	0.1 in	2.54 mm	Header	Latch Holder	All	Through Hole Right Angle	Copper Alloy	UL94 V-0	Male Pin	Square	Thermoplastic	85 °C	-40 °C
Amphenol ICC (FCI) 69273-102LF	30 Áin	0.76 Ám	2.5 A	Solder	White	8.13 mm	0.32 in	Board Guide Ground Pin	Board to Cable/Wire	Shrouded - 4 Wall	1	Gold or Gold GXT™	0.11 in		4	0.1 in	2.54 mm	Header	Latch Holder	All	Through Hole Right Angle	Copper Alloy	UL94 V-0	Male Pin	Square	Thermoplastic	85 °C	-40 °C	2.79 mm
Amphenol ICC (FCI) 69273-104	30 Áin	0.76 Ám	2.5 A	Solder	Black	8.13 mm	0.32 in	Board Guide Ground Pin	Board to Cable/Wire	Shrouded - 4 Wall	1	Gold or Gold GXT™	0.11 in		4	0.1 in	2.54 mm	Header	Latch Holder	All	Through Hole Right Angle	Copper Alloy	UL94 V-0	Male Pin	Square	Thermoplastic	85 °C	-40 °C	2.79 mm
Amphenol ICC (FCI) 69273-034LF	30 Áin	0.76 Ám	2.5 A	Solder	Black	8.13 mm	0.32 in	Board Guide Ground Pin	Board to Cable/Wire	Shrouded - 4 Wall	1	Gold or Gold GXT™	0.15 in	3.81 mm	4	0.1 in	2.54 mm	Header	Latch Holder	All	Through Hole Right Angle	Copper Alloy	UL94 V-0	Male Pin	Square	Thermoplastic	85 °C	-40 °C
Amphenol ICC (FCI) 69273-109	30 Áin	0.76 Ám	2.5 A	Solder	Gray	8.13 mm	0.32 in	Board Guide Ground Pin	Board to Cable/Wire	Shrouded - 4 Wall	1	Gold or Gold GXT™	0.11 in		4	0.1 in	2.54 mm	Header	Latch Holder	All	Through Hole Right Angle	Copper Alloy	UL94 V-0	Male Pin	Square	Thermoplastic	85 °C	-40 °C	2.79 mm

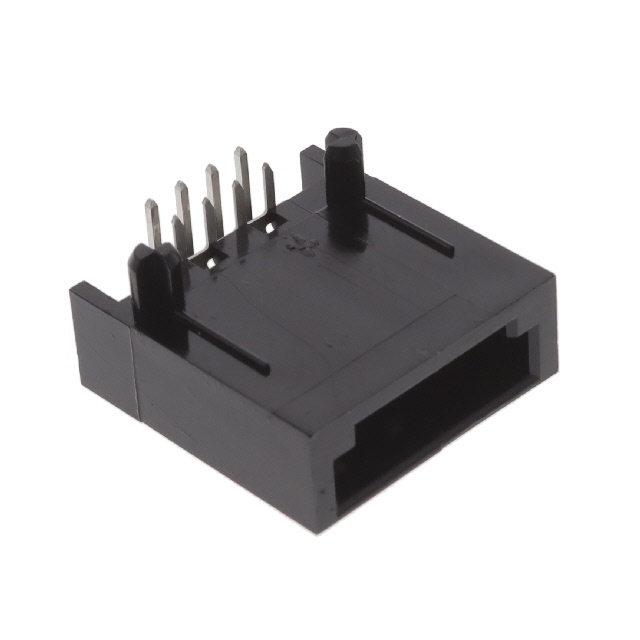

Amphenol ICC (FCI) 69273-104LF	30 Áin	0.76 Ám	2.5 A	Solder	Black	8.13 mm	0.32 in	Board Guide Ground Pin	Board to Cable/Wire	Shrouded - 4 Wall	1	Gold or Gold GXT™	0.11 in		4	0.1 in	2.54 mm	Header	Latch Holder	All	Through Hole Right Angle	Copper Alloy	UL94 V-0	Male Pin	Square	Thermoplastic	85 °C	-40 °C	2.79 mm
Amphenol ICC (FCI) 69273-009	30 Áin	0.76 Ám	2.5 A	Solder	Gray	8.13 mm	0.32 in	Board Guide Ground Pin	Board to Cable/Wire	Shrouded - 4 Wall	1	Gold or Gold GXT™	0.15 in	3.81 mm	4	0.1 in	2.54 mm	Header	Latch Holder	All	Through Hole Right Angle	Copper Alloy	UL94 V-0	Male Pin	Square	Thermoplastic	85 °C	-40 °C
