SSRH24N Series

Manufacturer: KEMET

Catalog

INDUCTOR: WIRE; THT; 47MH; 1.6A; 327MΩ; 250VAC; -25÷120°C

Part	DC Resistance (DCR) (Max)	Inductance @ Frequency	Height (Max) [z]	Voltage Rating - AC	Number of Lines	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Current Rating (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Package / Case	DC Resistance (DCR) (Max) [Max]	Height (Max) [Max] [z]	Height (Max) [Max] [z]
KEMET SSRH24NH-16470	327 mOhm	47 mH	0.709 in 18 mm	250 V	2	1.004 in	25.5 mm	25.5 mm	1.004 "	1.6 A	120 °C	-25 °C	Through Hole	Vertical 4 PC Pin
KEMET SSRH24NV-20310		31 mH		250 V	2	1.004 in	25.5 mm	25.5 mm	1.004 "	2 A	120 °C	-25 °C	Through Hole	Vertical 4 PC Pin	214 mOhm	31 mm	1.22 in
KEMET SSRH24NVS-12500		50 mH		250 V	2	1.004 in	25.5 mm	25.5 mm	1.004 "	1.2 A	120 °C	-25 °C	Through Hole	Vertical 4 PC Pin		31 mm	1.22 in
KEMET SSRH24NVS-45041		4.1 mH 10 kHz		250 V	2	1.004 in	25.5 mm	25.5 mm	1.004 "		120 °C	-25 °C	Through Hole	Vertical 4 PC Pin	41 mOhm	31 mm	1.22 in
KEMET SSRH24NHS-30092	79 mOhm	9.2 mH	0.709 in 18 mm	250 V	2	1.004 in	25.5 mm	25.5 mm	1.004 "	3 A	120 °C	-25 °C	Through Hole	Vertical 4 PC Pin
KEMET SSRH24NHS-16320		32 mH	0.709 in 18 mm	250 V	2	1.004 in	25.5 mm	25.5 mm	1.004 "	1.6 A	120 °C	-25 °C	Through Hole	Vertical 4 PC Pin	265 mOhm

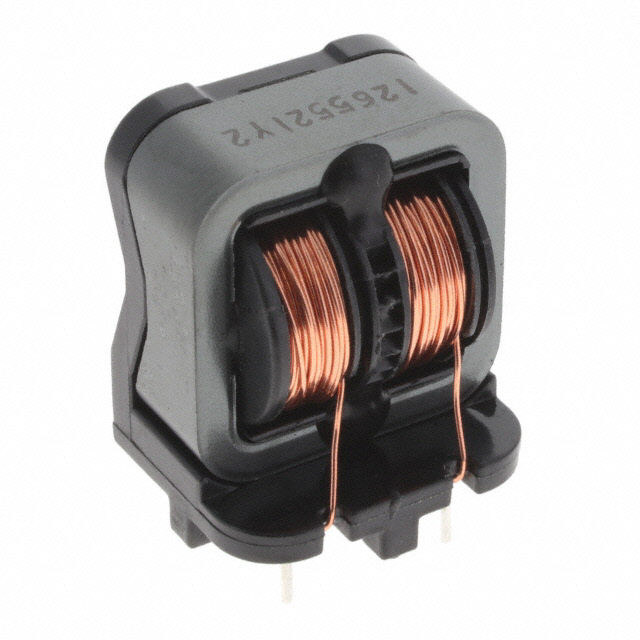

KEMET SSRH24NV-12655		65.5 mH		250 V	2	1.004 in	25.5 mm	25.5 mm	1.004 "	1.2 A	120 °C	-25 °C	Through Hole	Vertical 4 PC Pin	475 mOhm	31 mm	1.22 in
KEMET SSRH24NH-40069	57 mOhm	6.9 mH	0.709 in 18 mm	250 V	2	1.004 in	25.5 mm	25.5 mm	1.004 "	4 A	120 °C	-25 °C	Through Hole	Vertical 4 PC Pin
KEMET SSRH24NH-25205	145 mOhm	20.5 mH	0.709 in 18 mm	250 V	2	1.004 in	25.5 mm	25.5 mm	1.004 "	2.5 A	120 °C	-25 °C	Through Hole	Vertical 4 PC Pin
KEMET SSRH24NHS-35080		8 mH 10 kHz	0.709 in 18 mm	250 V	2	1.004 in	25.5 mm	25.5 mm	1.004 "	3.5 A	120 °C	-25 °C	Through Hole	Vertical 4 PC Pin	74 mOhm
