5645 Series

Manufacturer: BRADY

Catalog

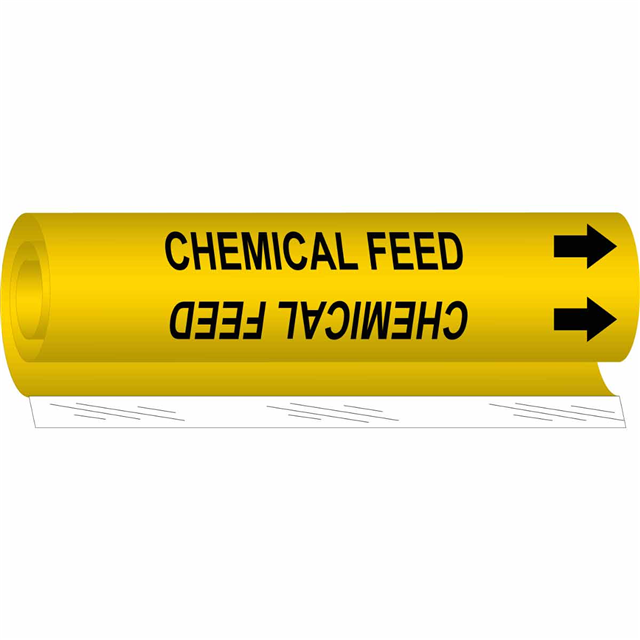

B689 5645-I BLK/YEL STYLE I

Part	Outside Pipe Diameter (Max) [diameter]	Outside Pipe Diameter (Max) [diameter]	Print Type	Outside Pipe Diameter (Min)	Outside Pipe Diameter (Min) [Min]	Location	Legend (Symbol Only)	Shape	Mounting Type	Material - Body	Color - Legend	Color - Background	Language	Length	Length	Arrangement	Application Specifics	Width	Width	Legend (Text)	Features	Applications	Outside Pipe Diameter (Max) [Max] [diameter]	Outside Pipe Diameter (Max) [Max] [diameter]	Width [x]	Width [x]	Outside Pipe Diameter (Min) [Min]	Length [x]	Length [x]	Outside Pipe Diameter (Max) [Max]	Outside Pipe Diameter (Max) [Max]
BRADY 5645-I	1.5 in	38.1 mm	Pre-Printed	60.33 mm	2.375 in	Outdoor	Directional Arrow	Rectangle	Snap On	Plastic	Black	Yellow	63000 A 69000 A	9 in	228.6 mm	Symbol and Text	Directionality	8 in	203.2 mm	Chemical Feed	Abrasion Resistant Chemical Resistant Humidity Resistant UV Resistant Water Resistant Weather Resistant	Pipe
BRADY 5645-O			Pre-Printed	34.93 mm	1.375 in	Outdoor	Directional Arrow	Rectangle	Snap On	Plastic	Black	Yellow	63000 A 69000 A	8 in	203.2 mm	Symbol and Text	Directionality			Chemical Feed	Abrasion Resistant Chemical Resistant Humidity Resistant UV Resistant Water Resistant Weather Resistant	Pipe	0.5 in	12.7 mm	127 mm	127 mm
BRADY 5645-II			Pre-Printed		7.875 in	Outdoor	Directional Arrow	Rectangle	Snap On	Plastic	Black	Yellow	63000 A 69000 A			Symbol and Text	Notice	12 in	304.8 mm	Chemical Feed	Chemical Resistant	Pipe					200.03 mm	660.4 mm	26 in	63.5 mm	2.5 in
