LNJ810 Series

Catalog

LED ORANGE SV CASE TYPE SMD R/A

Part	Mounting Type	Configuration	Millicandela Rating	Height (Max) [Max]	Voltage - Forward (Vf) (Typ)	Wavelength - Peak	Package / Case	Lens Size [x]	Lens Size [y]	Current - Test	Supplier Device Package	Lens Style	Size / Dimension [y]	Size / Dimension [x]

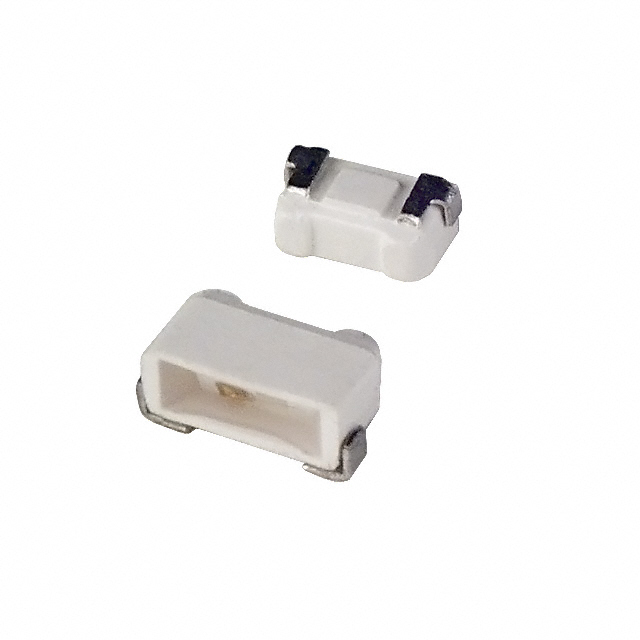

Panasonic Industrial Automation Sales LNJ810C67RA	Surface Mount Right Angle	Standard	30 mcd	1.2 mm	1.95 V	615 nm	2-SMD J-Lead	2 mm	0.7 mm	10 mA	SV (Side View) -Case Type	Rectangle with Flat Top	1.2 mm	2.2 mm

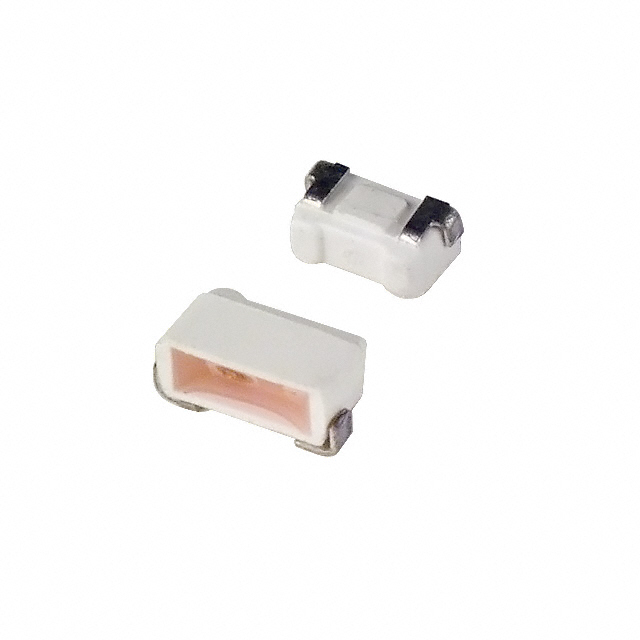

Panasonic Industrial Automation Sales LNJ810L6SRA	Surface Mount Right Angle	Standard	1.8 mcd	1.2 mm	1.93 V	610 nm	2-SMD J-Lead	2 mm	0.7 mm	10 mA	SV (Side View) -Case Type	Rectangle with Flat Top	1.2 mm	2.2 mm

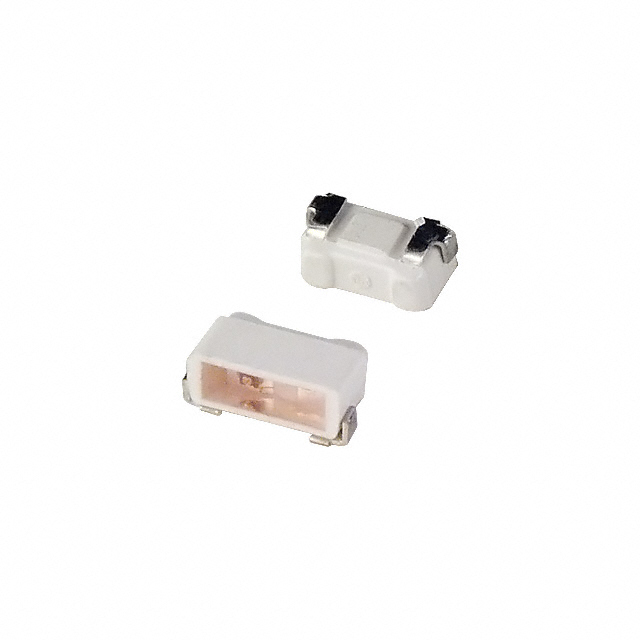

Panasonic Industrial Automation Sales LNJ810L6DRA	Surface Mount Right Angle	Standard	2.5 mcd	1.2 mm	1.93 V	630 nm	2-SMD J-Lead	2 mm	0.7 mm	10 mA	SV (Side View) -Case Type	Rectangle with Flat Top	1.2 mm	2.2 mm
Panasonic Industrial Automation Sales LNJ810C63RA	Surface Mount Right Angle	Standard	48 mcd	1.2 mm	2.03 V	630 nm	2-SMD J-Lead	2 mm	0.7 mm	10 mA	SV (Side View) -Case Type	Rectangle with Flat Top	1.2 mm	2.2 mm
