831607 Series
Manufacturer: Crouzet
Beta
⌘K

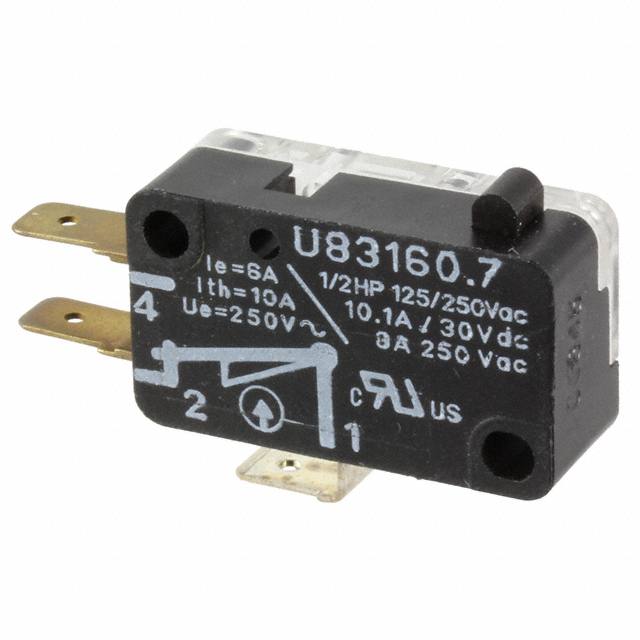

SWITCH SNAP ACTION SPDT 6A 250V
| Part | Termination Style | Switch Function | Operating Position | Operating Position | Operating Force | Mechanical Life | Electrical Life | Current Rating (Amps) | Actuator Type | Circuit | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Release Force | Overtravel [custom] | Overtravel [custom] | Voltage Rating - AC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Crouzet | Quick Connect | On-Mom | 0.583 in | 14.8 mm | 408 gf | 10000000 Cycles | 100000 Cycles | 6 A | Round (Pin Plunger) | SPDT | Chassis Mount | 85 °C | -40 C | 153 gf | 0.051 " | 1.3 mm | 250 V |
 Crouzet | Quick Connect | On-Mom | 0.583 in | 14.8 mm | 408 gf | 10000000 Cycles | 100000 Cycles | 6 A | Round (Pin Plunger) | SPST-NC | Chassis Mount | 85 °C | -40 C | 153 gf | 0.051 " | 1.3 mm | 250 V |
