5450/3 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

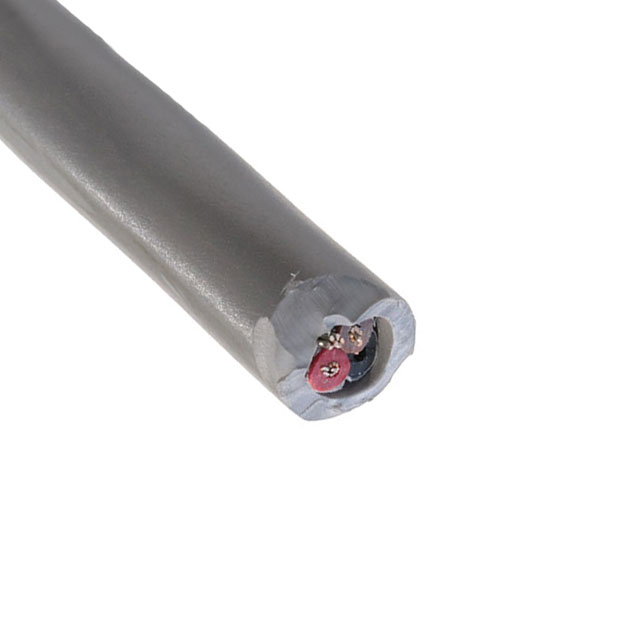

CABLE 3COND 14AWG BLK SHLD 1000'
| Part | Jacket (Insulation) Material | Conductor Material | Ratings | Number of Conductors | Shield Type | Operating Temperature [Min] | Operating Temperature [Max] | Jacket Color | Cable Type | Usage | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Insulation | Length | Length | Shield Coverage | Features | Shield Material | Voltage | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Wire Gauge | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ALPHA WIRE | Poly-Vinyl Chloride (PVC) | Copper Tinned | ISO 10993 UL Style 2501 | 3 | Foil | -30 ░C | 105 ░C | Black | Multi-Conductor | Communication Control | 41 | 30 AWG | 10.97 mm | 0.432 in | Poly-Vinyl Chloride (PVC) | 1000 ft | 304.8 m | 100 % | Biological Compatibility Drain Wire Rip Cord | Aluminum | 600 V | 1.6 mm | 0.063 in | 13.5 AWG | ||
 ALPHA WIRE | Poly-Vinyl Chloride (PVC) | Copper Tinned | ISO 10993 UL Style 2501 | 3 | Foil | -30 ░C | 105 ░C | Slate | Multi-Conductor | Communication Control | 41 | 30 AWG | 10.97 mm | 0.432 in | Poly-Vinyl Chloride (PVC) | 1000 ft | 304.8 m | 100 % | Biological Compatibility Drain Wire Rip Cord | Aluminum | 600 V | 1.6 mm | 0.063 in | 13.5 AWG | ||
 ALPHA WIRE | Poly-Vinyl Chloride (PVC) | Copper Tinned | ISO 10993 UL Style 2501 | 3 | Foil | -30 ░C | 105 ░C | Slate | Multi-Conductor | Communication Control | 41 | 30 AWG | 10.97 mm | 0.432 in | Poly-Vinyl Chloride (PVC) | 100 % | Biological Compatibility Drain Wire Rip Cord | Aluminum | 600 V | 1.6 mm | 0.063 in | 13.5 AWG | 500 ' | 152.4 m | ||
ALPHA WIRE | Poly-Vinyl Chloride (PVC) | Copper Tinned | ISO 10993 UL Style 2501 | 3 | Foil | -30 ░C | 105 ░C | Slate | Multi-Conductor | Communication Control | 41 | 30 AWG | 10.97 mm | 0.432 in | Poly-Vinyl Chloride (PVC) | 100 % | Biological Compatibility Drain Wire Rip Cord | Aluminum | 600 V | 1.6 mm | 0.063 in | 13.5 AWG |
