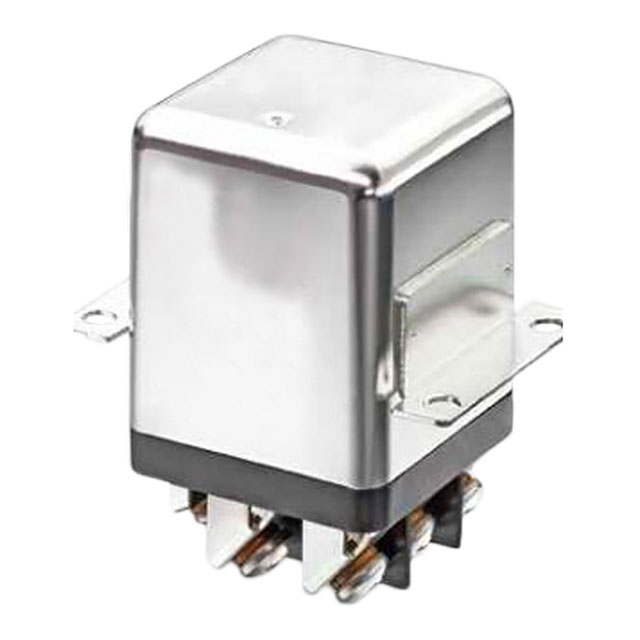

FC-325 Series

Manufacturer: TE Connectivity Aerospace, Defense and Marine

Catalog

RELAY GEN PURPOSE 3PST 25A 28V

Part	Coil Voltage	Relay Type	Release Time	Coil Resistance	Coil Current	Seal Rating	Contact Form	Contact Form	Contact Form	Must Operate Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Termination Style	Coil Type	Operate Time	Must Release Voltage	Contact Rating (Current)
TE Connectivity Aerospace, Defense and Marine FC-325-2	28 VDC	General Purpose	10 ms	160 Ohms	175 mA	Sealed - Hermetically	DM	3PST-NO	3 Form X	18 VDC	125 °C	-70 °C	Chassis Mount	Solder Hook	Non Latching	20 ms	1.5 VDC	25 A
TE Connectivity Aerospace, Defense and Marine FC-325-SY3	28 VDC	General Purpose	10 ms	160 Ohms	175 mA	Sealed - Hermetically	DM	3PST-NO	3 Form X	18 VDC	125 °C	-70 °C	Chassis Mount	Screw Terminal	Non Latching	20 ms	1.5 VDC	25 A
TE Connectivity Aerospace, Defense and Marine FC-325-4	115 VAC	General Purpose	50 ms	209 Ohms	550 mA	Sealed - Hermetically	DM	3PST-NO	3 Form X	95 VAC	125 °C	-70 °C	Chassis Mount	Screw Terminal	Non Latching	25 ms	5 VAC	25 A
TE Connectivity Aerospace, Defense and Marine FC-325-CW4	28 VDC	General Purpose	10 ms	160 Ohms	175 mA	Sealed - Hermetically	DM	3PST-NO	3 Form X	18 VDC	125 °C	-70 °C	Chassis Mount	Solder Hook	Non Latching	20 ms	1.5 VDC	25 A
TE Connectivity Aerospace, Defense and Marine FC-325-CW8	115 VAC	General Purpose	50 ms	209 Ohms	550 mA	Sealed - Hermetically	DM	3PST-NO	3 Form X	95 VAC	125 °C	-70 °C	Chassis Mount	Solder Hook	Non Latching	25 ms	5 VAC	25 A
TE Connectivity Aerospace, Defense and Marine FC-325-8	28 VDC	General Purpose	10 ms	160 Ohms	175 mA	Sealed - Hermetically	DM	3PST-NO	3 Form X	18 VDC	125 °C	-70 °C	Chassis Mount	Screw Terminal	Non Latching	20 ms	1.5 VDC	25 A
TE Connectivity Aerospace, Defense and Marine FC-325-SY8	115 VAC	General Purpose	50 ms	209 Ohms	550 mA	Sealed - Hermetically	DM	3PST-NO	3 Form X	95 VAC	125 °C	-70 °C	Chassis Mount	Screw Terminal	Non Latching	25 ms	5 VAC	25 A
TE Connectivity Aerospace, Defense and Marine FC-325-SY9	115 VAC	General Purpose	50 ms	192 Ohms	600 mA	Sealed - Hermetically	DM	3PST-NO	3 Form X	95 VAC	125 °C	-70 °C	Chassis Mount	Screw Terminal	Non Latching	25 ms	5 VAC	25 A
TE Connectivity Aerospace, Defense and Marine FC-325-6	115 VAC	General Purpose	50 ms	192 Ohms	600 mA	Sealed - Hermetically	DM	3PST-NO	3 Form X	95 VAC	125 °C	-70 °C	Chassis Mount	Screw Terminal	Non Latching	25 ms	5 VAC	25 A
