TPS7A6201-Q1 Series

Automotive 300-mA, off-battery (40-V), low-IQ, adjustable low-dropout voltage regulator with enable

Catalog

Automotive 300-mA, off-battery (40-V), low-IQ, adjustable low-dropout voltage regulator with enable

Part	Protection Features	Supplier Device Package	Grade	Package / Case	Number of Regulators	Control Features	Output Type	Voltage - Output (Max) [Max]	Current - Output	PSRR [Min]	PSRR [Max]	Output Configuration	Voltage - Output (Min/Fixed)	Qualification	Voltage Dropout (Max) [Max]	Mounting Type	Supplied Contents	Voltage - Input [Min]	Voltage - Input [Max]	Utilized IC / Part	Regulator Type	Board Type	Channels per IC	Voltage - Output [Max]	Voltage - Output [Min]
Texas Instruments TPS7A6201QKTTRQ1	Over Current Over Temperature Short Circuit Under Voltage Lockout (UVLO)	TO-263 (DDPAK-5)	Automotive	D2PAK (5 Leads + Tab) TO-263-6 TO-263BA	1	Enable	Adjustable	7 V	300 mA	60 dB	30 dB	Positive	2.5 V	AEC-Q100	0.5 V	Surface Mount

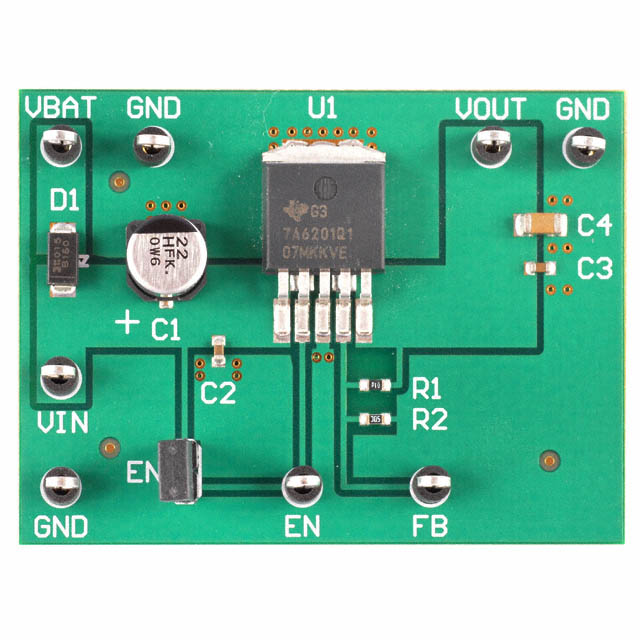

Texas Instruments TPS7A6201EVM									300 mA								Board(s)	4 V	40 V	TPS7A6201	Positive Adjustable	Fully Populated	1 - Single	7 V	2.5 V

Catalog

Automotive 300-mA, off-battery (40-V), low-IQ, adjustable low-dropout voltage regulator with enable

Key Features

• AEC-Q100 qualified for automotive applications:Temperature grade 1: –40°C to 125°C, TAJunction Temperature: –40C to 150C, TJLow dropout voltage:300 mV at IOUT= 150 mA7-V to 40-V wide input voltage range with up to 45-V transients300-mA maximum output currentUltra-low quiescent current:IQUIESCENT= 25 µA (typical) at light loadsISLEEP< 2 µA when EN = Low2.5-V to 7-V adjustable output voltageLow-ESR ceramic output stability capacitorIntegrated fault protection:Short-circuit and overcurrent protectionThermal shutdownLow input voltage trackingThermally enhanced power package:5-pin TO-263 (KTT, D2PAK)AEC-Q100 qualified for automotive applications:Temperature grade 1: –40°C to 125°C, TAJunction Temperature: –40C to 150C, TJLow dropout voltage:300 mV at IOUT= 150 mA7-V to 40-V wide input voltage range with up to 45-V transients300-mA maximum output currentUltra-low quiescent current:IQUIESCENT= 25 µA (typical) at light loadsISLEEP< 2 µA when EN = Low2.5-V to 7-V adjustable output voltageLow-ESR ceramic output stability capacitorIntegrated fault protection:Short-circuit and overcurrent protectionThermal shutdownLow input voltage trackingThermally enhanced power package:5-pin TO-263 (KTT, D2PAK)

Description

The TPS7A6201-Q1 is a low-dropout linear voltage regulator designed for low power consumption and quiescent current less than 25 µA in light-load applications. This device features an integrated over-current protection, and is designed to achieve stable operation even with low-ESR ceramic output capacitors. The output voltage can be programmed using external resistors. The low-voltage tracking feature allows for a smaller input capacitor and can possibly eliminate the need of using a boost converter during cold crank conditions. Because of these features, this device is well suited in power supplies for various automotive applications. The TPS7A6201-Q1 is a low-dropout linear voltage regulator designed for low power consumption and quiescent current less than 25 µA in light-load applications. This device features an integrated over-current protection, and is designed to achieve stable operation even with low-ESR ceramic output capacitors. The output voltage can be programmed using external resistors. The low-voltage tracking feature allows for a smaller input capacitor and can possibly eliminate the need of using a boost converter during cold crank conditions. Because of these features, this device is well suited in power supplies for various automotive applications.
