093826 Series
Manufacturer: Molex
Beta
⌘K

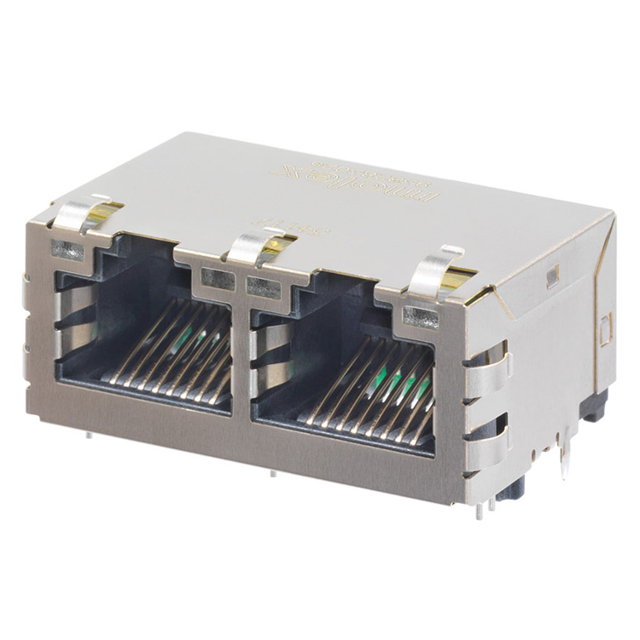

CONN RJ-45 F/F 8/8 POS 1.27MM SOLDER RA THRU-HOLE 28 TERMINAL 2 PORT TRAY
| Part | Features | Shielding | Shield Material | LED Color | Housing Material | Height Above Board [z] | Height Above Board [z] | Applications | Contact Finish | Operating Temperature [Max] | Operating Temperature [Min] | Tab Direction | Number of Ports | Number of Rows | Contact Material | Connector Type | Orientation | Termination | Mounting Type | Number of Cores per Jack | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | Board Guide | Shielded EMI Finger | Brass | Green Yellow | Liquid Crystal Polymer (LCP) | 14.1 mm | 0.555 in | 10/100/1000 Base-T AutoMDIX | Gold | 70 °C | 0 °C | Up | 2 | 1 | Phosphor Bronze | RJ45 | 90 ° | Solder | Through Hole | 8 | |
Molex | Board Guide | Shielded EMI Finger | Brass | Green Yellow | Liquid Crystal Polymer (LCP) | 14.1 mm | 0.555 in | 10/100/1000 Base-T AutoMDIX | Gold | 70 °C | 0 °C | Up | 2 | 1 | Phosphor Bronze | RJ45 | 90 ° | Solder | Through Hole | 8 | Flash |
