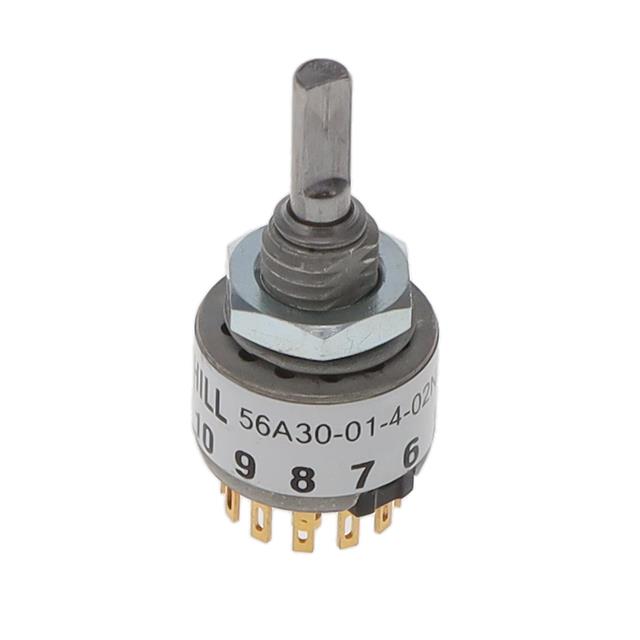

56A30 Series
Manufacturer: Grayhill Inc.
Beta
⌘K
SWITCH ROTARY 2POS 200MA 115V
| Part | Circuit per Deck | Actuator Length [x] | Voltage Rating - AC | Contact Material | Index Stops | Number of Positions | Actuator Type | Contact Timing | Contact Finish | Voltage Rating - DC | Termination Style | Depth Behind Panel [z] | Number of Decks [custom] | Current Rating (Amps) | Angle of Throw | Mounting Type | Number of Poles per Deck | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Grayhill Inc. | 4PDT | 9.53 mm | 115 V | Brass | Fixed | 2 | Flatted (3.17mm Dia) | Non-Shorting (BBM) | Silver | 30 V | Solder Lug | 12.19 mm | 1 | 200 mA | 30 ° | Panel Mount | ||
 Grayhill Inc. | SP12T | 9.53 mm | 115 V | Brass | Fixed | 12 | Flatted (3.17mm Dia) | Non-Shorting (BBM) | Silver | 30 V | Solder Lug | 12.19 mm | 1 | 200 mA | 30 ° | Panel Mount | 1 | |
 Grayhill Inc. | SP6T | 9.53 mm | 115 V | Brass | Fixed | 6 | Flatted (3.17mm Dia) | Non-Shorting (BBM) | Silver | 30 V | Solder Lug | 12.19 mm | 1 | 200 mA | 30 ° | Panel Mount | 1 | |
Grayhill Inc. | DPDT | 9.53 mm | 115 V | Brass | Fixed | 2 | Flatted (3.17mm Dia) | Non-Shorting (BBM) | Silver | 30 V | Solder Lug | 12.19 mm | 1 | 200 mA | 30 ° | Panel Mount | 2 | |
 Grayhill Inc. | SP12T | 9.53 mm | 115 V | Brass | Fixed | 12 | Flatted (3.17mm Dia) | Shorting (MBB) | Silver | 30 V | Solder Lug | 12.19 mm | 1 | 200 mA | 30 ° | Panel Mount | 1 | Shaft and Panel Sealed |
Grayhill Inc. | DP5T | 9.53 mm | 115 V | Brass | Fixed | 5 | Flatted (3.17mm Dia) | Shorting (MBB) | Silver | 30 V | Solder Lug | 12.19 mm | 1 | 200 mA | 30 ° | Panel Mount | 2 | |
Grayhill Inc. | SP3T | 9.53 mm | 115 V | Brass | Fixed | Flatted (3.17mm Dia) | Non-Shorting (BBM) | Silver | 30 V | Solder Lug | 12.19 mm | 1 | 200 mA | 30 ° | Panel Mount | 1 | ||
Grayhill Inc. | SP6T | 9.53 mm | 115 V | Brass | Fixed | 6 | Flatted (3.17mm Dia) | Shorting (MBB) | Silver | 30 V | Solder Lug | 12.19 mm | 1 | 200 mA | 30 ° | Panel Mount | 1 | |
Grayhill Inc. | SP10T | 9.53 mm | 115 V | Brass | Fixed | 10 | Flatted (3.17mm Dia) | Non-Shorting (BBM) | Silver | 30 V | Solder Lug | 12.19 mm | 1 | 200 mA | 30 ° | Panel Mount | 1 | |
Grayhill Inc. | SP5T | 9.53 mm | 115 V | Brass | Fixed | 5 | Flatted (3.17mm Dia) | Non-Shorting (BBM) | Silver | 30 V | Solder Lug | 12.19 mm | 1 | 200 mA | 30 ° | Panel Mount | 1 |
