SDF-V09 Series
Manufacturer: NorComp Inc.
Beta
⌘K
CONN D-SUB PLUG 9P PNL MNT SLDR
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material | Color | Dielectric Material | Ingress Protection | Connector Type | Contact Finish Thickness | Current Rating (Amps) | Number of Rows [custom] | Contact Finish | Features | Shell Material, Finish | Termination | Connector Style | Number of Positions | Contact Type | Material Flammability Rating | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Flange Feature | Mounting Type | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

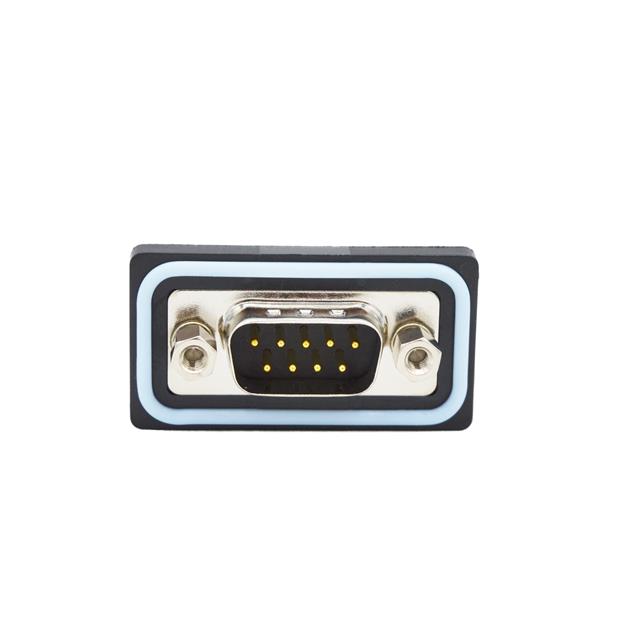

 NorComp Inc. | 85 °C | -25 °C | Brass | Black | Polybutylene Terephthalate (PBT) | IP67 - Dust Tight Waterproof | Plug Male Pins | Flash | 5 A | 2 | Gold | Board Lock Grounding Indents | Nickel Plated Steel | Solder | D-Sub | 9 | Signal | UL94 V-0 | 1 | DE E | 4-40 Mating Side Female Screwlock | Panel Mount Through Hole | ||

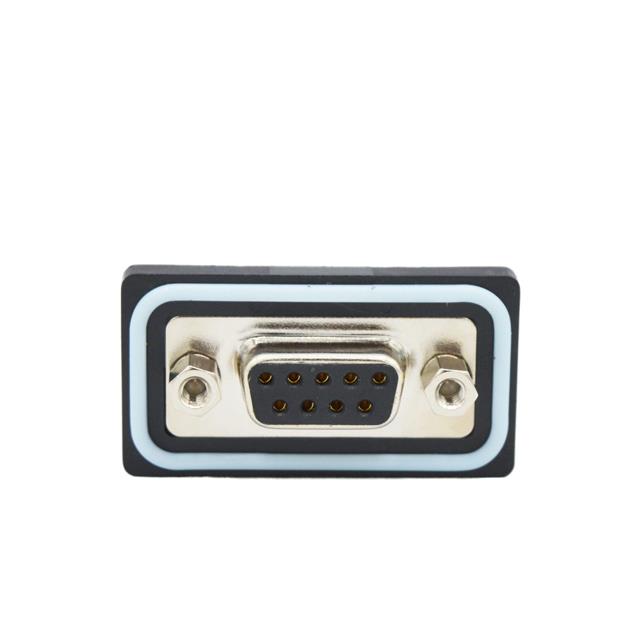

 NorComp Inc. | 85 °C | -25 °C | Brass | Black | Polybutylene Terephthalate (PBT) | IP67 - Dust Tight Waterproof | Receptacle Female Sockets | 5 A | 2 | Gold | Board Lock | Nickel Plated Steel | Solder | D-Sub | 9 | Signal | UL94 V-0 | 1 | DE E | 4-40 Mating Side Female Screwlock | Panel Mount Through Hole | 30 Áin | 0.76 Ám | |

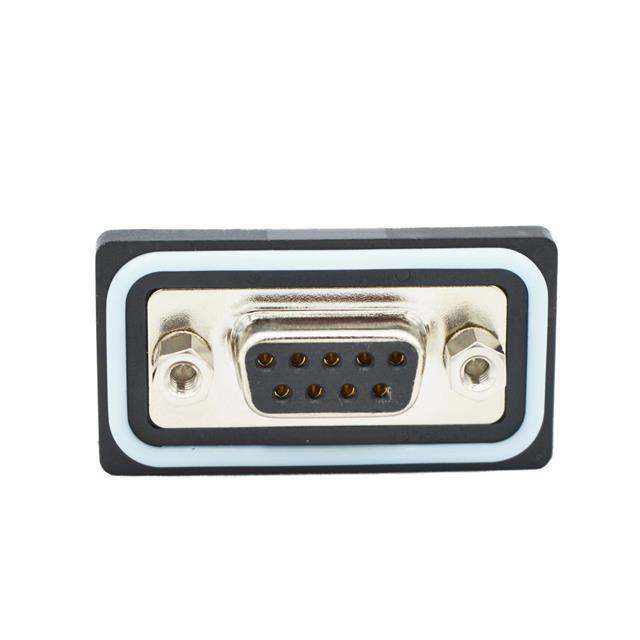

 NorComp Inc. | 85 °C | -25 °C | Brass | Black | Polybutylene Terephthalate (PBT) | IP67 - Dust Tight Waterproof | Receptacle Female Sockets | 5 A | 2 | Gold | Nickel Plated Steel | Solder | D-Sub | 9 | Signal | UL94 V-0 | 1 | DE E | 4-40 Mating Side Female Screwlock | Panel Mount Through Hole | 30 Áin | 0.76 Ám | ||

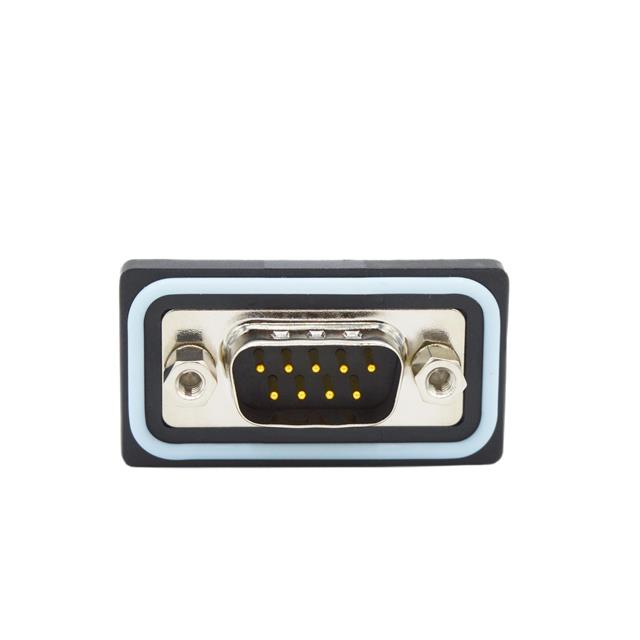

 NorComp Inc. | 85 °C | -25 °C | Brass | Black | Polybutylene Terephthalate (PBT) | IP67 - Dust Tight Waterproof | Plug Male Pins | 5 A | 2 | Gold | Board Lock Grounding Indents | Nickel Plated Steel | Solder | D-Sub | 9 | Signal | UL94 V-0 | 1 | DE E | 4-40 Mating Side Female Screwlock | Panel Mount Through Hole | 30 Áin | 0.76 Ám | |

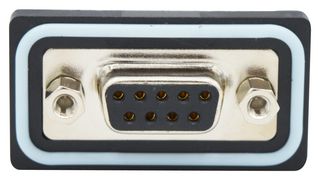

 NorComp Inc. | 85 °C | -25 °C | Brass | Black | Polybutylene Terephthalate (PBT) | IP67 - Dust Tight Waterproof | Receptacle Female Sockets | Flash | 5 A | 2 | Gold | Nickel Plated Steel | Solder | D-Sub | 9 | Signal | UL94 V-0 | 1 | DE E | 4-40 Mating Side Female Screwlock | Panel Mount Through Hole | |||
NorComp Inc. | 85 °C | -25 °C | Brass | Black | Polybutylene Terephthalate (PBT) | IP67 - Dust Tight Waterproof | Receptacle Female Sockets | Flash | 5 A | 2 | Gold | Board Lock | Nickel Plated Steel | Solder | D-Sub | 9 | Signal | UL94 V-0 | 1 | DE E | 4-40 Mating Side Female Screwlock | Panel Mount Through Hole | ||

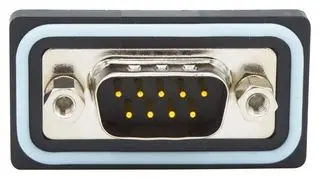

 NorComp Inc. | 85 °C | -25 °C | Brass | Black | Polybutylene Terephthalate (PBT) | IP67 - Dust Tight Waterproof | Plug Male Pins | Flash | 5 A | 2 | Gold | Grounding Indents | Nickel Plated Steel | Solder | D-Sub | 9 | Signal | UL94 V-0 | 1 | DE E | 4-40 Mating Side Female Screwlock | Panel Mount Through Hole | ||

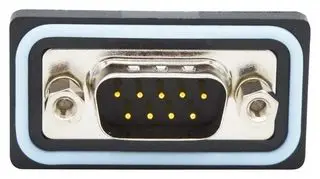

 NorComp Inc. | 85 °C | -25 °C | Brass | Black | Polybutylene Terephthalate (PBT) | IP67 - Dust Tight Waterproof | Plug Male Pins | 5 A | 2 | Gold | Grounding Indents | Nickel Plated Steel | Solder | D-Sub | 9 | Signal | UL94 V-0 | 1 | DE E | 4-40 Mating Side Female Screwlock | Panel Mount Through Hole | 30 Áin | 0.76 Ám |
