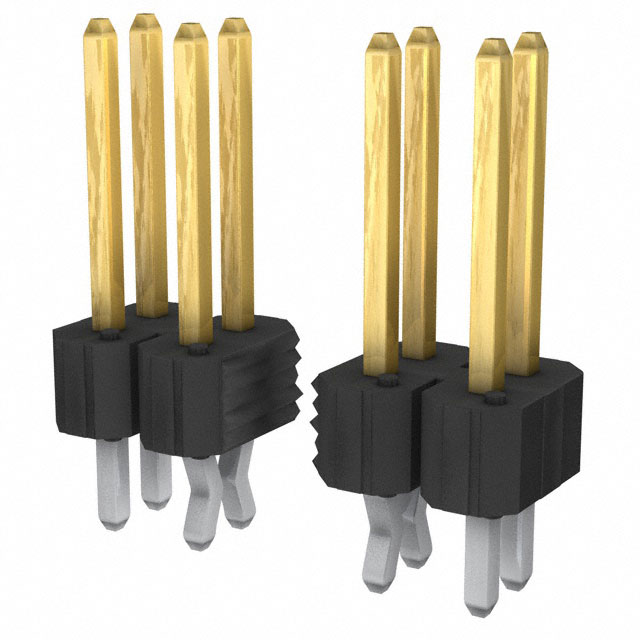

78548 Series

Catalog

CONN HEADER VERT 12POS 2.54MM

Part	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Shape	Insulation Color	Insulation Material	Contact Finish - Mating	Contact Type	Insulation Height	Insulation Height	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination	Overall Contact Length	Overall Contact Length	Connector Type	Number of Rows	Contact Length - Mating [x]	Contact Length - Mating [x]	Fastening Type	Shrouding	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Contact Material	Number of Positions	Number of Positions Loaded	Contact Length - Post [x]	Contact Length - Post [x]
Amphenol ICC (FCI) 78548-212HLF	2.54 mm	0.1 in	Square	Black	Polycyclohexylenedimethylene Terephthalate (PCT)	Gold or Gold GXT™	Male Pin	0.1 in	2.54 mm	Through Hole	15 µin	0.38 µm	Kinked Pin Solder	0.538 "	13.67 mm	Header	2	0.318 "	8.08 mm	Push-Pull	Unshrouded	UL94 V-0	0.1 in	2.54 mm	Phosphor Bronze	12	All	0.12 in	3.05 mm
Amphenol ICC (FCI) 78548-102	2.54 mm	0.1 in	Square	Black		Gold or Gold GXT™	Male Pin	0.1 in	2.54 mm	Through Hole	30 Áin	0.76 Ám	Kinked Pin Solder	0.538 "	13.67 mm	Header	2	0.318 "	8.08 mm	Push-Pull	Unshrouded	UL94 V-0			Phosphor Bronze	2	All	0.12 in	3.05 mm
Amphenol ICC (FCI) 78548-210	2.54 mm	0.1 in	Square	Black		Gold or Gold GXT™	Male Pin	0.1 in	2.54 mm	Through Hole	15 µin	0.38 µm	Kinked Pin Solder	0.538 "	13.67 mm	Header	2	0.318 "	8.08 mm	Push-Pull	Unshrouded	UL94 V-0	0.1 in	2.54 mm	Phosphor Bronze	10	All	0.12 in	3.05 mm
Amphenol ICC (FCI) 78548-126HLF	2.54 mm	0.1 in	Square	Black	Polycyclohexylenedimethylene Terephthalate (PCT)	Gold or Gold GXT™	Male Pin	0.1 in	2.54 mm	Through Hole	30 Áin	0.76 Ám	Kinked Pin Solder	0.538 "	13.67 mm	Header	2	0.318 "	8.08 mm	Push-Pull	Unshrouded	UL94 V-0	0.1 in	2.54 mm	Phosphor Bronze	26	All	0.12 in	3.05 mm
Amphenol ICC (FCI) 78548-226HLF	2.54 mm	0.1 in	Square	Black	Polycyclohexylenedimethylene Terephthalate (PCT)	Gold or Gold GXT™	Male Pin	0.1 in	2.54 mm	Through Hole	15 µin	0.38 µm	Kinked Pin Solder	0.538 "	13.67 mm	Header	2	0.318 "	8.08 mm	Push-Pull	Unshrouded	UL94 V-0	0.1 in	2.54 mm	Phosphor Bronze	26	All	0.12 in	3.05 mm
Amphenol ICC (FCI) 78548-118HLF	2.54 mm	0.1 in	Square	Black	Polycyclohexylenedimethylene Terephthalate (PCT)	Gold or Gold GXT™	Male Pin	0.1 in	2.54 mm	Through Hole	30 Áin	0.76 Ám	Kinked Pin Solder	0.538 "	13.67 mm	Header	2	0.318 "	8.08 mm	Push-Pull	Unshrouded	UL94 V-0	0.1 in	2.54 mm	Phosphor Bronze	18	All	0.12 in	3.05 mm
Amphenol ICC (FCI) 78548-228HLF	2.54 mm	0.1 in	Square	Black	Polycyclohexylenedimethylene Terephthalate (PCT)	Gold or Gold GXT™	Male Pin	0.1 in	2.54 mm	Through Hole	15 µin	0.38 µm	Kinked Pin Solder	0.538 "	13.67 mm	Header	2	0.318 "	8.08 mm	Push-Pull	Unshrouded	UL94 V-0	0.1 in	2.54 mm	Phosphor Bronze	28	All	0.12 in	3.05 mm
Amphenol ICC (FCI) 78548-654	2.54 mm	0.1 in	Square	Black		Gold or Gold GXT™	Male Pin	0.1 in	2.54 mm	Through Hole	30 Áin	0.76 Ám	Kinked Pin Solder	0.538 "	13.67 mm	Header	2	0.318 "	8.08 mm	Push-Pull	Unshrouded	UL94 V-0	0.1 in	2.54 mm	Phosphor Bronze	54	All	0.12 in	3.05 mm
Amphenol ICC (FCI) 78548-114	2.54 mm	0.1 in	Square	Black		Gold or Gold GXT™	Male Pin	0.1 in	2.54 mm	Through Hole	30 Áin	0.76 Ám	Kinked Pin Solder	0.538 "	13.67 mm	Header	2	0.318 "	8.08 mm	Push-Pull	Unshrouded	UL94 V-0	0.1 in	2.54 mm	Phosphor Bronze	14	All	0.12 in	3.05 mm
Amphenol ICC (FCI) 78548-142HLF	2.54 mm	0.1 in	Square	Black	Polycyclohexylenedimethylene Terephthalate (PCT)	Gold or Gold GXT™	Male Pin	0.1 in	2.54 mm	Through Hole	30 Áin	0.76 Ám	Kinked Pin Solder	0.538 "	13.67 mm	Header	2	0.318 "	8.08 mm	Push-Pull	Unshrouded	UL94 V-0	0.1 in	2.54 mm	Phosphor Bronze	42	All	0.12 in	3.05 mm
