LCD2041 Series

Catalog

LDC CHAR 9 TO 35VDC 20X4 Y/GBK

Part	Viewing Area [y]	Viewing Area [x]	Interface	Number of Characters	Text Color	Display Type	Background Color	Display Format [x]	Display Format [y]	Dot Size [y]	Dot Size [x]	Outline L x W x H [y]	Outline L x W x H [x]	Outline L x W x H [z]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply [Max]	Voltage - Supply [Min]	Character Format [x]	Character Format [y]	Display Mode
Matrix Orbital LCD2041-WB-VPT
Matrix Orbital LCD2041-R-V	20.8 mm	70.4 mm	I2C RS-232 TTL	80	Red	LCD - Monochrome	Black	20	4	0.55 mm	0.55 mm	60 mm	98 mm	30.5 mm	50 °C	0 °C	15 V	9 V	5 Dots	8 Dots

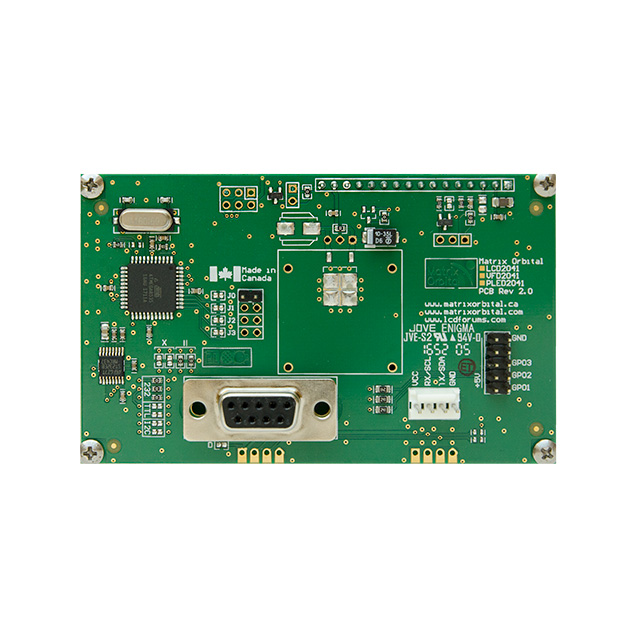

Matrix Orbital LCD2041-WB	20.8 mm	70.4 mm	I2C RS-232 TTL	80	White	LCD - Monochrome	Blue	20	4	0.55 mm	0.55 mm	60 mm	98 mm	30.5 mm	50 °C	0 °C	5.25 V	4.75 V	5 Dots	8 Dots
Matrix Orbital LCD2041-R-VPT	20.8 mm	70.4 mm	I2C RS-232 TTL	80	Red	LCD - Monochrome	Black	20	4	0.55 mm	0.55 mm	60 mm	98 mm	30.5 mm	50 °C	0 °C	35 V	9 V	5 Dots	8 Dots
Matrix Orbital LCD2041-IY-E	20.8 mm	70.4 mm	I2C RS-232 TTL	80	Yellow	LCD - Monochrome	Black	20	4	0.55 mm	0.55 mm	60 mm	98 mm	30.5 mm	70 °C	-20 ░C	5.25 V	4.75 V	5 Dots	8 Dots
Matrix Orbital LCD2041-GW-VPT	20.8 mm	70.4 mm	I2C RS-232 TTL	80	Gray	LCD - Monochrome	White	20	4	0.55 mm	0.55 mm	60 mm	98 mm	30.5 mm	50 °C	0 °C	35 V	9 V	5 Dots	8 Dots

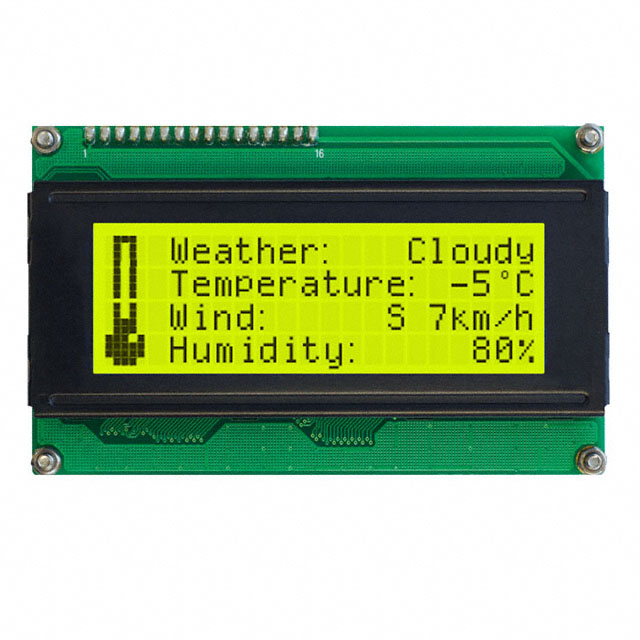

Matrix Orbital LCD2041-V	25 mm	76.3 mm	I2C RS-232 TTL	80	Gray	LCD - Monochrome	Green	20	4	0.55 mm	0.55 mm	60 mm	98 mm	30.63 mm	50 °C	0 °C	15 V	9 V	5 Dots	8 Dots	Reflective
Matrix Orbital LCD2041-GW-E	20.8 mm	70.4 mm	I2C RS-232 TTL	80	Gray	LCD - Monochrome	White	20	4	0.55 mm	0.55 mm	60 mm	98 mm	30.5 mm	70 °C	-20 ░C	5.25 V	4.75 V	5 Dots	8 Dots
Matrix Orbital LCD2041-R	20.8 mm	70.4 mm	I2C RS-232 TTL	80	Red	LCD - Monochrome	Black	20	4	0.55 mm	0.55 mm	60 mm	98 mm	30.5 mm	50 °C	0 °C	5.25 V	4.75 V	5 Dots	8 Dots
Matrix Orbital LCD2041-GW-V	20.8 mm	70.4 mm	I2C RS-232 TTL	80	Gray	LCD - Monochrome	White	20	4	0.55 mm	0.55 mm	60 mm	98 mm	30.5 mm	50 °C	0 °C	15 V	9 V	5 Dots	8 Dots
