830-90 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

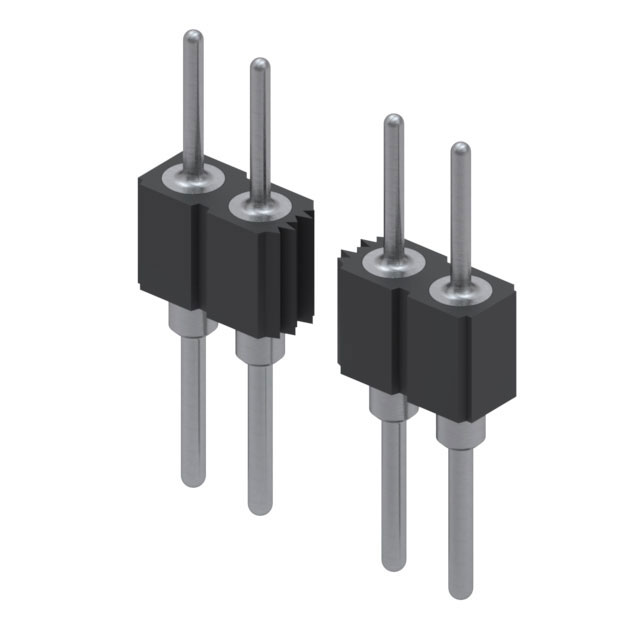

CONN HEADER VERT 43POS 2MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Connector Type	Fastening Type	Mounting Type	Contact Length - Mating	Contact Length - Mating	Contact Type	Insulation Color	Overall Contact Length	Overall Contact Length	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Shrouding	Termination	Number of Rows	Number of Positions Loaded	Contact Finish - Mating	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Shape	Contact Material	Insulation Material	Contact Length - Post	Contact Length - Post
Mill-Max Manufacturing Corp. 830-90-043-10-001000	200 µin	5.08 µm	Header	Push-Pull	Through Hole	0.154 in	3.91 mm	Male Pin	Black	12.07 mm	0.475 in	Tin-Lead	0.079 "	2 mm	Unshrouded	Solder	1	All	Tin-Lead	43	5.08 µm	200 µin	Circular	Brass Alloy	Nylon 4/6 Polyamide (PA46)	0.164 in	4.17 mm
Mill-Max Manufacturing Corp. 830-90-011-30-001000	200 µin	5.08 µm	Header	Push-Pull	Surface Mount	0.142 in	3.61 mm	Male Pin	Black			Tin-Lead	0.079 "	2 mm	Unshrouded	Solder	1	All	Tin-Lead	11	5.08 µm	200 µin	Circular	Brass Alloy	Nylon 4/6 Polyamide (PA46)
Mill-Max Manufacturing Corp. 830-90-050-10-001000	200 µin	5.08 µm	Header	Push-Pull	Through Hole	0.154 in	3.91 mm	Male Pin	Black	12.07 mm	0.475 in	Tin-Lead	0.079 "	2 mm	Unshrouded	Solder	1	All	Tin-Lead	50	5.08 µm	200 µin	Circular	Brass Alloy	Nylon 4/6 Polyamide (PA46)	0.164 in	4.17 mm
Mill-Max Manufacturing Corp. 830-90-003-30-001000	200 µin	5.08 µm	Header	Push-Pull	Surface Mount	0.142 in	3.61 mm	Male Pin	Black			Tin-Lead	0.079 "	2 mm	Unshrouded	Solder	1	All	Tin-Lead		5.08 µm	200 µin	Circular	Brass Alloy	Nylon 4/6 Polyamide (PA46)
Mill-Max Manufacturing Corp. 830-90-010-30-001000	200 µin	5.08 µm	Header	Push-Pull	Surface Mount	0.142 in	3.61 mm	Male Pin	Black			Tin-Lead	0.079 "	2 mm	Unshrouded	Solder	1	All	Tin-Lead	10	5.08 µm	200 µin	Circular	Brass Alloy	Nylon 4/6 Polyamide (PA46)
Mill-Max Manufacturing Corp. 830-90-035-30-001000	200 µin	5.08 µm	Header	Push-Pull	Surface Mount	0.142 in	3.61 mm	Male Pin	Black			Tin-Lead	0.079 "	2 mm	Unshrouded	Solder	1	All	Tin-Lead	35	5.08 µm	200 µin	Circular	Brass Alloy	Nylon 4/6 Polyamide (PA46)
Mill-Max Manufacturing Corp. 830-90-014-30-001000	200 µin	5.08 µm	Header	Push-Pull	Surface Mount	0.142 in	3.61 mm	Male Pin	Black			Tin-Lead	0.079 "	2 mm	Unshrouded	Solder	1	All	Tin-Lead	14	5.08 µm	200 µin	Circular	Brass Alloy	Nylon 4/6 Polyamide (PA46)
Mill-Max Manufacturing Corp. 830-90-004-10-001000	200 µin	5.08 µm	Header	Push-Pull	Through Hole	0.154 in	3.91 mm	Male Pin	Black	12.07 mm	0.475 in	Tin-Lead	0.079 "	2 mm	Unshrouded	Solder	1	All	Tin-Lead	4	5.08 µm	200 µin	Circular	Brass Alloy	Nylon 4/6 Polyamide (PA46)	0.164 in	4.17 mm
Mill-Max Manufacturing Corp. 830-90-005-10-001000	200 µin	5.08 µm	Header	Push-Pull	Through Hole	0.154 in	3.91 mm	Male Pin	Black	12.07 mm	0.475 in	Tin-Lead	0.079 "	2 mm	Unshrouded	Solder	1	All	Tin-Lead	5	5.08 µm	200 µin	Circular	Brass Alloy	Nylon 4/6 Polyamide (PA46)	0.164 in	4.17 mm
Mill-Max Manufacturing Corp. 830-90-007-30-001000	200 µin	5.08 µm	Header	Push-Pull	Surface Mount	0.142 in	3.61 mm	Male Pin	Black			Tin-Lead	0.079 "	2 mm	Unshrouded	Solder	1	All	Tin-Lead	7	5.08 µm	200 µin	Circular	Brass Alloy	Nylon 4/6 Polyamide (PA46)
