NCP51513 Series

130 V, 2.0/3.0 A High and Low Side Drivers with Dead Time & Interlock

Catalog

130 V, 2.0/3.0 A High and Low Side Drivers with Dead Time & Interlock

Part	Gate Type	Package / Case	Driven Configuration	Number of Drivers	Voltage - Supply [Max]	Voltage - Supply [Min]	Channel Type	Current - Peak Output (Source, Sink) [custom]	Current - Peak Output (Source, Sink) [custom]	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Input Type	Mounting Type	Logic Voltage - VIL, VIH [custom]	Logic Voltage - VIL, VIH [custom]	Supplier Device Package	High Side Voltage - Max (Bootstrap) [Max]	Operating Temperature [Min]	Operating Temperature [Max]

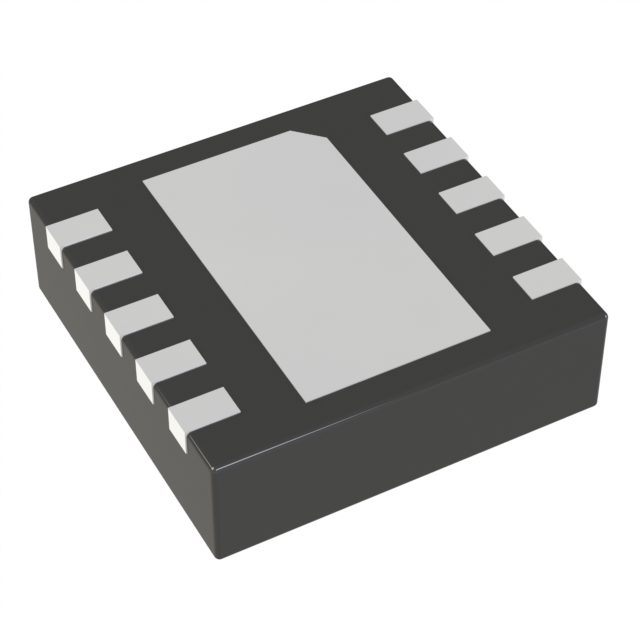

ON Semiconductor NCP51513ABMNTWG	N-Channel MOSFET	10-VFDFN Exposed Pad	Half-Bridge	2	19 V	8 V	Independent	3 A	2 A	7 ns	9 ns	Inverting Non-Inverting	Surface Mount	2.3 V	0.8 V	10-DFN (3x3)	150 V	-40 °C	125 ¯C

Catalog

130 V, 2.0/3.0 A High and Low Side Drivers with Dead Time & Interlock

Key Features

• 2.0 A Source, 3 A Sink Output Current Capability

• Bootstrap Supply Voltage up to 150V

• Typical Rise/Fall times 9 ns/7 ns with 1 nF load

• Propagation delay 50 ns A version, 20 ns B version

• Max 9 ns Delay Matching between Channels

• Input cross-conduction prevention

• Internal 80 ns Dead Time

• Up to 50 V/ns

• Enable pin

Description

NCP51513 is 130 V half bridge driver with high drive current capabilites and options for DC-DC power supplies and inverters. NCP51513 offers best in class propagation delay, low quiescent current and low switching current at high frequencies of operation.This device is tailored for highly efficient power supplies operating athigh frequencies. NCP51513 can be offered in two versions for propagation delays. With filter version, it has a typical 50 ns propagation delay, while without filter version it has a typical propagation delay of 20 ns.Internal 80 ns dead time and interlock function protect the output MOSFETs against cross conduction events. Enable functionality provides additional system flexibility and helps reducing power consumption.
