207458 Series

KK Plus 396 Receptacle Housing, 3.96mm Pitch, Single Row, 2 Circuits, UL 94V-0, Black

Manufacturer: Molex

Catalog

KK Plus 396 Receptacle Housing, 3.96mm Pitch, Single Row, 2 Circuits, UL 94V-0, Black

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Termination	Contact Type	Pitch [x]	Pitch [x]	Note	Color	Number of Rows	Insulation Material	Fastening Type	Connector Type	Features	Mounting Type	Number of Positions
Molex 2074580005	-40 °C	105 ░C	Crimp	Female Socket	0.156 in	3.96 mm	Contacts Not Included	Black	1	Polyamide (PA66) Nylon 6/6	Latch Lock	Receptacle	Glow Wire Compliant	Free Hanging (In-Line)

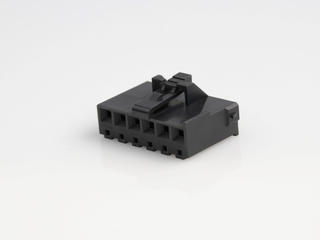

Molex 2074580006	-40 °C	105 ░C	Crimp	Female Socket	0.156 in	3.96 mm	Contacts Not Included	Black	1	Polyamide (PA66) Nylon 6/6	Latch Lock	Receptacle	Glow Wire Compliant	Free Hanging (In-Line)	6

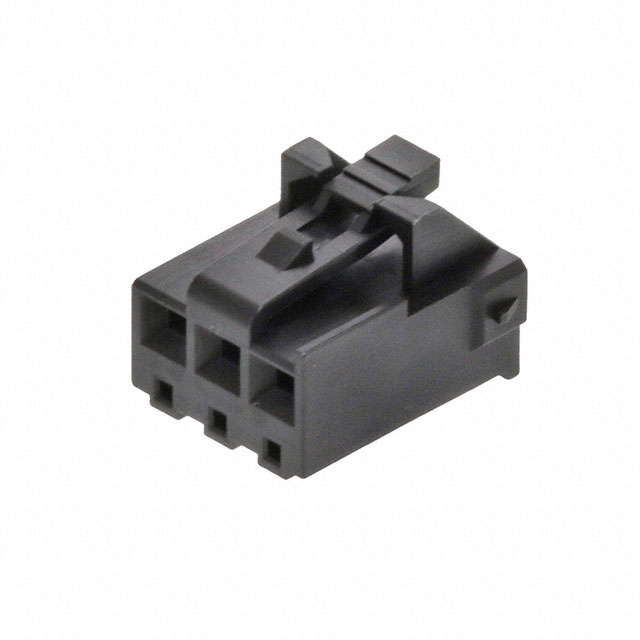

Molex 2074580003	-40 °C	105 ░C	Crimp	Female Socket	0.156 in	3.96 mm	Contacts Not Included	Black	1	Polyamide (PA66) Nylon 6/6	Latch Lock	Receptacle	Glow Wire Compliant	Free Hanging (In-Line)

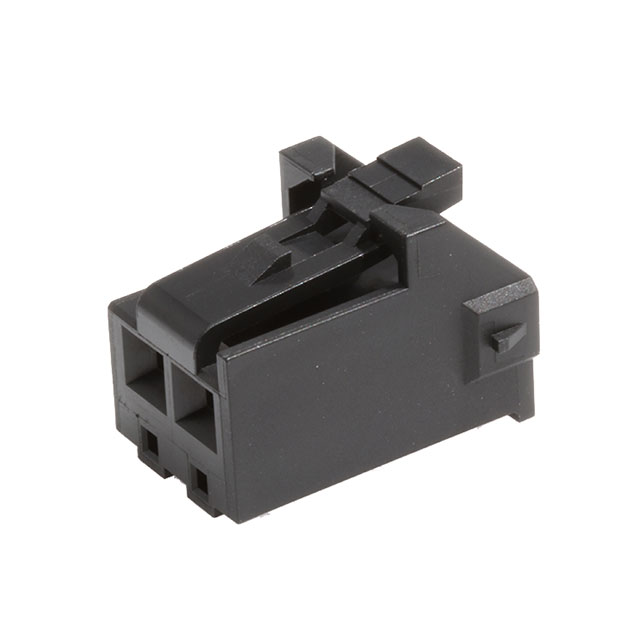

Molex 2074580002	-40 °C	105 ░C	Crimp	Female Socket	0.156 in	3.96 mm	Contacts Not Included	Black	1	Polyamide (PA66) Nylon 6/6	Latch Lock	Receptacle	Glow Wire Compliant	Free Hanging (In-Line)	2

KK Plus 396 Receptacle Housing, 3.96mm Pitch, Single Row, 2 Circuits, UL 94V-0, Black
