A22TK Series

Manufacturer: Omron Automation and Safety

Catalog

Catalog

SWITCH KEYLCK 2POS 3PST 10A 110V

...

Part	Mechanical Life	Electrical Life	Depth Behind Flange	Key Removable Positions	Features	Voltage Rating - DC	Panel Cutout Dimensions [diameter]	Contact Timing	Circuit	Number of Positions	Switch Function	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Voltage Rating - AC	Current Rating (Amps)	Angle of Throw	Termination Style	Actuator Type	Key Removable Positions [custom]
Omron Automation and Safety A22TK-2RR-03-01	100000 Cycles	100000 Cycles	54.7 mm	Right	IP65	24 V	22.3 mm	Not Specified	3PST-NC	2	Off-On	-20 ░C	70 °C	Panel Mount	110 V	10 A	90 °	Screw Terminal	Tubular Key (Not Included)
Omron Automation and Safety A22TK-2LR-11-K05	100000 Cycles	100000 Cycles	54.7 mm		IP65	24 V	22.3 mm	Not Specified	DPST-NO/NC	2	Off-On On-Off	-20 ░C	70 °C	Panel Mount	110 V	10 A	90 °	Screw Terminal	Tubular Key	Left

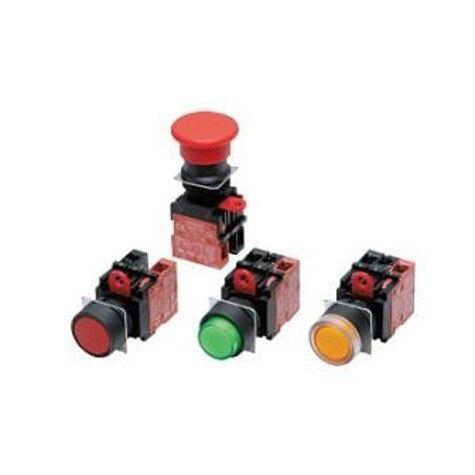

Omron Automation and Safety A22TK-2RL-01-K29
Omron Automation and Safety A22TK-2RL-12-01	100000 Cycles	100000 Cycles	54.7 mm	Right	IP65	24 V	22.3 mm	Not Specified	DPST-NC SPST-NO	2	Off-On On-Off	-20 ░C	70 °C	Panel Mount	110 V	10 A	90 °	Screw Terminal	Tubular Key (Not Included)
Omron Automation and Safety A22TK-2RL-01-K28
Omron Automation and Safety A22TK-2RR-21-K04
Omron Automation and Safety A22TK-2RR-11-01	100000 Cycles	100000 Cycles	54.7 mm	Right	IP65	24 V	22.3 mm	Not Specified	DPST-NO/NC	2	Off-On On-Off	-20 ░C	70 °C	Panel Mount	110 V	10 A	90 °	Screw Terminal	Tubular Key (Not Included)
Omron Automation and Safety A22TK-2LL-11-K12
Omron Automation and Safety A22TK-2LR-03-03	100000 Cycles	100000 Cycles	54.7 mm		IP65	24 V	22.3 mm	Not Specified	3PST-NC	2	Off-On	-20 ░C	70 °C	Panel Mount	110 V	10 A	90 °	Screw Terminal	Tubular Key (Not Included)	Left
Omron Automation and Safety A22TK-2LR-02-K02	100000 Cycles	100000 Cycles	54.7 mm		IP65	24 V	22.3 mm	Not Specified	DPST-NC	2	Off-On	-20 ░C	70 °C	Panel Mount	110 V	10 A	90 °	Screw Terminal	Tubular Key	Left
