2R5SEP Series

Catalog

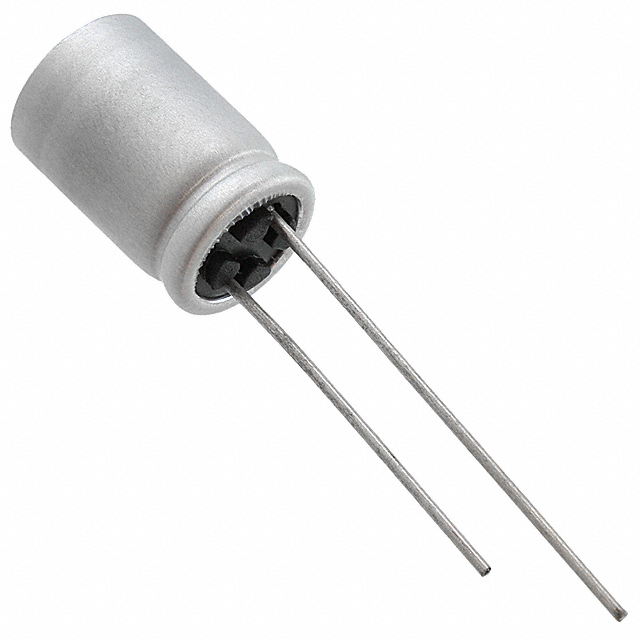

CAP ALUM POLY 680UF 20% 2.5V T/H

Part	Operating Temperature [Min]	Operating Temperature [Max]	Capacitance	Package / Case	Height - Seated (Max) [Max]	Height - Seated (Max)	Applications	Lead Spacing	Lead Spacing	Ripple Current @ Low Frequency	Mounting Type	ESR (Equivalent Series Resistance)	Tolerance	Size / Dimension [diameter]	Size / Dimension [diameter]	Type	Ripple Current @ High Frequency	Voltage - Rated	Lifetime @ Temp.	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Panasonic Electronic Components 2R5SEP680M+TSS	-55 C	105 ░C	680 µF	Can Radial	0.472 in	12 mm	General Purpose	0.138 in	3.5 mm	226 mA	Through Hole	13 mOhms	20 %	0.315 in	8 mm	Polymer	4.52 A	2.5 V	2000 Hrs
Panasonic Electronic Components 2R5SEP1500M	-55 C	105 ░C	1.5 mF	Can Radial			General Purpose	0.197 "	5 mm	272 mA	Through Hole	12 mOhms	20 %	0.394 in	10 mm	Polymer	5.44 A	2.5 V	2000 Hrs	0.512 "	13 mm
Panasonic Electronic Components 2R5SEP1500M+T	-55 C	105 ░C	1.5 mF	Can Radial			General Purpose	0.197 "	5 mm	272 mA	Through Hole	12 mOhms	20 %	0.394 in	10 mm	Polymer	5.44 A	2.5 V	2000 Hrs	0.512 "	13 mm
