173-009 Series
Manufacturer: NorComp Inc.
Beta
⌘K

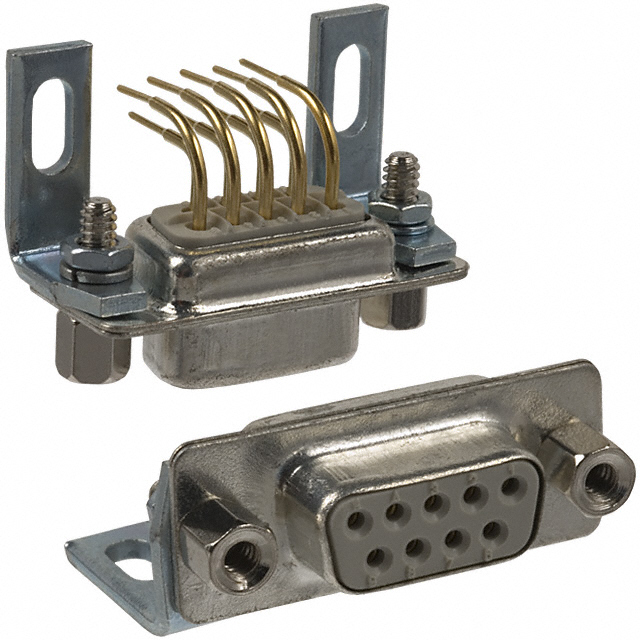

CONN D-SUB RCPT 9POS R/A SLDR
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Dielectric Material | Color | Contact Material | Termination | Connector Style | Number of Positions | Current Rating (Amps) | Backset Spacing | Backset Spacing | Contact Type | Contact Finish Thickness | Flange Feature | Mounting Type | Connector Type | Number of Rows [custom] | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Features | Material Flammability Rating | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NorComp Inc. | 100 °C | -50 °C | Polybutylene Terephthalate (PBT) Polyester | Beige | Brass | Solder | D-Sub | 9 | 5 A | 7.2 mm | 0.283 in | Signal | Flash | 4-40 Mating Side Female Screwlock | Panel Mount Right Angle Through Hole | Receptacle Female Sockets | 2 | 1 | DE E | Mounting Brackets | UL94 V-0 | Gold |

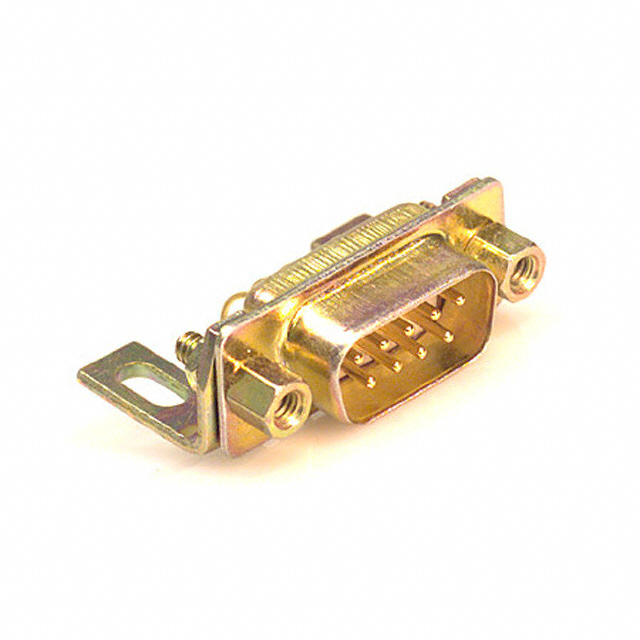

 NorComp Inc. | 100 °C | -50 °C | Polybutylene Terephthalate (PBT) | Beige | Solder | D-Sub | 9 | 5 A | 7.2 mm | 0.283 in | Signal | Flash | 4-40 Mating Side Female Screwlock | Panel Mount Right Angle Through Hole | Plug Male Pins | 2 | 1 | DE E | Grounding Indents Mounting Brackets | UL94 V-0 | Gold |
