170456 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

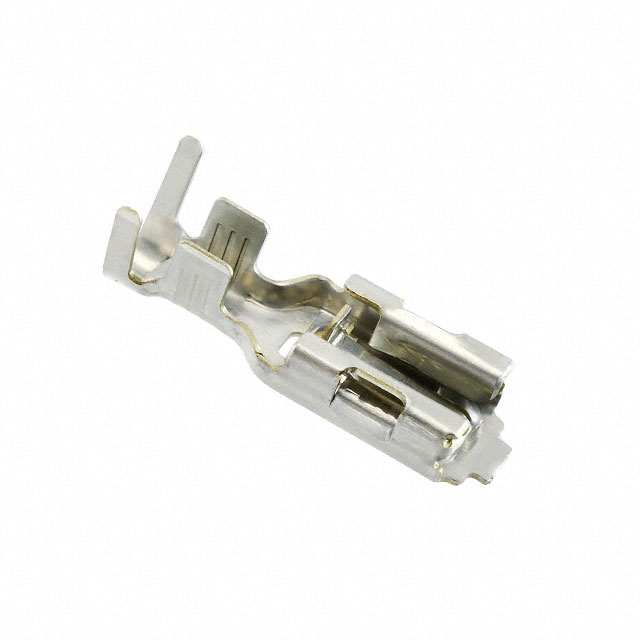

CONN QC RCPT 10-12AWG 0.250
| Part | Insulation | Gender | Contact Material | Tab Width | Tab Width | Mounting Type | Tab Thickness | Tab Thickness | Wire Gauge [Max] | Wire Gauge [Min] | Length - Overall | Length - Overall | Insulation Diameter [Max] [diameter] | Insulation Diameter [Min] [diameter] | Insulation Diameter [Min] [diameter] | Insulation Diameter [Max] [diameter] | Termination | Terminal Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Non-Insulated | Female | Brass | 6.35 mm | 0.25 in | Free Hanging (In-Line) | 0.032 in | 0.81 mm | 12 AWG | 10 AWG | 22.8 mm | 0.898 in | 0.197 " | 0.142 " | 3.61 mm | 5 mm | Crimp | Standard |
