C30737 Series

Catalog

SENSOR PHOTODIODE 800NM 6CLCC

Part	Active Area [diameter]	Wavelength	Current - Dark (Typ)	Package / Case	Spectral Range [Min]	Spectral Range [Max]	Voltage - DC Reverse (Vr) (Max) [Max]	Diode Type	Operating Temperature [Min]	Operating Temperature [Max]	Response Time	Responsivity @ nm	Mounting Type

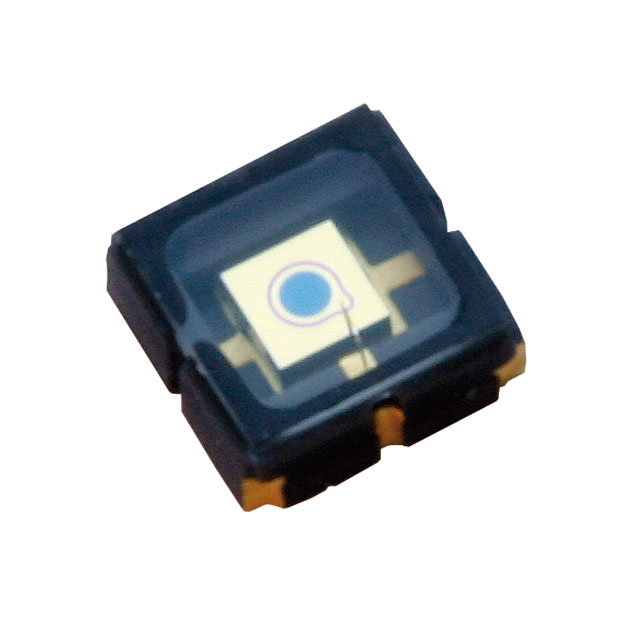

Excelitas Technologies C30737LH-230-80A	230 µm	800 nm	2.5 nA	6-CLCC	800 nm	1000 nm	210 V	Avalanche	-20 ░C	60 °C	200 ps	50 A/W	Surface Mount
Excelitas Technologies C30737LH-500-80A	0.5 mm	800 nm		6-CLCC	500 nm	1000 nm	210 V	Avalanche	-20 ░C	60 °C	300 ps	50 A/W	Surface Mount
Excelitas Technologies C30737LH-230-83A	230 µm	650 nm	2.5 nA	6-CLCC	500 nm	1000 nm	210 V	Avalanche	-20 ░C	60 °C	200 ps	35 A/W	Surface Mount
Excelitas Technologies C30737LH-500-90C	230 µm	900 nm	1 nA	6-CLCC	500 nm	1000 nm	260 V	Avalanche	-40 C	85 °C	900 ps	60 A/W	Surface Mount
Excelitas Technologies C30737LH-230-90C	80 µm	900 nm	500 pA	6-CLCC	500 nm	1000 nm	260 V	Avalanche	-40 C	85 °C	900 ps	60 A/W	Surface Mount
