LBCN Series
Manufacturer: Taiyo Yuden
Beta
⌘K
POWER INDUCTOR (SMD), 240 NH, 4.8 A, SHIELDED, 5.5 A, LBCN SERIES, 0805 [2012 METRIC]
| Part | Inductance | Type | Current Rating (Amps) | Package / Case | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Inductance Frequency - Test | Operating Temperature [Min] | Operating Temperature [Max] | Current - Saturation (Isat) | Supplier Device Package | Material - Core | Tolerance | Shielding | DC Resistance (DCR) [Max] | Mounting Type | Package / Case | Size / Dimension [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Taiyo Yuden | 240 nH | Multilayer | 5.4 A | 0805 | 0.039 in | 1 mm | 2 mm | 1.25 mm | 0.049 " | 0.079 in | 1 MHz | -55 C | 150 °C | 4.8 A | 0805 | Metal | 20 % | Unshielded | 20 mOhm | Surface Mount | ||

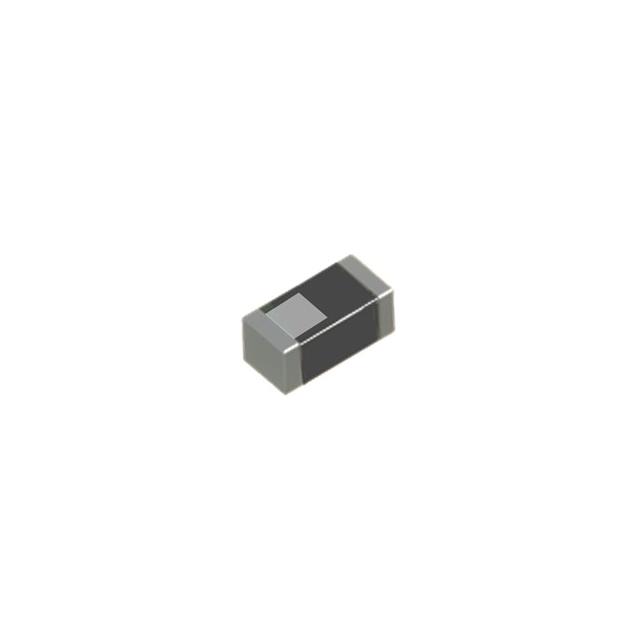

 Taiyo Yuden | 470 nH | Multilayer | 3 A | 0603 | 0.039 in | 1 mm | 1.6 mm | 0.031 in | 0.063 " | 1 MHz | -55 C | 150 °C | 2.6 A | Metal | 20 % | Unshielded | 65 mOhm | Surface Mount | 1608 Metric | 0.8 mm |
