681S21W Series
Manufacturer: NorComp Inc.
Beta
⌘K

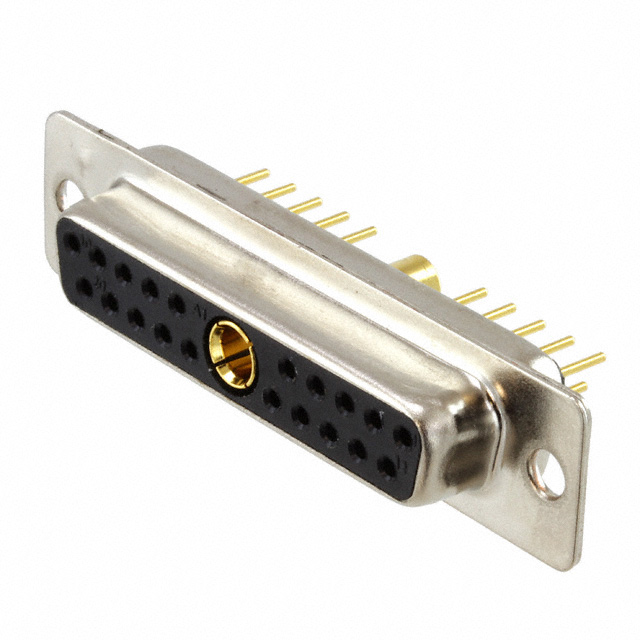

COMBINATION LAYOUT D SUB CONNECTOR, SEAL-D, IP68, SEAL-D 681S SERIES, DB-21W1, RECEPTACLE
| Part | Color | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Dielectric Material | Mounting Type | Connector Style | Contact Type | Termination | Shell Material, Finish | Contact Finish | Number of Rows [custom] | Number of Positions | Contact Finish Thickness | Shell Size, Connector Layout | Shell Size, Connector Layout | Connector Type | Flange Feature | Ingress Protection | Current Rating (Amps) [Max] | Current Rating (Amps) [Min] | Current Rating (Amps) | Material Flammability Rating | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NorComp Inc. | Black | Copper Alloy | 155 C | -55 C | Polybutylene Terephthalate (PBT) | Panel Mount Through Hole | Combo D-Sub | Signal and Power | Solder | Nickel Plated Steel | Gold | 2 | 21 | Flash | 21W1 B DB | 3 | Receptacle Female Sockets | Housing/Shell (Unthreaded) | IP67 - Dust Tight Waterproof | 40 A | 20 A | 5 A | UL94 V-0 | |
 NorComp Inc. | Black | Copper Alloy | 155 C | -55 C | Polybutylene Terephthalate (PBT) | Panel Mount Through Hole | Combo D-Sub | Signal and Power | Solder | Nickel Plated Steel | Gold | 2 | 21 | Flash | 4 (DC C) - 21WA4 | Plug Male Pins | Housing/Shell (Unthreaded) | IP67 - Dust Tight Waterproof | 5 A 40 A | UL94 V-0 | Grounding Indents |
