83662 Series
Manufacturer: Belden Inc.
Beta
⌘K

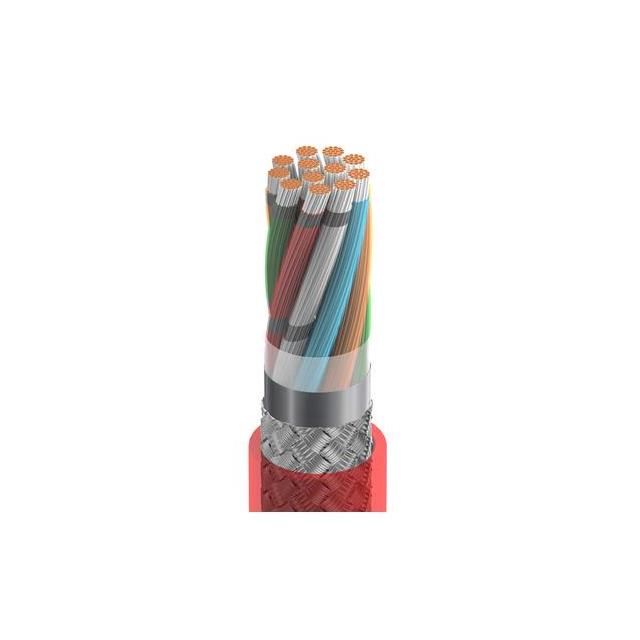

CABLE 12COND 18AWG RED SHLD
| Part | Shield Coverage | Shield Material | Conductor Material | Cable Type | Voltage | Usage | Jacket Color | Operating Temperature [Min] | Operating Temperature [Max] | Number of Conductors | Wire Gauge | Jacket (Insulation) Material | Ratings | Conductor Insulation | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Shield Type | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Thickness [x] | Jacket (Insulation) Thickness [x] | Length [x] | Length [x] | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 85 % 100 % | Aluminum Copper Tinned | Copper Tinned | Multi-Conductor | 300 VDC | Audio Control Instrumentation | Red | -70 °C | 200 °C | 12 | 18 AWG | Fluorinated Ethylene-Propylene (FEP) Plenum | UL Style CMP | Fluorinated Ethylene-Propylene (FEP) | 7.52 mm | 0.296 in | Braid Foil | 30 AWG | 19 | 0.381 mm | 0.015 in | 100 ft | 30.5 m | ||
Belden Inc. | 85 % 100 % | Aluminum Copper Tinned | Copper Tinned | Multi-Conductor | 300 VDC | Audio Control Instrumentation | Red | -70 °C | 200 °C | 12 | 18 AWG | Fluorinated Ethylene-Propylene (FEP) Plenum | UL Style CMP | Fluorinated Ethylene-Propylene (FEP) | 7.52 mm | 0.296 in | Braid Foil | 30 AWG | 19 | 0.381 mm | 0.015 in | 152.4 m | 500 ft | ||
Belden Inc. | 85 % 100 % | Aluminum Copper Tinned | Copper Tinned | Multi-Conductor | 300 VDC | Audio Control Instrumentation | Red | -70 °C | 200 °C | 12 | 18 AWG | Fluorinated Ethylene-Propylene (FEP) Plenum | UL Style CMP | Fluorinated Ethylene-Propylene (FEP) | 7.52 mm | 0.296 in | Braid Foil | 30 AWG | 19 | 0.381 mm | 0.015 in | 304.8 m | 1000 ft |
