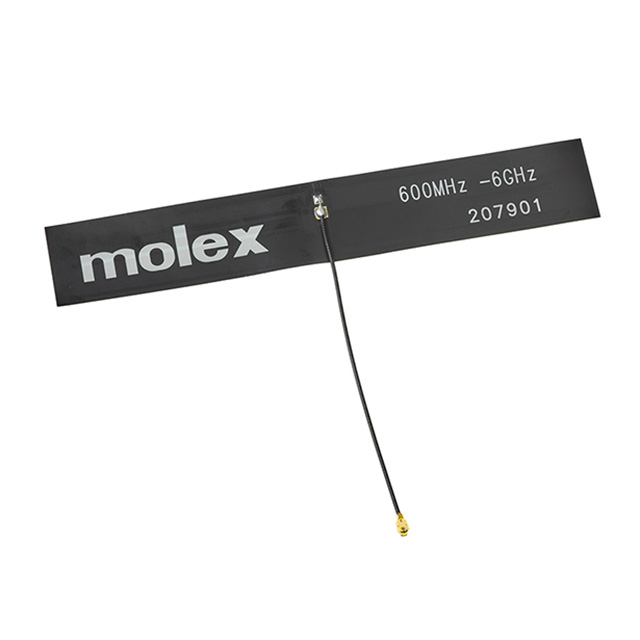

2079019 Series

600MHz-6GHz Monopole Low-Profile Automotive Flexible Antenna, 150.00mm Cable Length, Compatible with MHF-1 Plug

Manufacturer: Molex

Catalog

600MHz-6GHz Monopole Low-Profile Automotive Flexible Antenna, 150.00mm Cable Length, Compatible with MHF-1 Plug

Part	Mounting Type	Termination	Return Loss	Height (Max) [Max]	Height (Max) [Max]	RF Family/Standard	Gain	Applications	Frequency (Center/Band)	Frequency Group	Antenna Type	Frequency Range [Max]	Frequency Range [Min]	Number of Bands	Features	Features	Height (Max)	Power - Max [Max]
Molex 2079019250	Adhesive	MHF1	-5 dB -3 dB	2 mm	0.079 in	Cellular	2.3 dBi 4.5 dBi 4.8 dBi	LTE	2.25 GHz 4.5 GHz 780 MHz	Wide Band	Flat Patch	3 GHz 6 GHz 960 MHz	1.5 GHz 3 GHz 600 MHz	3

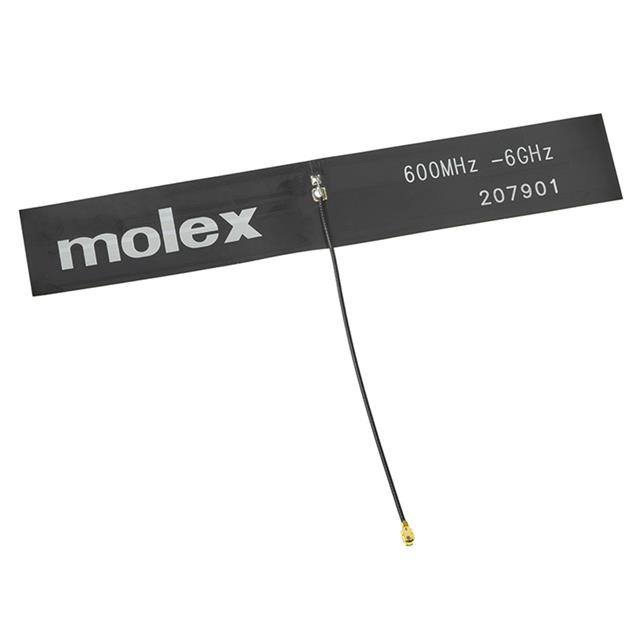

Molex 2079019200	Adhesive	MHF1	-5 dB -3 dB	2 mm	0.079 in	Cellular	2.4 dBi 4.6 dBi 5 dBi	LTE	2.25 GHz 4.5 GHz 780 MHz	Wide Band	Flat Patch	3 GHz 6 GHz 960 MHz	1.5 GHz 3 GHz 600 MHz	3	Cable	200 mm
Molex 2079019300	Adhesive	MHF1	-5 dB -3 dB	2 mm	0.079 in	Cellular	2.2 dBi 4.3 dBi 4.6 dBi	LTE	2.25 GHz 4.5 GHz 780 MHz	Wide Band	Flat Patch	3 GHz 6 GHz 960 MHz	1.5 GHz 3 GHz 600 MHz	3	Cable	300 mm
Molex 2079010100	Adhesive	I-PEX MHF1 U.FL (UMCC)	-5 dB -3 dB		0.006 in			General Purpose	2.25 GHz 4.5 GHz 780 MHz	Wide Band	PCB Trace	3 GHz 6 GHz 960 MHz	1.5 GHz 3 GHz 600 MHz	3	Cable	100 mm	0.15 mm	2 W

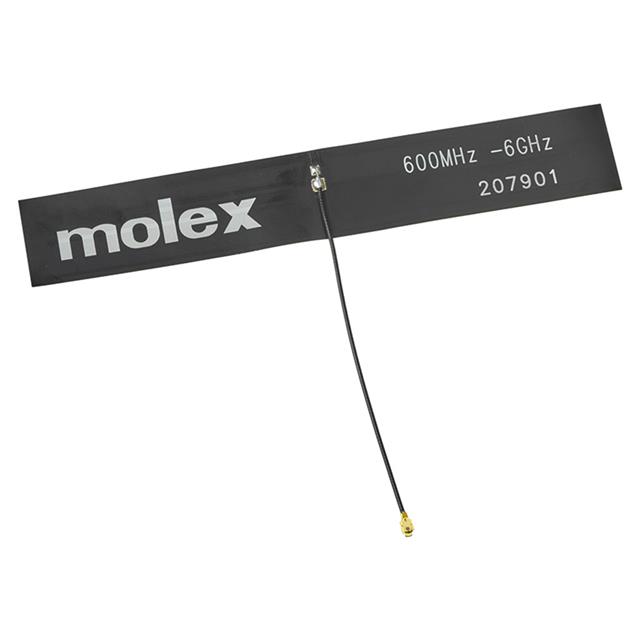

Molex 2079010200			-5 dB -3 dB			Cellular	2.4 dBi 4.6 dBi 5 dBi	LTE	2.25 GHz 4.5 GHz 780 MHz	Wide Band		3 GHz 6 GHz 960 MHz	1.5 GHz 3 GHz 600 MHz	3	Cable	200 mm
Molex 2079010300

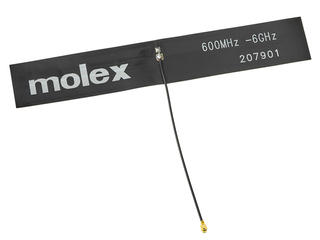

Molex 2079019150	Adhesive	MHF1	-5 dB -3 dB	2 mm	0.079 in	Cellular	2.5 dBi 4.8 dBi 5.2 dBi	LTE	2.25 GHz 4.5 GHz 780 MHz	Wide Band	Flat Patch	3 GHz 6 GHz 960 MHz	1.5 GHz 3 GHz 600 MHz	3	Cable - 150mm
Molex 2079019050	Adhesive	MHF1	-5 dB -3 dB	2 mm	0.079 in	Cellular	2.7 dBi 5 dBi 5.6 dBi	LTE	2.25 GHz 4.5 GHz 780 MHz	Wide Band	Flat Patch	3 GHz 6 GHz 960 MHz	1.5 GHz 3 GHz 600 MHz	3	Cable	50 mm

600MHz-6GHz Monopole Low-Profile Automotive Flexible Antenna, 150.00mm Cable Length, Compatible with MHF-1 Plug
