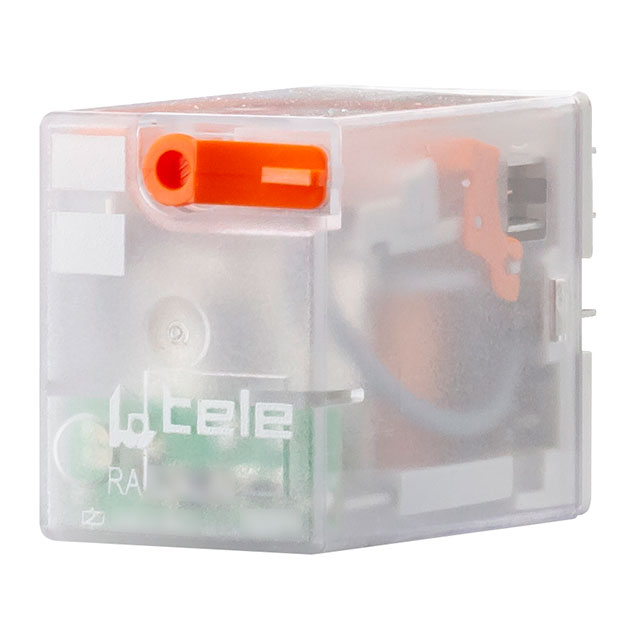

RA 615 Series
Manufacturer: TELE Controls Inc
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
RELAY GEN PURPOSE DPDT 12A 115V
| Part | Coil Resistance | Switching Voltage AC (Max) | Switching Voltage DC (Max) | Must Release Voltage | Termination Style | Contact Rating (Current) | Operating Temperature (Min) | Operating Temperature (Max) | Mounting Type | Operate Time | Relay Type | Contact Material | Coil Type | Coil Current | Coil Voltage | Features | Release Time | Must Operate Voltage | Contact Form |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TELE Controls Inc | 3.61 kOhms | 250 VAC | 24 VDC | 23 VAC | Plug In | 12 A | -40 °C | 55 °C | Socketable | 10 ms | General Purpose | Silver Nickel (AgNi) | Non Latching | 31.9 mA | 115 VAC | Lighted Indicator Test Button | 8 ms | 95 VAC | 2 2 Form C C DPDT Form |
