2301845 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

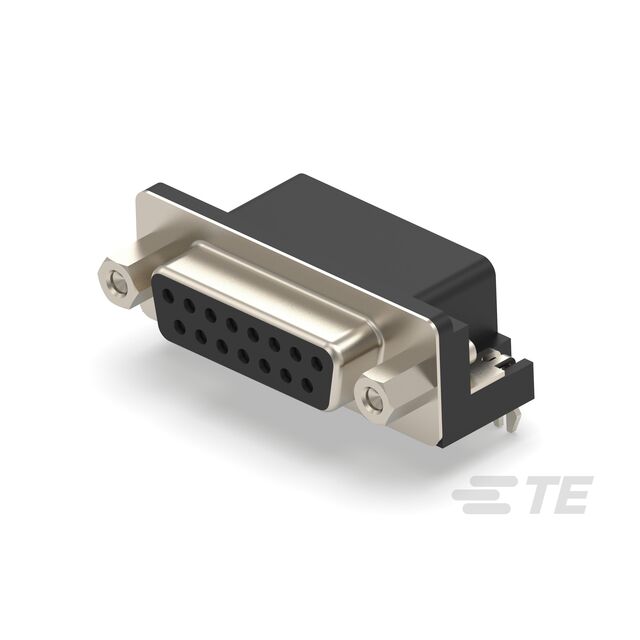

AMPL REC HD20, R/A, 15P, B/L,4-40 A/LOCK
| Part | Number of Positions | Shell Material, Finish | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish Thickness | Contact Finish Thickness | Flange Feature | Backset Spacing | Backset Spacing | Contact Material | Shell Size, Connector Layout | Mounting Type | Current Rating (Amps) | Number of Rows | Termination | Dielectric Material | Contact Type | Voltage Rating | Connector Type | Color | Material Flammability Rating | Connector Style | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 15 | Nickel Plated Steel | 105 ░C | -55 °C | 15 µin | 0.38 µm | Female Screwlock (4-40) Mating Side | 0.411 in | 10.43 mm | Brass | 2 | Through Hole Right Angle | 2 A | 2 | Solder | Polybutylene Terephthalate (PBT) Glass Filled | Signal | 250 VAC | Receptacle Female Sockets | Black | UL94 V-0 | D-Sub | Gold |
