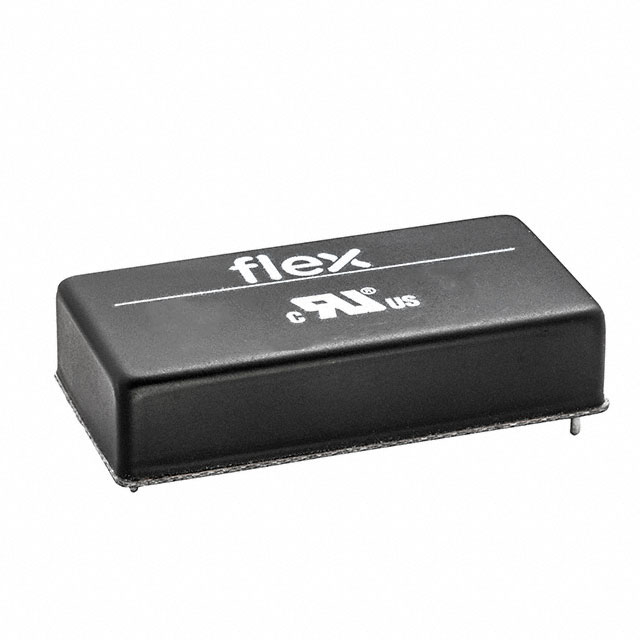

PKE731 Series

Catalog

ISOLATED DC/DC CONVERTERS - THROUGH HOLE

Part	Standard Number	Voltage - Input (Min) [Min]	Type	Control Features	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Number of Outputs	Voltage - Isolation	Power (Watts)	Package / Case	Efficiency	Voltage - Output 1	Features	Mounting Type	Current - Output (Max) [Max]	Voltage - Input (Max) [Max]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]
Flex Power Modules PKE7313API	50155 62368-1	43 V	Isolated Module	Active Low Enable	-40 °C	110 °C	ITE (Commercial) Railway	1	3000 V	30 Watts	6-DIP Module	90 %	12 V	Adjustable Output Remote On/Off Remote Sense	Through Hole	2.5 A	160 V	2 in	0.47 "	25.4 mm	11.9 mm	50.8 mm	1 "
Flex Power Modules PKE7316ZAPI	50155 62368-1	43 V	Isolated Module	Active Low Enable	-40 °C	110 °C	ITE (Commercial) Railway	1	3000 V	30 Watts	6-DIP Module	90 %	24 V	Adjustable Output Remote On/Off Remote Sense	Through Hole	1.25 A	160 V	2 in	0.47 "	25.4 mm	11.9 mm	50.8 mm	1 "
Flex Power Modules PKE7315API	50155 62368-1	43 V	Isolated Module	Active Low Enable	-40 °C	110 °C	ITE (Commercial) Railway	1	3000 V	30 Watts	6-DIP Module	91 %	15 V	Adjustable Output Remote On/Off Remote Sense	Through Hole	2 A	160 V	2 in	0.47 "	25.4 mm	11.9 mm	50.8 mm	1 "
Flex Power Modules PKE7311API	50155 62368-1	43 V	Isolated Module	Active Low Enable	-40 °C	110 °C	ITE (Commercial) Railway	1	3000 V	30 Watts	6-DIP Module	91 %	5 V	Adjustable Output Remote On/Off Remote Sense	Through Hole	6 A	160 V	2 in	0.47 "	25.4 mm	11.9 mm	50.8 mm	1 "
Flex Power Modules PKE7316JAPI	50155 62368-1	43 V	Isolated Module	Active Low Enable	-40 °C	110 °C	ITE (Commercial) Railway	1	3000 V	30 Watts	6-DIP Module	91 %	48 V	Adjustable Output Remote On/Off Remote Sense	Through Hole	625 mA	160 V	2 in	0.47 "	25.4 mm	11.9 mm	50.8 mm	1 "
