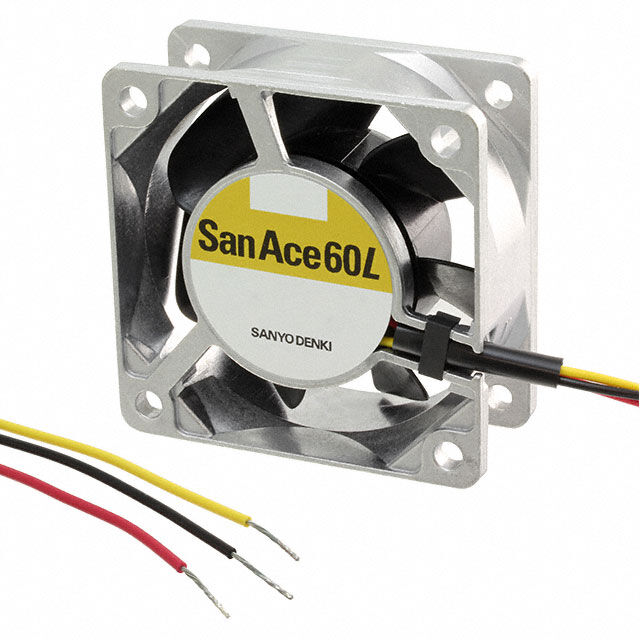

109L0612 Series

Catalog

FAN AXIAL 60X25MM 12VDC WIRE

Part	Material - Frame	Lifetime @ Temp.	Material - Blade	Air Flow	Air Flow	Voltage Range [Min]	Voltage Range [Max]	Current Rating (Amps)	Features	Static Pressure	Static Pressure	Termination	Bearing Type	Operating Temperature [Min]	Operating Temperature [Max]	Fan Type	RPM	Width [y]	Noise	Approval Agency	Voltage - Rated	Size / Dimension [z]	Size / Dimension [x]	Weight [custom]	Weight [custom]	Power (Watts)
Sanyo Denki America Inc. 109L0612S401	Aluminum	100000 Hrs	Plastic	0.644 m³/min	23 CFM	10.2 VDC	13.8 VDC	0.17 A	Speed Sensor (Tach)	0.228 in H2O	56.8 Pa	3 Wire Leads	Ball	-20 ░C	70 °C	Tubeaxial	4600 RPM	25 mm	33 dB(A)	CSA TUV UR	12 VDC	60 mm	60 mm	100.7 g	0.222 lb
Sanyo Denki America Inc. 109L0612H401	Aluminum	100000 Hrs	Plastic	0.524 mł/min	18.7 CFM	10.2 VDC	13.8 VDC	110 mA	Speed Sensor (Tach)			3 Wire Leads	Ball	-20 ░C	70 °C	Tubeaxial	3800 RPM	25 mm	28 dB	CSA TUV UR	12 VDC	60 mm	60 mm	100.7 g	0.222 lb	1.32 W
Sanyo Denki America Inc. 109L0612G401	Aluminum	100000 Hrs	Plastic	0.77 m³/min	27.5 CFM	10.2 VDC	13.8 VDC	0.24 A	Speed Sensor (Tach)	0.35 in H2O	87.2 Pa	3 Wire Leads	Ball	-20 ░C	70 °C	Tubeaxial	5600 RPM	25 mm	39 dB(A)	CSA TUV UR	12 VDC	60 mm	60 mm	100.7 g	0.222 lb	2.88 W
Sanyo Denki America Inc. 109L0612F401	Aluminum	100000 Hrs	Plastic	0.434 m³/min	15.5 CFM	10.2 VDC	13.8 VDC	0.09 A	Speed Sensor (Tach)	0.118 in H2O	29.4 Pa	3 Wire Leads	Ball	-20 ░C	70 °C	Tubeaxial	3200 RPM	25 mm	24 dB	CSA TUV UR	12 VDC	60 mm	60 mm	100.7 g	0.222 lb	1.08 W
