OCP-PCT4216 Series

Catalog

OPTOISOLTR 5KV 4CH TRANS 16-SMD

Part	Current - DC Forward (If) (Max) [Max]	Current - Output / Channel [custom]	Voltage - Output (Max) [Max]	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Number of Channels [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Output Type	Vce Saturation (Max) [Max]	Mounting Type	Current Transfer Ratio (Max) [Max]	Current Transfer Ratio (Min) [Min]	Supplier Device Package	Package / Case	Package / Case [x]	Package / Case [x]

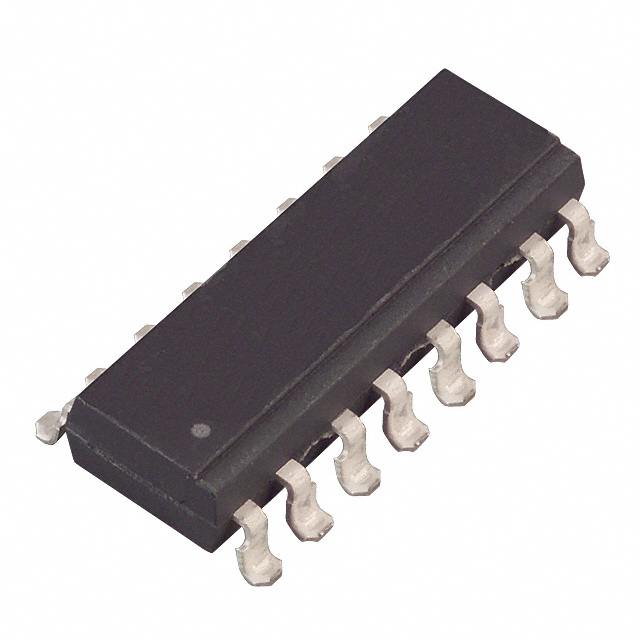

Lumex Opto/Components Inc. OCP-PCT4216/A-TR	50 mA	50 mA	60 V	4 µs	5 µs	4	-30 ░C	100 °C	Transistor	300 mV	Surface Mount	600 %	60 %	16-SMD	16-SMD Gull Wing

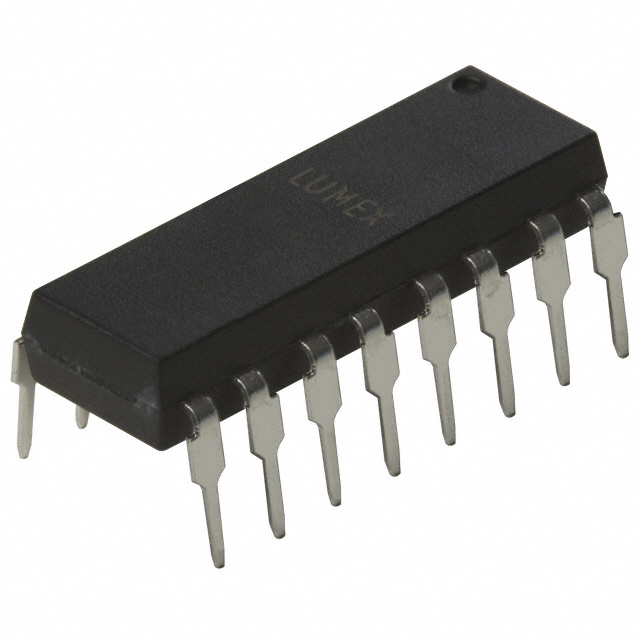

Lumex Opto/Components Inc. OCP-PCT4216/A	50 mA	50 mA	60 V	4 µs	5 µs	4	-30 ░C	100 °C	Transistor	300 mV	Through Hole	600 %	60 %	16-DIP	16-DIP	0.3 in	7.62 mm
