GRPB092 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K

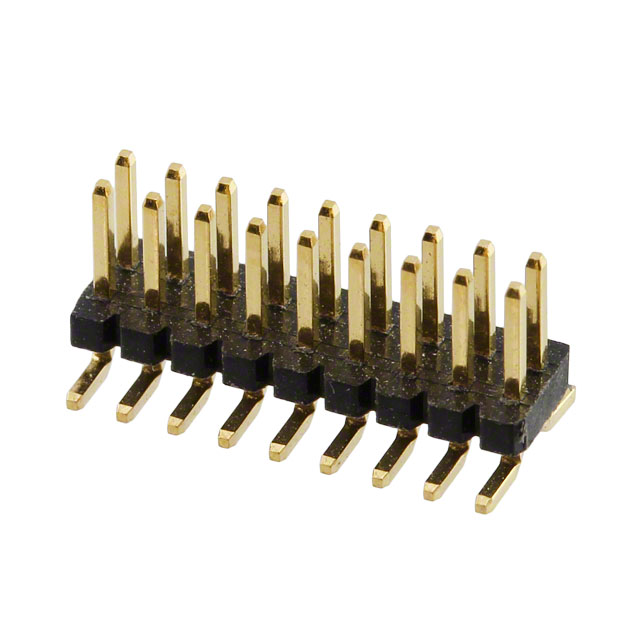

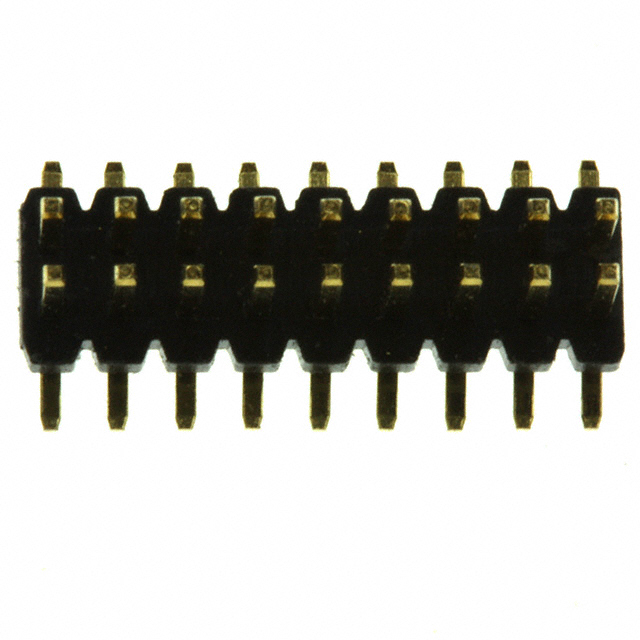

CONN HEADER SMD 18POS 1.27MM
| Part | Contact Finish Thickness - Post | Shrouding | Contact Finish Thickness - Mating | Material Flammability Rating | Contact Material | Number of Positions Loaded | Pitch - Mating | Pitch - Mating | Connector Type | Insulation Height [z] | Insulation Height [z] | Contact Finish - Mating | Row Spacing - Mating | Row Spacing - Mating | Style | Contact Type | Contact Finish - Post | Fastening Type | Contact Length - Mating | Contact Length - Mating | Contact Shape | Termination | Number of Rows [custom] | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions | Insulation Material | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | Flash | Unshrouded | Flash | UL94 V-0 | Brass | All | 1.27 mm | 0.05 in | Header | 1 mm | 0.039 in | Gold | 0.05 in | 1.27 mm | Board to Board Cable | Male Pin | Gold | Push-Pull | 3 mm | 0.118 in | Square | Solder | 2 | Surface Mount | -40 C | 105 ░C | 18 | Nylon 9T Polyamide (PA9T) | |
 Sullins Connector Solutions | Flash | Unshrouded | Flash | UL94 V-0 | Brass | All | 1.27 mm | 0.05 in | Header | 1 mm | 0.039 in | Gold | 0.05 in | 1.27 mm | Board to Board Cable | Male Pin | Gold | Push-Pull | 3 mm | 0.118 in | Square | Solder | 2 | Surface Mount | -40 C | 105 ░C | 18 | Nylon 9T Polyamide (PA9T) | Board Guide |
