DAC60508 Series

True 12-Bit, 8-channel, SPI, Vout DAC in tiny WCSP package with precision internal reference

Catalog

True 12-Bit, 8-channel, SPI, Vout DAC in tiny WCSP package with precision internal reference

Part	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Settling Time	Voltage - Supply, Digital [Min]	Voltage - Supply, Digital [Max]	Voltage - Supply, Analog [Min]	Voltage - Supply, Analog [Max]	INL/DNL (LSB)	Mounting Type	Number of Bits	Data Interface	Output Type	Supplier Device Package	Reference Type	Number of D/A Converters	Architecture

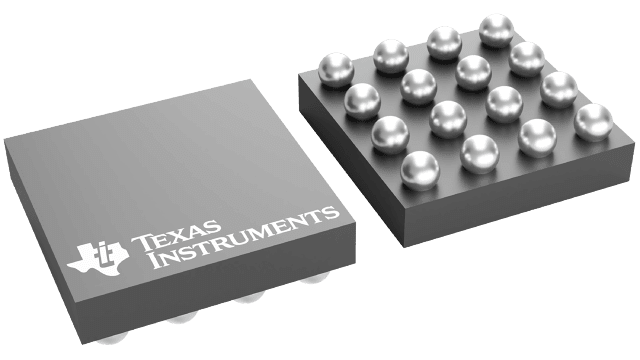

Texas Instruments DAC60508MCYZFR	16-UFBGA DSBGA	125 °C	-40 °C	5 µs	1.7 V	5.5 V	2.7 V	5.5 V	0.5 LSB	Surface Mount	12 bits	SPI	Voltage - Buffered	16-DSBGA	External Internal	8	R-2R
Texas Instruments DAC60508ZCYZFR	16-UFBGA DSBGA	125 °C	-40 °C	5 µs	1.7 V	5.5 V	2.7 V	5.5 V	0.5 LSB	Surface Mount	12 bits	SPI	Voltage - Buffered	16-DSBGA	External Internal	8	R-2R
Texas Instruments DAC60508ZCRTET	16-WFQFN Exposed Pad	125 °C	-40 °C	5 µs	1.7 V	5.5 V	2.7 V	5.5 V	0.5 LSB	Surface Mount	12 bits	SPI	Voltage - Buffered	16-WQFN (3x3)	External Internal	8	R-2R
Texas Instruments DAC60508MCYZFT	16-UFBGA DSBGA	125 °C	-40 °C	5 µs	1.7 V	5.5 V	2.7 V	5.5 V	0.5 LSB	Surface Mount	12 bits	SPI	Voltage - Buffered	16-DSBGA	External Internal	8	R-2R
Texas Instruments DAC60508MRTER	16-WFQFN Exposed Pad	125 °C	-40 °C	5 µs	1.7 V	5.5 V	2.7 V	5.5 V	0.5 LSB	Surface Mount	12 bits	SPI	Voltage - Buffered	16-WQFN (3x3)	External Internal	8	R-2R
Texas Instruments DAC60508MRTET	16-WFQFN Exposed Pad	125 °C	-40 °C	5 µs	1.7 V	5.5 V	2.7 V	5.5 V	0.5 LSB	Surface Mount	12 bits	SPI	Voltage - Buffered	16-WQFN (3x3)	External Internal	8	R-2R
Texas Instruments DAC60508ZYZFR	16-UFBGA DSBGA	125 °C	-40 °C	5 µs	1.7 V	5.5 V	2.7 V	5.5 V	0.5 LSB	Surface Mount	12 bits	SPI	Voltage - Buffered	16-DSBGA	External Internal	8	R-2R
Texas Instruments DAC60508ZRTER	16-WFQFN Exposed Pad	125 °C	-40 °C	5 µs	1.7 V	5.5 V	2.7 V	5.5 V	0.5 LSB	Surface Mount	12 bits	SPI	Voltage - Buffered	16-WQFN (3x3)	External Internal	8	R-2R
Texas Instruments DAC60508ZCYZFT	16-UFBGA DSBGA	125 °C	-40 °C	5 µs	1.7 V	5.5 V	2.7 V	5.5 V	0.5 LSB	Surface Mount	12 bits	SPI	Voltage - Buffered	16-DSBGA	External Internal	8	R-2R

Catalog

True 12-Bit, 8-channel, SPI, Vout DAC in tiny WCSP package with precision internal reference

Key Features

• PerformanceINL: ±1 LSB Maximum at 16-Bit ResolutionTUE: ±0.1% of FSR MaximumIntegrated 2.5 V Precision Internal ReferenceInitial Accuracy: ±5 mV MaximumLow Drift: 2 ppm/°C Typical, DAC80508High Drive Capability: 20 mA with 0.5 V from Supply RailsFlexible Output ConfigurationUser Selectable Gain: 2, 1 or ½Reset to Zero Scale or MidscaleClear Output Function: DACx0508CWide Operating RangePower Supply: 2.7 V to 5.5 VTemperature Range: –40˚C to 125˚C50 MHz SPI Compatible Serial Interface1.7 V to 5.5 V OperationDaisy Chain OperationCRC Error CheckLow Power: 0.6 mA/Channel at 5.5 VSmall Packages:3 mm × 3 mm, 16-Pin WQFN2.4 mm x 2.4 mm, 16-Pin DSBGAPerformanceINL: ±1 LSB Maximum at 16-Bit ResolutionTUE: ±0.1% of FSR MaximumIntegrated 2.5 V Precision Internal ReferenceInitial Accuracy: ±5 mV MaximumLow Drift: 2 ppm/°C Typical, DAC80508High Drive Capability: 20 mA with 0.5 V from Supply RailsFlexible Output ConfigurationUser Selectable Gain: 2, 1 or ½Reset to Zero Scale or MidscaleClear Output Function: DACx0508CWide Operating RangePower Supply: 2.7 V to 5.5 VTemperature Range: –40˚C to 125˚C50 MHz SPI Compatible Serial Interface1.7 V to 5.5 V OperationDaisy Chain OperationCRC Error CheckLow Power: 0.6 mA/Channel at 5.5 VSmall Packages:3 mm × 3 mm, 16-Pin WQFN2.4 mm x 2.4 mm, 16-Pin DSBGA

Description

The DACx0508 is a pin-compatible family of low power, eight-channel, buffered voltage-output, digital-to-analog converters (DACs) with 16-, 14- and 12-bit resolution. The DACx0508 includes a 2.5-V, 5-ppm/°C internal reference, eliminating the need for an external precision reference in most applications. A user selectable gain configuration provides full-scale output voltages of 1.25 V (gain = ½), 2.5 V (gain = 1) or 5 V (gain = 2). The device operates from a single 2.7-V to 5.5-V supply, is specified monotonic and provides high linearity of ±1 LSB INL. Communication to the DACx0508 is performed through a serial interface that operates at clock rates up to 50 MHz. The VIO pin enables serial interface operation from 1.7 V to 5.5 V. The DACx0508 flexible interface enables operation with a wide range of industry-standard microprocessors and microcontrollers. The DACx0508 incorporates a power-on-reset circuit that powers up and maintains the DAC outputs at either zero scale or midscale until a valid code is written to the device. The device consumes low current of 0.6 mA/channel at 5.5 V, making it suitable for battery-operated equipment. A per-channel power-down feature reduces the device current consumption to 15 µA. The DACx0508 is characterized for operation over the temperature range of –40°C to 125°C and is available in small packages. The DACx0508 is a pin-compatible family of low power, eight-channel, buffered voltage-output, digital-to-analog converters (DACs) with 16-, 14- and 12-bit resolution. The DACx0508 includes a 2.5-V, 5-ppm/°C internal reference, eliminating the need for an external precision reference in most applications. A user selectable gain configuration provides full-scale output voltages of 1.25 V (gain = ½), 2.5 V (gain = 1) or 5 V (gain = 2). The device operates from a single 2.7-V to 5.5-V supply, is specified monotonic and provides high linearity of ±1 LSB INL. Communication to the DACx0508 is performed through a serial interface that operates at clock rates up to 50 MHz. The VIO pin enables serial interface operation from 1.7 V to 5.5 V. The DACx0508 flexible interface enables operation with a wide range of industry-standard microprocessors and microcontrollers. The DACx0508 incorporates a power-on-reset circuit that powers up and maintains the DAC outputs at either zero scale or midscale until a valid code is written to the device. The device consumes low current of 0.6 mA/channel at 5.5 V, making it suitable for battery-operated equipment. A per-channel power-down feature reduces the device current consumption to 15 µA. The DACx0508 is characterized for operation over the temperature range of –40°C to 125°C and is available in small packages.
