725-142 Series

Manufacturer: EDAC Inc.

Catalog

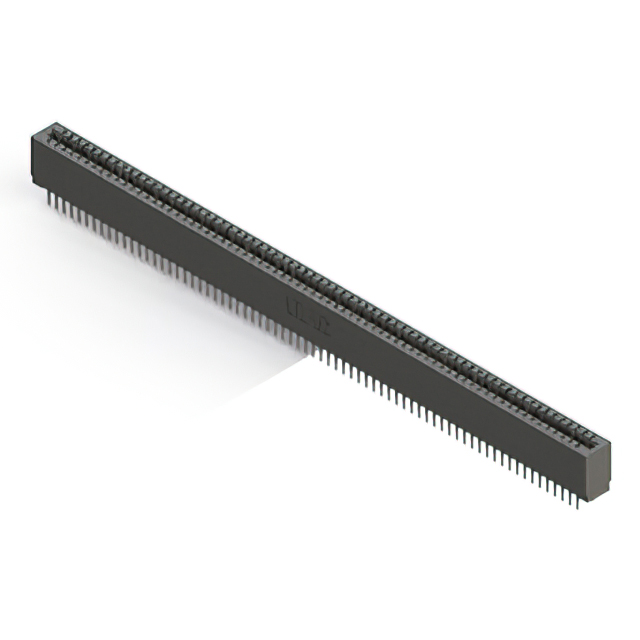

CONN EDGE DUAL FML 142POS 0.100

Part	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish	Contact Type	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Mounting Type	Card Type	Gender	Contact Finish Thickness	Contact Finish Thickness	Termination	Pitch [x]	Pitch [x]	Number of Rows	Number of Positions/Bay/Row [custom]	Termination Rows	Read Out	Color	Material - Insulation	Number of Positions
EDAC Inc. 725-142-540-201	Copper Alloy	-40 °C	105 ░C	Gold	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole	Non Specified - Dual Edge	Female	0.76 Ám	30 Áin	Press-Fit Wire Wrap	2.54 mm	0.1 in	2	71	2	Dual	Black	Polyester Thermoplastic	142
EDAC Inc. 725-142-545-201	Copper Alloy	-40 °C	105 ░C	Gold	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole	Non Specified - Dual Edge	Female	0.76 Ám	30 Áin	Press-Fit Wire Wrap	2.54 mm	0.1 in	2	71	2	Dual	Black	Polyester Thermoplastic	142
EDAC Inc. 725-142-520-201	Copper Alloy	-40 °C	105 ░C	Gold	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole	Non Specified - Dual Edge	Female	0.76 Ám	30 Áin	Press-Fit	2.54 mm	0.1 in	2	71	2	Dual	Black	Polyester Thermoplastic	142
EDAC Inc. 725-142-525-201	Copper Alloy	-40 °C	105 ░C	Gold	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole	Non Specified - Dual Edge	Female	0.76 Ám	30 Áin	Press-Fit	2.54 mm	0.1 in	2	71	2	Dual	Black	Polyester Thermoplastic	142
EDAC Inc. 725-142-541-201	Copper Alloy	-40 °C	105 ░C	Gold	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole	Non Specified - Dual Edge	Female	0.76 Ám	30 Áin	Press-Fit Wire Wrap	2.54 mm	0.1 in	2	71	2	Dual	Black	Polyester Thermoplastic	142
EDAC Inc. 725-142-560-201	Copper Alloy	-40 °C	105 ░C	Gold	Cantilever Make Before Break	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole	Non Specified - Dual Edge	Female	0.76 Ám	30 Áin	Press-Fit	2.54 mm	0.1 in	2	71	2	Dual	Black	Polyester Thermoplastic	142
