ERZ-V05 Series

Manufacturer: Panasonic Industrial Automation Sales

Catalog

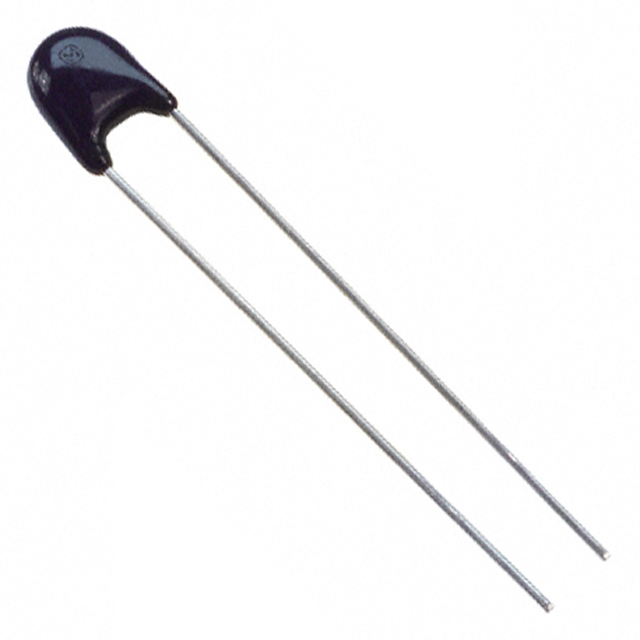

VARISTOR 39V 250A DISC 7MM

Part	Maximum AC Volts [Max]	Number of Circuits	Energy	Mounting Type	Varistor Voltage (Max) [Max]	Maximum DC Volts [Max]	Package / Case [diameter]	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Varistor Voltage (Typ)	Varistor Voltage (Min) [Min]	Capacitance @ Frequency	Current - Surge
Panasonic Industrial Automation Sales ERZ-V05D390	25 V	1	1.2 J	Through Hole	43 V	31 V	7 mm	Disc	85 °C	-40 °C	39 V	35 V	700 pF	250 A
Panasonic Industrial Automation Sales ERZ-V05D221	140 V	1	9 J	Through Hole	242 V	180 V	7 mm	Disc	85 °C	-40 °C	220 V	198 V	110 pF	800 A
Panasonic Industrial Automation Sales ERZ-V05D331		1	13 J	Through Hole	363 V	270 V	7 mm	Disc	85 °C	-40 °C	330 V	297 V	80 pF	800 A
Panasonic Industrial Automation Sales ERZ-V05D391	250 V	1	17 J	Through Hole	429 V	320 V	7 mm	Disc	85 °C	-40 °C	390 V	351 V	80 pF	800 A
Panasonic Industrial Automation Sales ERZ-V05D431	275 V	1	13.5 J	Through Hole	473 V	350 V	7 mm	Disc	85 °C	-40 °C	430 V	387 V	70 pF	800 A
Panasonic Industrial Automation Sales ERZ-V05D180	11 V	1	0.6 J	Through Hole	20 V	14 V	7 mm	Disc	85 °C	-40 °C	18 V	16 V	1600 pF	250 A
Panasonic Industrial Automation Sales ERZ-V05D560	35 V	1	1.8 J	Through Hole	62 V	45 V	7 mm	Disc	85 °C	-40 °C	56 V	50 V	600 pF	250 A
Panasonic Industrial Automation Sales ERZ-V05D201	130 V	1	8.5 J	Through Hole	225 V	170 V	7 mm	Disc	85 °C	-40 °C	200 V	185 V	120 pF	800 A
Panasonic Industrial Automation Sales ERZ-V05D330	20 V	1	1.1 J	Through Hole	36 V	26 V	7 mm	Disc	85 °C	-40 °C	33 V	30 V	1400 pF	250 A
Panasonic Industrial Automation Sales ERZ-V05D241	150 V	1	10.5 J	Through Hole	264 V	200 V	7 mm	Disc	85 °C	-40 °C	240 V	216 V	100 pF	800 A
