896-041 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SGL FMALE 41POS 0.125

Part	Termination Rows	Material - Insulation	Termination	Card Thickness [Max]	Card Thickness [Min]	Flange Feature	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish	Number of Rows	Card Type	Read Out	Gender	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Color	Number of Positions/Bay/Row	Contact Material	Contact Type	Pitch	Pitch	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 896-041-500-108	1	Polyphenylene Sulfide (PPS)	Solder Eyelet(s)	0.07 in 1.78 mm	0.054 in 1.37 mm	4-40 Flush Mount Threaded Insert Top Opening	41	125 °C	-40 C	Gold	1	Non Specified - Single Edge	Single	Female	0.25 Ám	10 Áin	Through Hole	Black	41	Copper Alloy	Cantilever	3.18 mm	0.125 in
EDAC Inc. 896-041-526-112	1	Polyphenylene Sulfide (PPS)	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	Flush Mount Side Opening Unthreaded	41	125 °C	-40 C	Gold	1	Non Specified - Single Edge	Single	Female	0.25 Ám	10 Áin	Through Hole	Black	41	Copper Alloy	Cantilever	3.18 mm	0.125 in	0.128 "	3.25 mm
EDAC Inc. 896-041-540-103	1	Polyphenylene Sulfide (PPS)	Wire Wrap	0.07 in 1.78 mm	0.054 in 1.37 mm	Floating Bobbin Flush Mount	41	125 °C	-40 C	Gold	1	Non Specified - Single Edge	Single	Female	0.25 Ám	10 Áin	Through Hole	Black	41	Copper Alloy	Cantilever	3.18 mm	0.125 in	0.116 "	2.95 mm

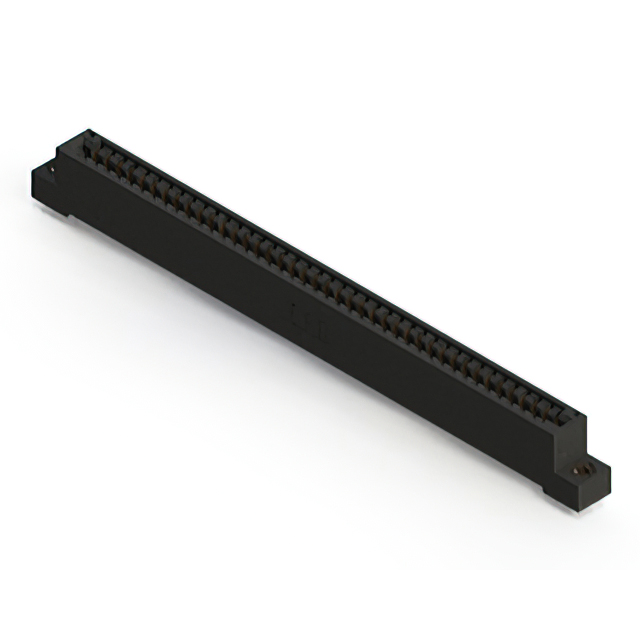

EDAC Inc. 896-041-521-107	1	Polyphenylene Sulfide (PPS)	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	Flush Mount M3 Threaded Insert Top Opening	41	125 °C	-40 C	Gold	1	Non Specified - Single Edge	Single	Female	0.25 Ám	10 Áin	Through Hole	Black	41	Copper Alloy	Cantilever	3.18 mm	0.125 in
EDAC Inc. 896-041-541-103	1	Polyphenylene Sulfide (PPS)	Wire Wrap	0.07 in 1.78 mm	0.054 in 1.37 mm	Floating Bobbin Flush Mount	41	125 °C	-40 C	Gold	1	Non Specified - Single Edge	Single	Female	0.25 Ám	10 Áin	Through Hole	Black	41	Copper Alloy	Cantilever	3.18 mm	0.125 in	0.116 "	2.95 mm
EDAC Inc. 896-041-558-108	1	Polyphenylene Sulfide (PPS)	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	4-40 Flush Mount Threaded Insert Top Opening	41	125 °C	-40 C	Gold	1	Non Specified - Single Edge	Single	Female	0.25 Ám	10 Áin	Right Angle Through Hole	Black	41	Copper Alloy	Cantilever	3.18 mm	0.125 in
EDAC Inc. 896-041-500-603	1	Polyphenylene Sulfide (PPS)	Solder Eyelet(s)	0.07 in 1.78 mm	0.054 in 1.37 mm	Floating Bobbin Top Mount Opening	41	125 °C	-40 C	Gold	1	Non Specified - Single Edge	Single	Female	0.25 Ám	10 Áin	Through Hole	Black	41	Copper Alloy	Cantilever	3.18 mm	0.125 in	0.116 "	2.95 mm
EDAC Inc. 896-041-558-612	1	Polyphenylene Sulfide (PPS)	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	Side Mount Opening Unthreaded	41	125 °C	-40 C	Gold	1	Non Specified - Single Edge	Single	Female	0.25 Ám	10 Áin	Right Angle Through Hole	Black	41	Copper Alloy	Cantilever	3.18 mm	0.125 in	0.128 "	3.25 mm
EDAC Inc. 896-041-558-604	1	Polyphenylene Sulfide (PPS)	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm		41	125 °C	-40 C	Gold	1	Non Specified - Single Edge	Single	Female	0.25 Ám	10 Áin	Right Angle Through Hole	Black	41	Copper Alloy	Cantilever	3.18 mm	0.125 in	0.156 "	3.96 mm
EDAC Inc. 896-041-541-112	1	Polyphenylene Sulfide (PPS)	Wire Wrap	0.07 in 1.78 mm	0.054 in 1.37 mm	Flush Mount Side Opening Unthreaded	41	125 °C	-40 C	Gold	1	Non Specified - Single Edge	Single	Female	0.25 Ám	10 Áin	Through Hole	Black	41	Copper Alloy	Cantilever	3.18 mm	0.125 in	0.128 "	3.25 mm
