53112 Series

Manufacturer: LAPP

Catalog

CABLE GLAND 16-25MM PG29 BRASS

Part	Thread Size	Includes	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]	Ingress Protection	Thread Length	Thread Length	Operating Temperature [Min]	Operating Temperature [Max]	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Type	Material	Color	Panel Hole Size	Panel Hole Size	Outside Cable Diameter (Min)	Outside Cable Diameter (Min)	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max)	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Panel Hole Size [x]	Panel Hole Size [x]	Thread Size
LAPP 53112260	PG29	O-Ring	0.63 in	16 mm	IP68 - Dust Tight Waterproof	0.315 "	8 mm	-40 C	100 °C	0.984 in	25 mm	Cable Gland	Brass Nickel Plated	Silver
LAPP 53112931	M32				IP68 - Dust Tight Waterproof	0.315 " 1.272 in	8 mm 32.31 mm	-40 C	100 °C	0.591 in	15 mm	Cable Gland	Polyamide (PA) Nylon	Black	1.272 in	32.3 mm	7 mm	0.276 in
LAPP 53112928	M32				IP68 - Dust Tight Waterproof	0.315 " 1.272 in	8 mm 32.31 mm	-40 C	100 °C	0.591 in	15 mm	Cable Gland	Polyamide (PA) Nylon	Gray	1.272 in	32.3 mm	7 mm	0.276 in

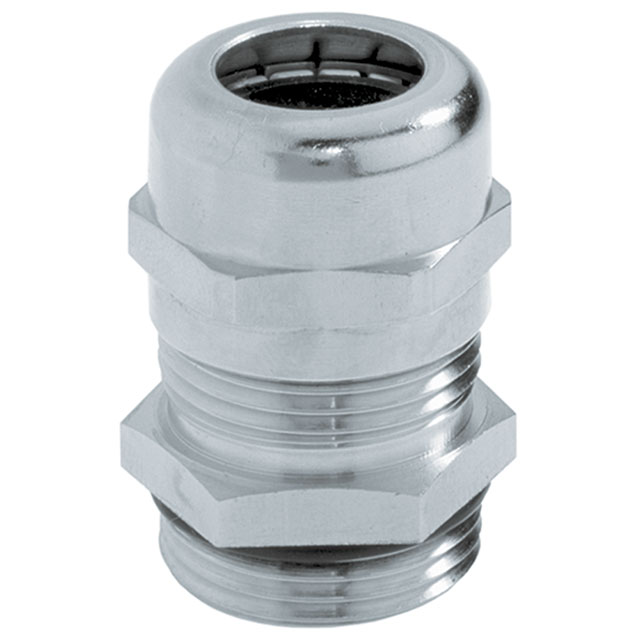

LAPP 53112040	M32x1.5	O-Ring	0.433 in		IP68/IP69 NEMA 1 4 6 12	0.354 in	9 mm	-40 C	100 °C			Cable Gland	Brass Nickel Plated	Silver			11 mm		0.827 in	21 mm
LAPP 53112100	M12x1.5	O-Ring			IP68/IP69 NEMA 1 4 6 12	0.256 in	6.5 mm	-40 C	100 °C			Cable Gland	Brass Nickel Plated	Silver					0.197 in	5 mm	0.078 in	1.98 mm
LAPP 53112120	M20x1.5	O-Ring			IP68/IP69 NEMA 1 4 6 12	0.315 "	8 mm	-40 C	100 °C	0.394 in	10 mm	Cable Gland	Brass Nickel Plated	Silver							0.197 in	5 mm
LAPP 53112130	M25x1.5	O-Ring			IP68/IP69 NEMA 1 4 6 12	0.315 "	8 mm	-40 C	100 °C	0.512 in	13 mm	Cable Gland	Brass Nickel Plated	Silver							0.236 in	6 mm

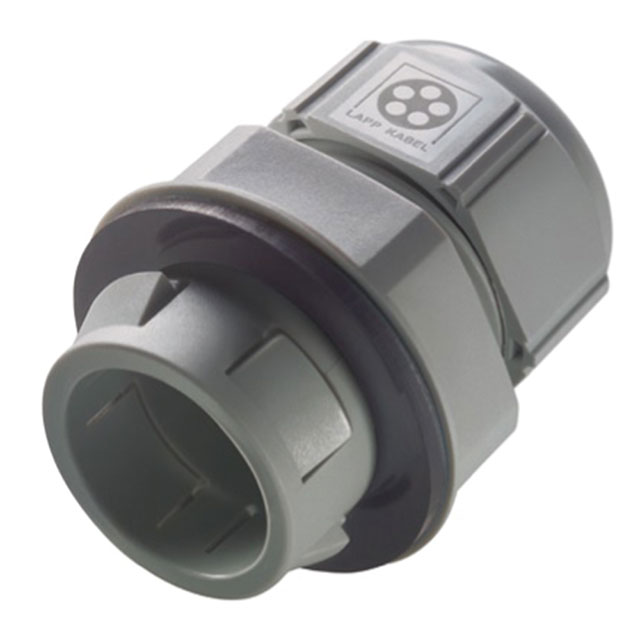

LAPP 53112927	M12				IP68 - Dust Tight Waterproof	0.484 in	12.29 mm	-40 C	100 °C			Cable Gland	Polyamide (PA) Nylon	Gray	0.484 in	12.3 mm			0.197 in	5 mm	0.139 in	3.52 mm
LAPP 53112886	M20				IP68 - Dust Tight Waterproof	0.799 in	20.3 mm	-40 C	100 °C	0.394 in	10 mm	Cable Gland	Polyamide (PA) Nylon	Black							0.197 in	5 mm	0.8 in	20.3 mm
LAPP 53112026		O-Ring			IP68 - Dust Tight Waterproof; NEMA 1 4X 6 12	0.591 in	15 mm	-40 C	100 °C	0.394 in	10 mm	Cable Gland	Brass Nickel Plated	Silver							0.197 in	5 mm			0.5
