C3AAS-4 Series

Catalog

IDC CABLE - CSC40S/AE40M/CSC40S

Part	Color	Connector Type	Number of Positions	Shielding	Length	Length	Length	Number of Rows [custom]	Pitch - Cable	Pitch - Cable	Pitch - Connector	Pitch - Connector	Contact Finish	Cable Termination	Contact Finish Thickness	Contact Finish Thickness	Length [x]	Length [x]

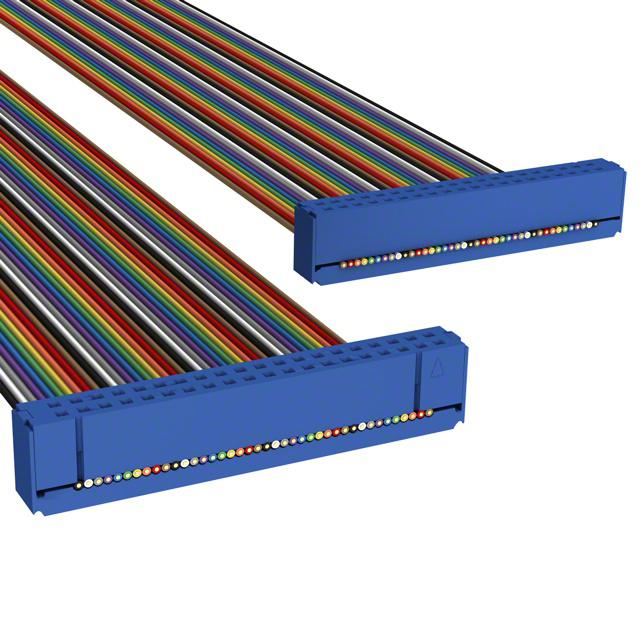

CW Industries C3AAS-4006M	Multiple Ribbon	Socket to Socket	40	Unshielded	152.4 mm	0.5 '	6 "	2	0.05 in	1.27 mm	0.1 in	2.54 mm	Tin	IDC	2.54 µm	100 µin

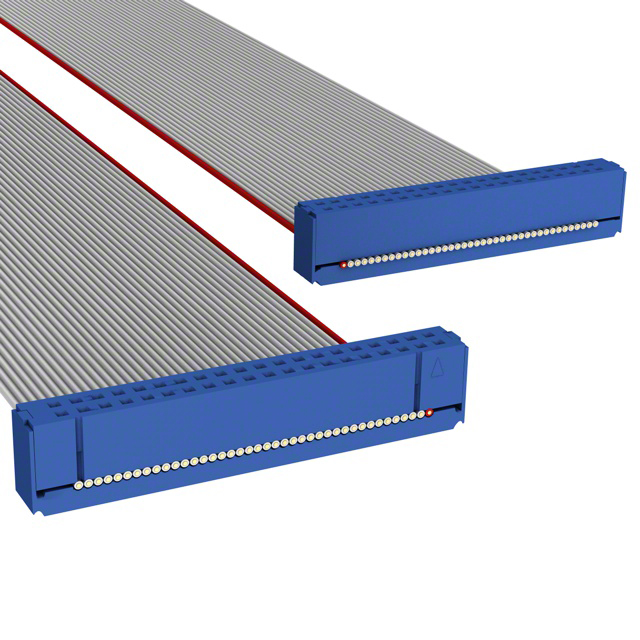

CW Industries C3AAS-4006G		Socket to Socket	40	Unshielded	152.4 mm	0.5 '	6 "	2	0.05 in	1.27 mm	0.1 in	2.54 mm	Tin	IDC	2.54 µm	100 µin
CW Industries C3AAS-4018G		Socket to Socket	40	Unshielded				2	0.05 in	1.27 mm	0.1 in	2.54 mm	Tin	IDC	2.54 µm	100 µin	457.2 mm	1.5 ft
CW Industries C3AAS-4018M	Multiple Ribbon	Socket to Socket	40	Unshielded				2	0.05 in	1.27 mm	0.1 in	2.54 mm	Tin	IDC	2.54 µm	100 µin	457.2 mm	1.5 ft
