9453-1083 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

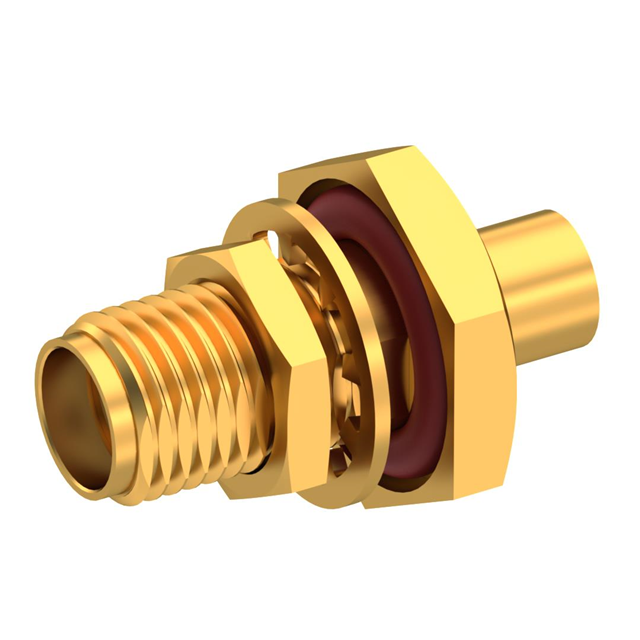

SMA F STR BHD SD .085
| Part | Mating Cycles | Dielectric Material | Voltage Rating | Includes | Body Finish | Body Material | Operating Temperature [Max] | Operating Temperature [Min] | Center Contact Plating | Mounting Feature | Housing Color | Frequency - Max [Max] | Shield Termination | Impedance | Fastening Type | Number of Ports | Center Contact Material | Connector Type | Contact Termination | Mounting Type | Connector Style | Cable Group |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | 500 | Polytetrafluoroethylene (PTFE) | 350 VDC | 1 Connector 1 Lockwasher 1 Nut | Gold | Stainless Steel | 105 ░C | -65 ░C | Gold | Bulkhead - Front Side Nut | Gold | 18 GHz | Solder | 50 Ohms | Threaded | 1 | Beryllium Copper | Female Socket Jack | Solder | Panel Mount | SMA | RG-405 (.085" Semi Rigid) |
 Radiall USA, Inc. | 500 | Polytetrafluoroethylene (PTFE) | 500 V | Gold | Stainless Steel | 105 ░C | -65 ░C | Gold | Bulkhead - Front Side Nut | Gold | 18 GHz | Solder | 50 Ohms | Threaded | 1 | Beryllium Copper | Female Socket Jack | Solder | Panel Mount | SMA |
