G31KAC Series
Manufacturer: ODU
Beta
⌘K

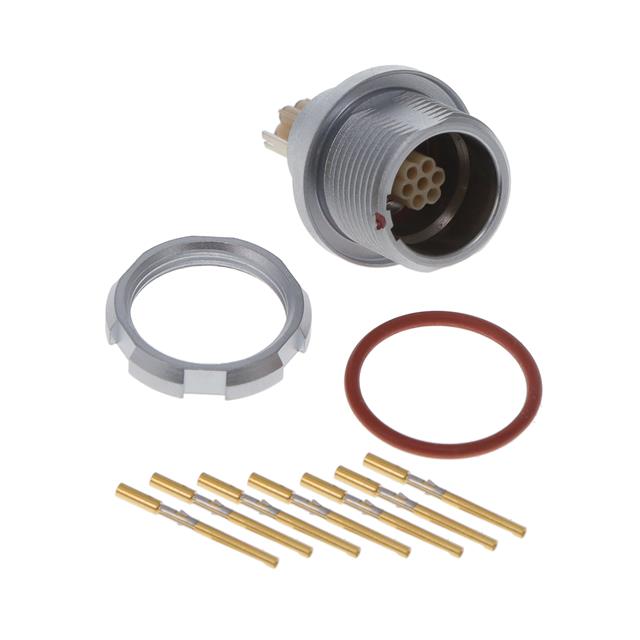

PANEL RECEPTACLE, STY GK, SER K,
| Part | Primary Material | Insert Material | Orientation | Voltage Rating | Shell Material | Contact Material | Mounting Feature | Mounting Type | Applications | Color | Connector Type | Contact Finish - Mating | Number of Positions | Ingress Protection | Features | Fastening Type | Current Rating (Amps) | Shell Size - Insert | Termination | Shell Finish | Shielding | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Metal | Polyetheretherketone (PEEK) | A | 36 VDC | Brass | Brass | Bulkhead - Front Side Nut | Panel Mount | Industrial Medical Military Testing Equipment & Measurement | Silver | Receptacle Female Sockets | Gold | 7 | IP68 - Dust Tight Waterproof | Medical (IEC 60601 (2 MOOP/2 MOPP)) | Push-Pull | 7.5 A | 1 | Crimp | Chrome over Nickel | Shielded | 120 °C | -40 C |
