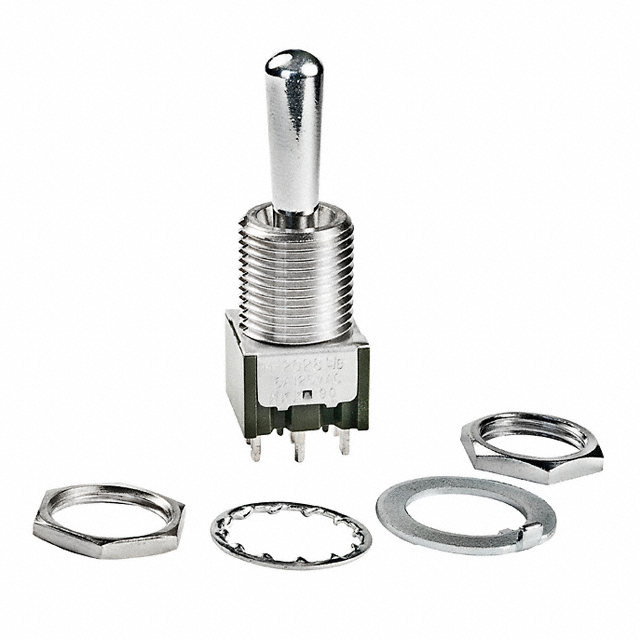

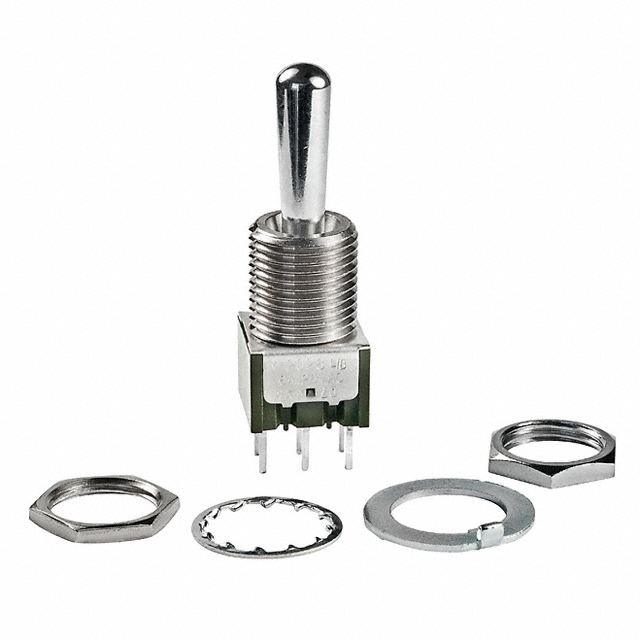

M2028B2 Series
Manufacturer: NKK Switches
Beta
⌘K
SWITCH TOGGLE DPDT 6A 125V
| Part | Actuator Material | Electrical Life | Illumination | Termination Style | Panel Cutout Dimensions [diameter] | Circuit | Features | Actuator Type | Voltage Rating - DC | Switch Function | Operating Temperature [Max] | Operating Temperature [Min] | Bushing Thread | Voltage Rating - AC | Mounting Type | Actuator Length [x] | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | Brass Chrome Plated | 25000 Steps | Non-Illuminated | PC Pin | 12.5 mm | DPDT | Epoxy Sealed Terminals | Standard Round | 30 V | Mom-Off-Mom | 85 °C | -30 ░C | M12 x 1 | 125 V | Panel Mount | 17.5 mm | 3 A 6 A |
 NKK Switches | Brass Chrome Plated | 50000 Cycles | Non-Illuminated | PC Pin | 12.5 mm | DPDT | Standard Round | 28 V | On-On | 85 °C | -30 ░C | M12 x 1 | 28 V | Panel Mount | 17.5 mm | 0.4 VA | |
 NKK Switches | Brass Chrome Plated | 25000 Steps | Non-Illuminated | Solder Lug | 12.5 mm | DPDT | Epoxy Sealed Terminals | Standard Round | 30 V | Mom-Off-Mom | 85 °C | -30 ░C | M12 x 1 | 125 V | Panel Mount | 17.5 mm | 3 A 6 A |
