714-43 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

Catalog

CONN IC DIP SOCKET 52POS GOLD

...

Part	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Housing Material	Features	Current Rating (Amps)	Contact Finish - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Pitch - Mating	Pitch - Mating	Pitch - Post	Pitch - Post	Contact Material - Post	Contact Material - Mating	Termination Post Length	Termination Post Length	Type	Type	Type	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Contact Finish - Mating	Number of Positions or Pins (Grid)	Contact Shape	Contact Material	Insulation Material	Number of Positions	Contact Type	Contact Length - Post	Contact Length - Post	Connector Type	Insulation Color	Number of Positions Loaded	Fastening Type	Number of Rows	Contact Length - Post [x]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Rows [custom]	Number of Positions or Pins (Grid) [custom]

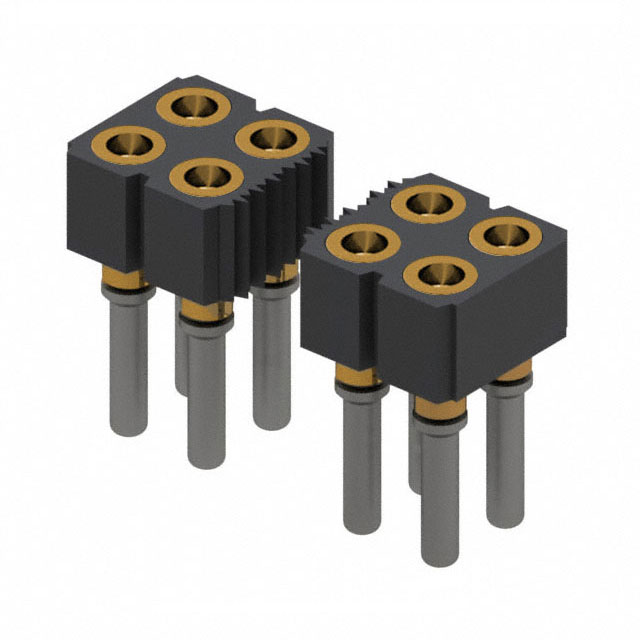

Mill-Max Manufacturing Corp. 714-43-252-31-018000	Through Hole	0.76 Ám	30 Áin	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Carrier Closed Frame	3 A	Gold	30 µin	0.76 µm	0.1 "	2.54 mm	0.1 in	2.54 mm	Brass Alloy	Beryllium Copper	4.32 mm	0.17 in	DIP	2.54 mm	0.1 in	-55 C	125 °C	Solder	Gold
Mill-Max Manufacturing Corp. 714-43-220-31-018000	Through Hole	0.76 Ám	30 Áin	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Carrier Closed Frame	3 A	Gold	30 µin	0.76 µm	0.1 "	2.54 mm	0.1 in	2.54 mm	Brass Alloy	Beryllium Copper	4.32 mm	0.17 in	DIP	2.54 mm	0.1 in	-55 C	125 °C	Solder	Gold	20
Mill-Max Manufacturing Corp. 714-43-113-31-007000	Through Hole	0.76 Ám	30 Áin		Carrier	3 A	Tin	200 µin	5.08 µm	0.1 "	2.54 mm										-55 C	125 °C	Solder	Gold		Circular	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	13	Female Socket	0.115 in	2.92 mm	Receptacle	Black	All	Push-Pull	1
Mill-Max Manufacturing Corp. 714-43-118-31-007000	Through Hole	0.76 Ám	30 Áin		Carrier	3 A	Tin	200 µin	5.08 µm	0.1 "	2.54 mm										-55 C	125 °C	Solder	Gold		Circular	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	18	Female Socket	0.115 in	2.92 mm	Receptacle	Black	All	Push-Pull	1
Mill-Max Manufacturing Corp. 714-43-161-41-001000	Through Hole	0.76 Ám	30 Áin		Carrier	3 A	Tin	200 µin	5.08 µm	0.1 "	2.54 mm										-55 C	125 °C	Solder	Gold		Circular	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	61	Female Socket		3.4 mm	Receptacle	Black	All	Push-Pull	1	0.134 "
Mill-Max Manufacturing Corp. 714-43-248-31-007000	Through Hole	0.76 Ám	30 Áin		Carrier	3 A	Tin	200 µin	5.08 µm	0.1 "	2.54 mm										-55 C	125 °C	Solder	Gold		Circular	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	48	Female Socket	0.115 in	2.92 mm	Receptacle	Black	All	Push-Pull			0.1 in	2.54 mm	2
Mill-Max Manufacturing Corp. 714-43-246-31-018000	Through Hole	0.76 Ám	30 Áin	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Carrier Closed Frame	3 A	Gold	30 µin	0.76 µm	0.1 "	2.54 mm	0.1 in	2.54 mm	Brass Alloy	Beryllium Copper	4.32 mm	0.17 in	DIP	2.54 mm	0.1 in	-55 C	125 °C	Solder	Gold	46																	2 x 23
Mill-Max Manufacturing Corp. 714-43-136-41-001000	Through Hole	0.76 Ám	30 Áin		Carrier	3 A	Tin	200 µin	5.08 µm	0.1 "	2.54 mm										-55 C	125 °C	Solder	Gold		Circular	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	36	Female Socket		3.4 mm	Receptacle	Black	All	Push-Pull	1	0.134 "
Mill-Max Manufacturing Corp. 714-43-103-31-007000	Through Hole	0.76 Ám	30 Áin		Carrier	3 A	Tin	200 µin	5.08 µm	0.1 "	2.54 mm										-55 C	125 °C	Solder	Gold		Circular	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester		Female Socket	0.115 in	2.92 mm	Receptacle	Black	All	Push-Pull	1
Mill-Max Manufacturing Corp. 714-43-145-31-012000	Through Hole	0.76 Ám	30 Áin		Carrier	3 A	Tin	200 µin	5.08 µm	0.1 "	2.54 mm										-55 C	125 °C	Solder	Gold		Circular	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	45	Female Socket	0.118 in	3 mm	Receptacle	Black	All	Push-Pull	1
