FSA1153 Series
Manufacturer: ON Semiconductor
Beta
⌘K

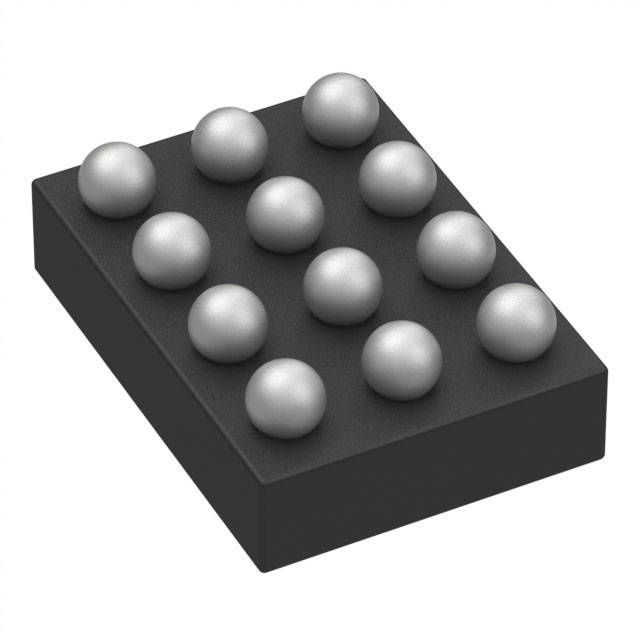

IC: ANALOG SWITCH; CH: 1; WLCSP12; 2.7÷5.5VDC; REEL,TAPE; OUT: DP3T
| Part | -3db Bandwidth | Mounting Type | Supplier Device Package | Channel Capacitance (CS(off), CD(off)) [custom] | Channel Capacitance (CS(off), CD(off)) [custom] | Multiplexer/Demultiplexer Circuit | Channel-to-Channel Matching (ΔRon) | Switch Circuit | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] | Number of Circuits | Crosstalk | Switch Time (Ton, Toff) (Max) [custom] | Switch Time (Ton, Toff) (Max) [custom] | Current - Leakage (IS(off)) (Max) [Max] | On-State Resistance (Max) [Max] | Voltage - Supply, Single (V+) [Max] | Voltage - Supply, Single (V+) [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ON Semiconductor | 500 MHz | Surface Mount | 12-WLCSP (1.41x1.575) | 2.5 pF | 7 pF | 3:1 | 200 mOhm | DP3T | 12-UFBGA WLCSP | 85 °C | -40 °C | 1 | -120 dB | 400 ns | 80 µs | 100 nA | 2 Ohm | 5.5 V | 2.7 V |
