52601 Series

Catalog

CONN HEADER VERT 34POS 2.54MM

...

Part	Number of Positions	Contact Shape	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Mounting Type	Pitch - Mating	Pitch - Mating	Shrouding	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Fastening Type	Number of Positions Loaded	Termination	Contact Type	Material Flammability Rating	Contact Length - Post [x]	Contact Length - Post [x]	Contact Length - Mating [x]	Contact Length - Mating	Insulation Height	Insulation Height	Contact Finish - Mating	Insulation Color	Connector Type	Contact Material	Number of Rows	Features	Style	Insulation Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Post	Number of Positions Loaded	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]
Amphenol ICC (FCI) 52601-G34-6	34	Square	2.54 mm	0.1 in	Through Hole	0.1 in	2.54 mm	Shrouded - 4 Wall	30 Áin	0.76 Ám	Push-Pull	All	Solder	Male Pin	UL94 V-0	0.15 in	3.81 mm	0.23 in	5.84 mm	0.365 in	9.27 mm	Gold or Gold GXT™	Black	Header	Phosphor Bronze	2	Keying Slot	Board to Board Cable	Thermoplastic
Amphenol ICC (FCI) 52601-G44-8TLF	44	Square	2.54 mm	0.1 in	Surface Mount	0.1 in	2.54 mm	Shrouded - 4 Wall	30 Áin	0.76 Ám	Push-Pull	All	Solder	Male Pin	UL94 V-0			0.23 in	5.84 mm	0.365 in	9.27 mm	Gold or Gold GXT™	Black	Header	Phosphor Bronze	2	Pick and Place	Board to Board Cable		2.54 µm	100 µin	Tin
Amphenol ICC (FCI) 52601-G60-6	60	Square	2.54 mm	0.1 in	Through Hole	0.1 in	2.54 mm	Shrouded - 4 Wall	30 Áin	0.76 Ám	Push-Pull	All	Solder	Male Pin	UL94 V-0	0.15 in	3.81 mm	0.23 in	5.84 mm	0.365 in	9.27 mm	Gold or Gold GXT™	Black	Header	Phosphor Bronze	2	Keying Slot	Board to Board Cable	Thermoplastic
Amphenol ICC (FCI) 52601-S10-80714TLF	10	Square	2.54 mm	0.1 in	Surface Mount	0.1 in	2.54 mm	Shrouded - 4 Wall	15 µin	0.38 µm	Push-Pull		Solder	Male Pin	UL94 V-0			0.23 in	5.84 mm	0.365 in	9.27 mm	Gold or Gold GXT™	Black	Header	Phosphor Bronze	2	Pick and Place	Board to Board Cable		2.54 µm	100 µin	Tin	29

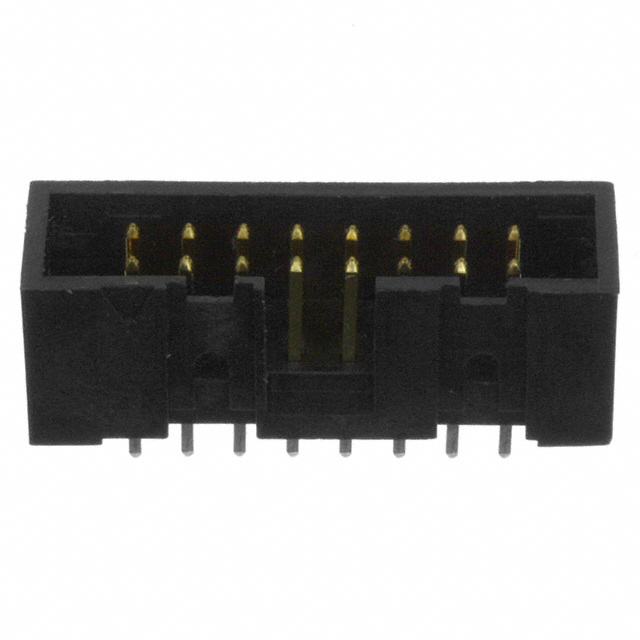

Amphenol ICC (FCI) 52601-S16-4LF		Square	2.54 mm	0.1 in	Through Hole	0.1 in	2.54 mm	Shrouded - 4 Wall	15 µin	0.38 µm	Push-Pull	All	Solder	Male Pin	UL94 V-0	0.12 in	3.05 mm	0.23 in	5.84 mm	0.365 in	9.27 mm	Gold or Gold GXT™	Black	Header	Phosphor Bronze	2	Keying Slot	Board to Board Cable	Thermoplastic	2.54 µm	100 µin	Tin		16
Amphenol ICC (FCI) 52601-G50-8TLF	50	Square	2.54 mm	0.1 in	Surface Mount	0.1 in	2.54 mm	Shrouded - 4 Wall	30 Áin	0.76 Ám	Push-Pull	All	Solder	Male Pin	UL94 V-0			0.23 in	5.84 mm	0.365 in	9.27 mm	Gold or Gold GXT™	Black	Header	Phosphor Bronze	2	Pick and Place	Board to Board Cable				Tin
Amphenol ICC (FCI) 52601-S20-8	20	Square	2.54 mm	0.1 in	Surface Mount	0.1 in	2.54 mm	Shrouded - 4 Wall	15 µin	0.38 µm	Push-Pull	All	Solder	Male Pin	UL94 V-0			0.23 in	5.84 mm	0.365 in	9.27 mm	Gold or Gold GXT™	Black	Header	Phosphor Bronze	2		Board to Board Cable		2.54 µm	100 µin	Tin			-65 ░C	105 ░C

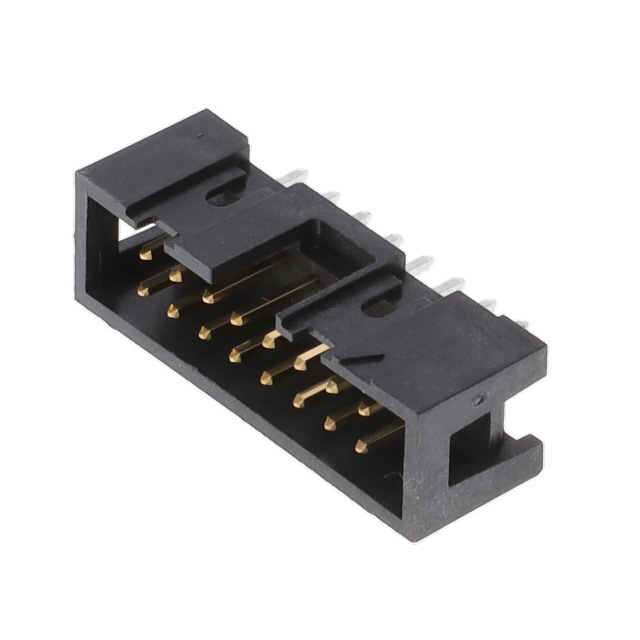

Amphenol ICC (FCI) 52601-G16-4LF		Square	2.54 mm	0.1 in	Through Hole	0.1 in	2.54 mm	Shrouded - 4 Wall	30 Áin	0.76 Ám	Push-Pull	All	Solder	Male Pin	UL94 V-0	0.12 in	3.05 mm	0.23 in	5.84 mm	0.365 in	9.27 mm	Gold or Gold GXT™	Black	Header	Phosphor Bronze	2	Keying Slot	Board to Board Cable	Thermoplastic	2.54 µm	100 µin	Tin		16
Amphenol ICC (FCI) 52601-G50-4R	50	Square	2.54 mm	0.1 in	Through Hole	0.1 in	2.54 mm	Shrouded - 4 Wall	30 Áin	0.76 Ám	Push-Pull	All	Press-Fit Solder	Male Pin	UL94 V-0	0.12 in	3.05 mm	0.23 in	5.84 mm	0.365 in	9.27 mm	Gold or Gold GXT™	Black	Header	Phosphor Bronze	2	Keying Slot	Board to Board Cable	Thermoplastic
Amphenol ICC (FCI) 52601-G34-8	34	Square	2.54 mm	0.1 in	Surface Mount	0.1 in	2.54 mm	Shrouded - 4 Wall	30 Áin	0.76 Ám	Push-Pull	All	Solder	Male Pin	UL94 V-0			0.23 in	5.84 mm	0.365 in	9.27 mm	Gold or Gold GXT™	Black	Header	Phosphor Bronze	2		Board to Board Cable		2.54 µm	100 µin	Tin			-65 ░C	105 ░C
