HT 1/8 Series

Catalog

SPIRAL WRAP 0.061" X 100' NAT

Part	Features	Operating Temperature [Max]	Operating Temperature [Min]	Length	Length	Wall Thickness	Wall Thickness	Material	Diameter - Inside, Expanded [diameter]	Diameter - Inside, Expanded [diameter]	Diameter - Outside, Non-Expanded [diameter]	Diameter - Outside, Non-Expanded [diameter]	Type Attributes	Color	Type	Abrasion Protection	Diameter - Inside, Non-Expanded [diameter]	Diameter - Inside, Non-Expanded [diameter]	Heat Protection	Environment Protection [custom]	Material Flammability Rating	Wall Thickness [custom]

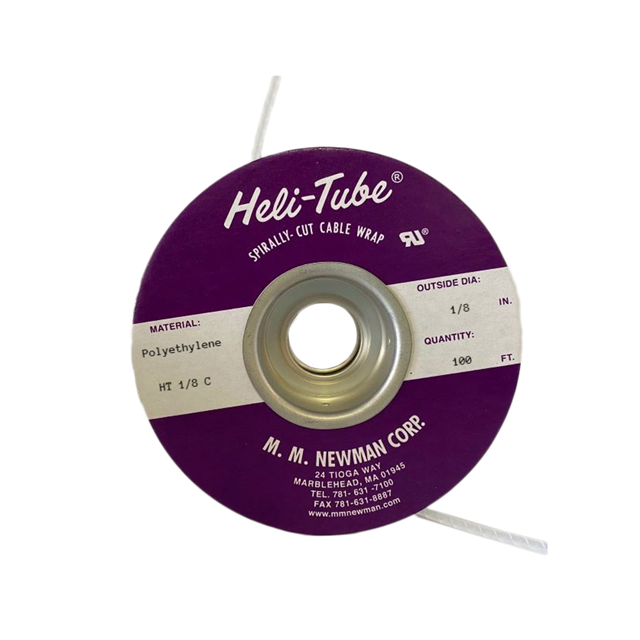

MM Newman Corporation HT 1/8 C	Chemical Resistant Solvent Resistant	88 °C	-60 °C	100 '	30.48 m	0.032 in	0.81 mm	Polyethylene (PE)	12.7 mm	0.5 in	0.125 in	3.18 mm	Harness	Natural	Spiral Wrap	Abrasion Resistant	1.55 mm	0.061 in

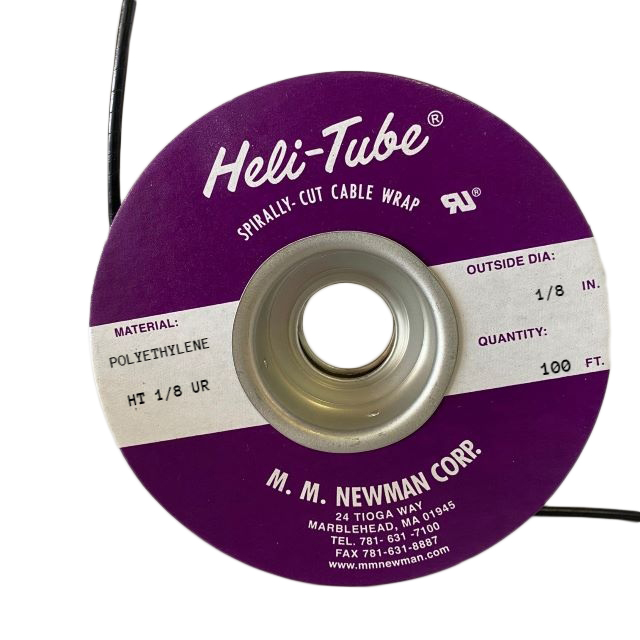

MM Newman Corporation HT 1/8 UR	Chemical Resistant Solvent Resistant	88 °C	-60 °C	100 '	30.48 m	0.032 in	0.81 mm	Polyethylene (PE)	12.7 mm	0.5 in	0.125 in	3.18 mm	Harness	Black	Spiral Wrap	Abrasion Resistant	1.55 mm	0.061 in
MM Newman Corporation HT 1/8 T2	Chemical Resistant Solvent Resistant	260 °C	-268 °C	100 '	30.48 m	0.02 in	0.51 mm	Polytetrafluoroethylene (PTFE)	12.7 mm	0.5 in	0.125 in	3.18 mm	Harness	Natural	Spiral Wrap	Abrasion Resistant	1.65 mm	0.065 in	Fire Resistant	UV Resistant	UL VW-1 UL94 V-0

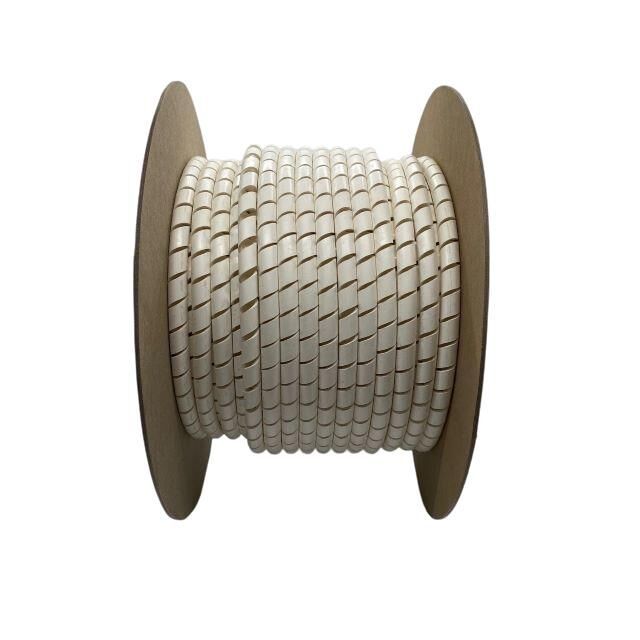

MM Newman Corporation HT 1/8 R	Chemical Resistant Solvent Resistant	80 °C	-20 ░C	100 '	30.48 m	0.032 in	0.81 mm	Polyethylene (PE)	12.7 mm	0.5 in	0.125 in	3.18 mm	Harness	White	Spiral Wrap	Abrasion Resistant	1.55 mm	0.061 in	Fire Resistant		UL1441 UL94 V-2
MM Newman Corporation HT 1/8 N	Chemical Resistant Self Extinguishing Solvent Resistant	121 C	-40 C	100 '	30.48 m	0.015 in	0.38 mm	Nylon	12.7 mm	0.5 in	0.125 in	3.18 mm	Harness	Natural	Spiral Wrap	Abrasion Resistant	2.41 mm	0.095 in
MM Newman Corporation HT 1/8 T1	Chemical Resistant Solvent Resistant	260 °C	-268 °C	100 '	30.48 m		0.76 mm	Polytetrafluoroethylene (PTFE)	12.7 mm	0.5 in	0.125 in	3.18 mm	Harness	Natural	Spiral Wrap	Abrasion Resistant	2.16 mm	0.085 in	Fire Resistant	UV Resistant	UL VW-1 UL94 V-0	0.03 "
MM Newman Corporation HT 1/8 R-B	Chemical Resistant Solvent Resistant	80 °C	-20 ░C	100 '	30.48 m	0.032 in	0.81 mm	Polyethylene (PE)	12.7 mm	0.5 in	0.125 in	3.18 mm	Harness	Black	Spiral Wrap	Abrasion Resistant	1.55 mm	0.061 in	Fire Resistant		UL1441 UL94 V-2
