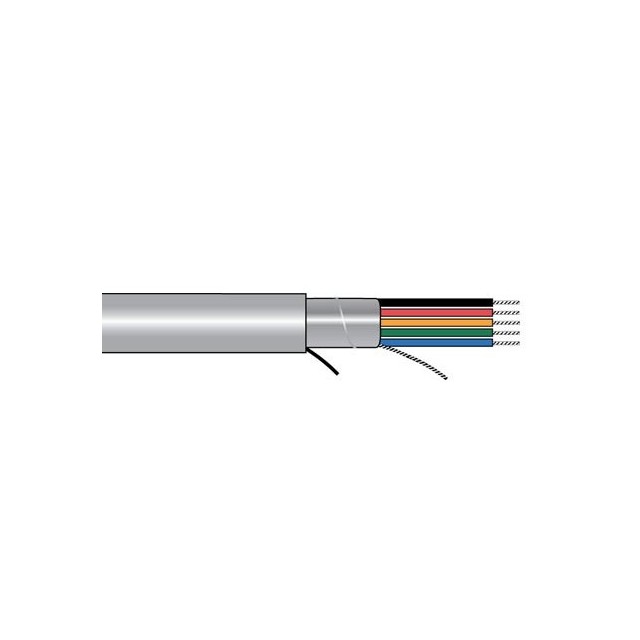

58126 Series
Manufacturer: ALPHA WIRE
Beta
⌘K
MULTICONDUCTOR CABLE, PLENUM, SHIELDED, 6 CONDUCTOR, 20 AWG, 1000 FT, 304.8 M
| Part | Shield Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket Color | Operating Temperature [Max] | Operating Temperature [Min] | Length | Length | Features | Cable Type | Conductor Strand [custom] | Conductor Strand [diameter] | Shield Coverage | Shield Type | Conductor Material | Wire Gauge | Number of Conductors | Conductor Insulation | Jacket (Insulation) Material | Voltage | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Aluminum | 0.0154 in | 0.39 mm | 4.85 mm | 0.191 in | Slate | 75 ░C | -5 °C | 1000 ft | 304.8 m | Drain Wire | Multi-Conductor | 7 | 0.0121 in | 100 % | Foil | Copper Bare | 20 AWG | 6 | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) | 300 V | ||
ALPHA WIRE | Aluminum | 0.0154 in | 0.39 mm | 4.85 mm | 0.191 in | Slate | 75 ░C | -5 °C | Drain Wire | Multi-Conductor | 7 | 0.0121 in | 100 % | Foil | Copper Bare | 20 AWG | 6 | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) | 300 V | 500 ' | 152.4 m |
