2005-1541 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

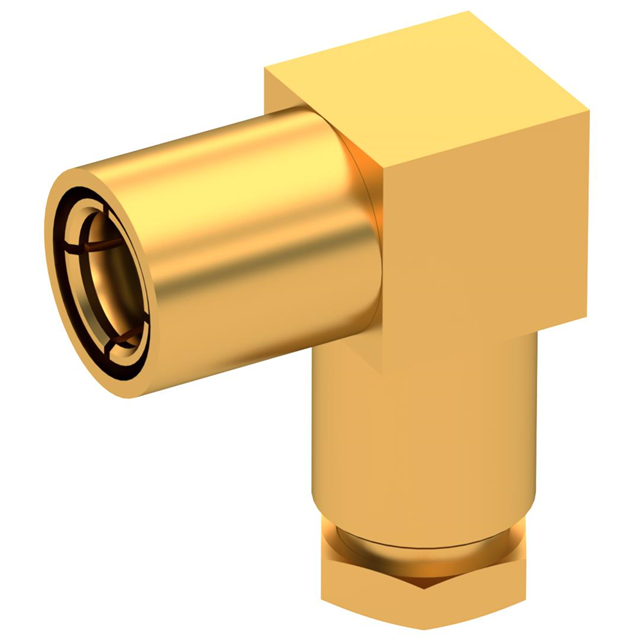

SMB F RA SDCL .086
| Part | Dielectric Material | Mating Cycles | Voltage Rating | Body Material | Center Contact Plating | Operating Temperature [Max] | Operating Temperature [Min] | Body Finish | Housing Color | Center Contact Material | Number of Ports | Cable Group | Connector Style | Contact Termination | Fastening Type | Mounting Type | Frequency - Max [Max] | Impedance | Connector Type | Shield Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | 500 | 335 V | Brass | Gold | 105 ░C | -65 ░C | Gold | Gold | Beryllium Copper | 1 | RG-405 (.085" Semi Rigid) | SMB | Solder | Snap-On | Free Hanging (In-Line) Right Angle | 4 GHz | 50 Ohms | Female Socket Plug | Clamp |
